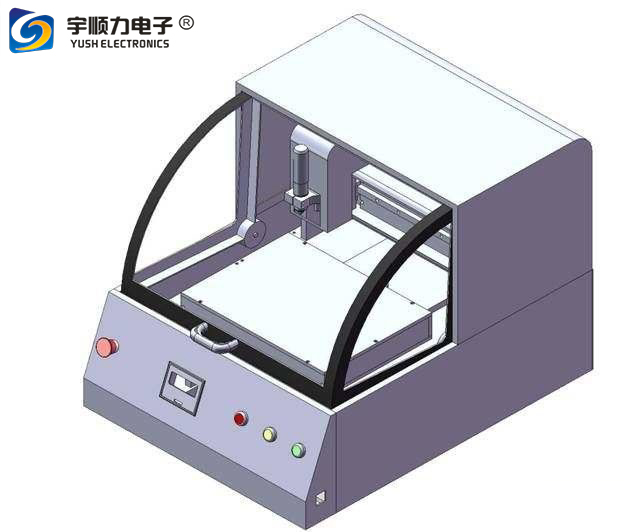

Desktop PCB Router machine Features:

1. Desktop single table cutting machine, the speed of up to 100mm / s, positioning speed 500mm / s.
2. High-quality shaft system allows the system to quickly increase and decrease, reduce the same period of time, improve productivity, while maintaining high accuracy.
3. Use high-quality hardware to ensure high rigidity and high performance.
4. All leadscrews are covered to prevent dust and dirt from entering, improving the life and performance of the shaft.
5. To avoid the artificial flap caused by the crack and parts damage and other issues.
6. Avoid the use of punch or fold, the mechanical stress generated by the problem.
7. Suitable for cutting of finished arc and wire.
8. Suitable for small multi-pull cutting, such as mobile phone substrate, PDA, PC interface card.

Technical parameters

1. Drive system motor: stepper motor

2. Spindle speed: 60000r / m

3. Cutting performance: 500mm / s

4. Drive system repeatability: ± 0.02mm

5. Cutting speed: maximum 100mm / s depends on the circuit board material and cutting quality

6. Resolution: ± 0.01mm

7. Configuration: X, Y, Z three-axis, travel: 400X400X100mm, travel can also be customized.

8. Repeatability: <0.1mm, for contours of lines and curves

9. Board positioning: special or standard fixture

10. loading and unloading methods: manual way

11. Board thickness: 0.4mm-4mm

12. Safety settings: machine emergency stop switch, spindle emergency stop switch, spindle motor overheat and servo motor overload detection

13. Spindle motor:Power: 0.3 kW Maximum speed: 60000 r / min Cooling method: air-cooled

14. Machine size: 760 * 620 * 700mm

15. Weight: 85KG

16.CCD and monitor optional

17. Programming: keypad input teaching

18. Data storage capacity: 100-200 group of documents

19. Control: microcomputer control, online programming, CAD file import

20. Transmission: rail + screw (Taiwan)

21. Vacuum cleaner: 1.5KW, 220V; Size: 710 * 390 * 680mm; 24 hours continuous work

22. Vacuum way: under the vacuum

23. Safety measures: equipped with protective cover

YUSH Electronic Technology Co.,Ltd  was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
