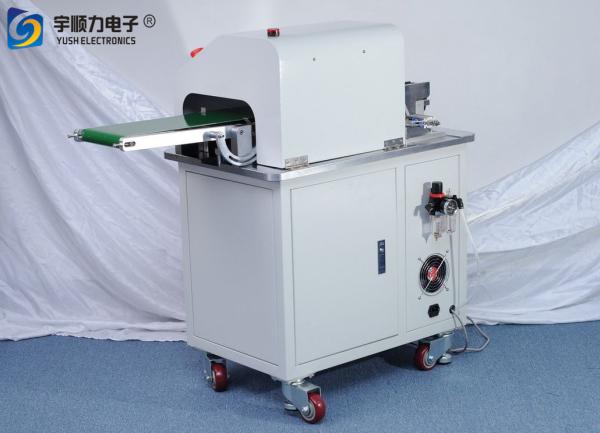

Low Cut Stress PCB Depaneling Machine , Adjustable Speed PCB Depanelizer

1. Application: PCB board with a variety of length ≥100mm V-CUT groove.

2. Circuit boards can be cut length: infinite

3. Cutting speed: Max 28M / Min adjustable speed

4. Minimum cutting width: 8mm

5. Maximum cutting width 200mm Joint board

6. V-CUT groove joints distance must be greater than 1.5mm

Element height limit: 15mm

Specifications: Power: 250W

Input voltage: AC220V 50Hz

Weight: 120KG

Host Dimensions: (L) 2600 * (W) 580mm * (H) 980mm

Platform length: 1.2M

Conveyor Length: 1.2M

YUSH Electronic Technology Co.,Ltd  was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
