YUSH COB pcb depaneling

Features:

Using the latest gas-electric lightweight design, high-tech feeding facilities, without manual operation, continuous shear stress-free cutting board complete itinerary, especially for cutting precision SMD or sheet. Bow wave generated when no round knife type sub-board (BOW WAVES) and micro-cracks (MICRO CRACK), using the wedge tool linear scoreboard, shear stress to a minimum.

1. The crop was 1 second / 1 split, controlled by pneumatic foot pedal switch;

2. The high-tech feeding facilities, without manual operation;

3. The use of microcomputer technology, the program can automatically control the cutting times and cutting stroke;

4. Non-rollers (round knife, take the knife) formula cut, no dust phenomenon, no motor, no carbon dust pollution.

5. Non-friction cutting, no tool metal residues;

6. Use the blade up to 300,000 / time;

7. The high-speed tool steel imported from Germany, Taiwan large-scale professional tool factory customization;

8. 4-5KG Pneumatic without specific cutting sites; appearance to the anti-rust oil wipe maintenance;

9. With automatic counting function;

10. Easy to use, the general staff can be operated by a simple guide.

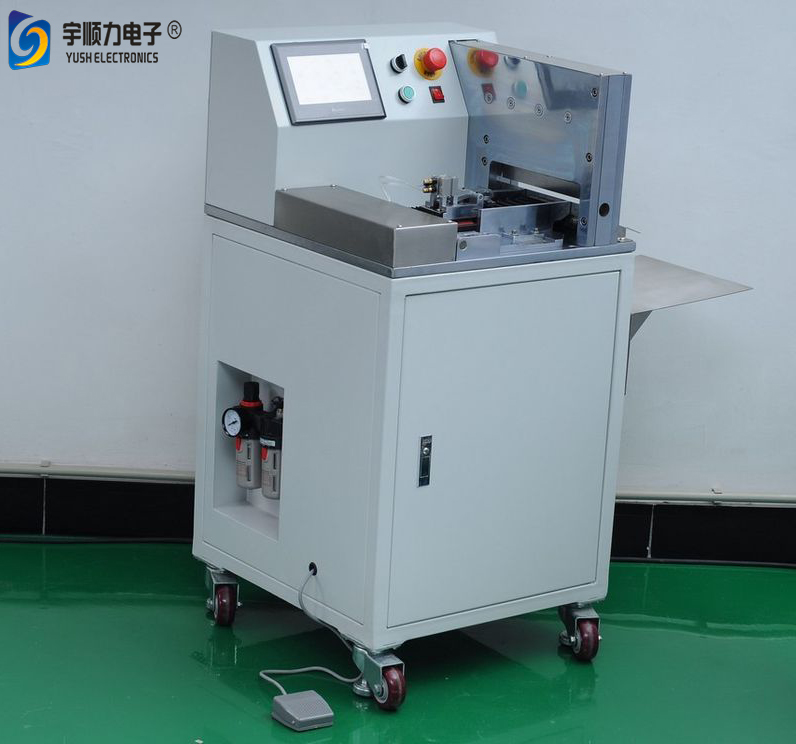

COB pcb depaneling equipment parameters:

Model: YSVC-2LL

Machine Specification: 428 × 508 × 912mm

Scoreboard Thickness: 0.8-3.5mm

Scoreboard speed: 0-1000mm / s

The maximum score board length: 20cm

Voltage: 220VAC

Weight: 120kg

Split Sheet: cob light source substrate, bulb LED aluminum plate / ceramic plate, where a V-CUT of SMD PCB board all suitable for this machine

YUSH Electronic Technology Co.,Ltd  was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
