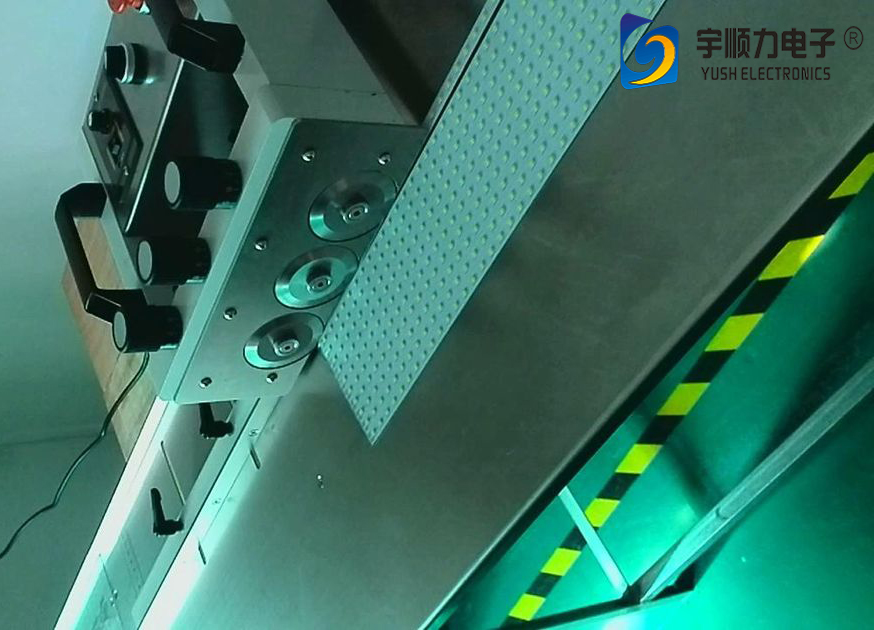

PCB V Scoring Machine . PCB v-cut depaneling machine supplier,Circular blade moving pcb separator

Model: YSVC-3S

1. Because cutting force of the blade is small. And blade made of SKD61 high speed steel material which is imported from the Germany. durability of the blade greatly improved, and the lifetime can be one year or more when cutting the aluminum board.

2. Circular knife can turn mill reoccupy many times, the shape of cutter can be customized.

3. X, Y axis can free adjustment and make the cutting accuracy to the highest.

4. With unique cutting method, the circuit board is cut by six blades.

5. It is a group composed of one upper and one lower blade, and is also a cutting unit.

6. There are A, B, C, three groups. The whole cutting process is divided into three stages from group A blade which cut 20% board then to the group B blade knife cut through groove cutting by group A to complete another 40% .the last 40% is cut by group C blade.

7. Because each cutting volume is small, the stress produced during the cutting progress declined by more than 80% compared with the traditional cut off at a time.

8. Thus the edge of the board and its surface are very smooth without warping.

9. Currently, it is the only machine that can guarantee the aluminum plate without deformation after cutting.

10. because of the multiple cutting, cutting process is very smooth and greatly improves the capability of position of V-CUT groove.

YUSH Electronic Technology Co.,Ltd  was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
