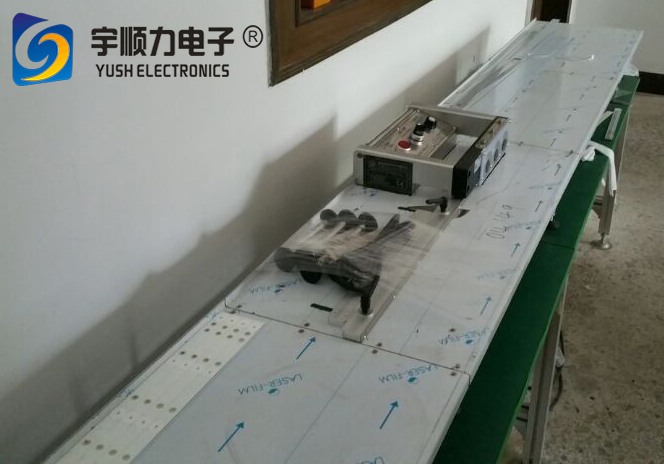

    Long Length Model Pcb Separator Double - Frequency Laser Interference

    Ask Lasest Price
    Brand Name : yushli
    Model Number : YSVC-3S
    Certification : CE
    Price : usd 1500
    Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100
    • Product Details
    • Company Profile

    Long Length Model Pcb Separator Double - Frequency Laser Interference

    high speed PCB depaneling machine ,china v-cut pcb depaneling machine ,pcb v-cut machine


    YSVC-3S secification p

    cb separator machine pcb separator machine

    Machine Size40*40*34 cm
    Platform size150*27*20 cm
    The Longest MinimizeNo limited
    Minimize Speed0-400mm/s
    Minimize thickness0.8-3.0mm
    Machine Weight45Kg

    Machine Parameters


    1. Material of blade :SKH7 HSS

    2. Power supply: 220V/50HZ 40W

    3. Operating temperature: 10~35℃

    4. Can cut LED panel, fiberboard, aluminum board , FR4

    5. Size: 540mm(L)*280mm(W)*240mm(H)

    6. Weight: 40kg

    7. Storage temperature: -20℃~50℃

    8. Maximum length of the board: unlimited

    9. Thickness:0.6~3mm

    10. Feed pcb Speed:80, 120, 200, 300mm/s



    Advantages


    1. It is quite suitable for aluminum board.

    2. It can cut the board without warping.

    3. The stress is very low when cut board.


    Features

    1. For cutting any length v cut pcb, aluminum pcb, fiber board, FR4, LED pcb, pcba.

    2. Threee pair of blades can guarantee the aluminum plate without deformation and damage after cutting.

    3. Due to three times cutting, cutting process is smooth and can locate v cut very well to avoid v-cut jumping out.

    4. High quality blade and samll cutting force ensures long life of blade.

    5. Blades are calibrated by Excitation double-frequency laser interference measurement instrument, which can ensure rear and front blades cut same places of the v cut. Perfect cutting effect.


    Product Tags:

    v scoring machine



    pcb depanelizer


    Quality Long Length Model Pcb Separator Double - Frequency Laser Interference for sale
