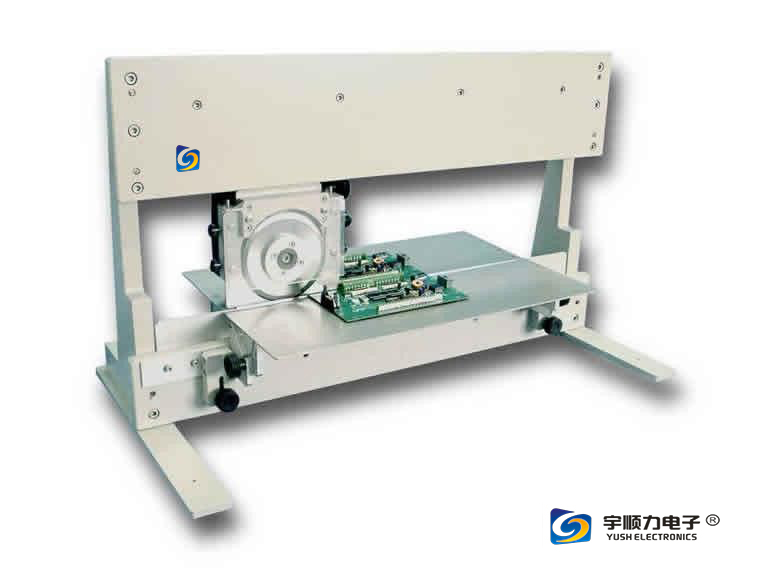

Manual Aluminum Composite Panel PCB separator Machine 400*780*480mm

1. PCB Protection

2. Calibration Blade Setting

3. All Speed Control By Human

4. More Accurating

PCB separator Specification:

PCB separator equipment Detailed Product Description:

1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.

2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job. Dedicated to high strength cutting, and excellent toughness, able to cut metal board .

PCB separator Technical characteristics:

1. Structural precision, the load evenly, to eliminate internal stress

2. Safe, easy to operate

3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)

PCB separator Feature:

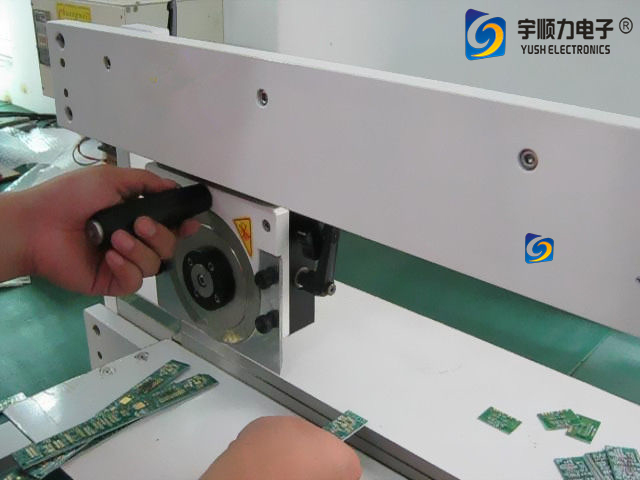

1. Round knife, manually cutting against lower linear knife, for reduced stress .

2. Separate pre-scored PCB assembly without stress on either PCB or component .

3. One touch programming of cut length with digital display .

4. Separating speed is adjusted by a rotary knob .

5. Handle Intermittent scoring or cut-outs .

6. Board with projected component can be cut precisely .

7. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable .

8. Optional PCB conveyor belt to remove finished board .

9. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out .

YUSH Electronic Technology Co.,Ltd  was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
