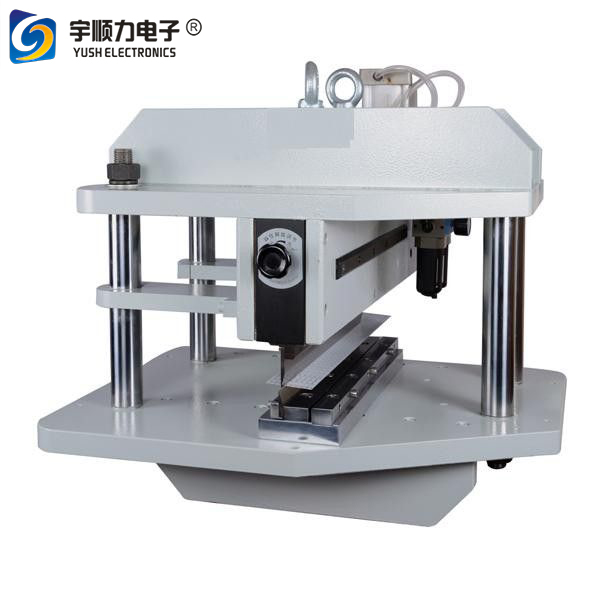

Pneumatic Driven PCB Depaneling Machine for LED strip / Copper PCB

V-CUT PCB Cutting machine:

1. Nice for shearing v cut metal board,Aluminium PCB,LED strip,Copper PCB etc.
2. Shear rigid and thick board fluently.
3. Use pneumatic-driven and electromagnetic valve to operate.

V-CUT PCB shearing machine specifications:

V-CUT PCB Cutting machine:

Model YSVC-450

Linear Blades length 450mm(Can custom made)
Material of blades high speed steel
Max.PCB shearing length unlimted
PCB shearing thickness 0.3-3.5mm
Voltage and Power 110V/220V -- 10W
Working air pressure 0.5-0.7Mpa
PCB shearing speed due to operator skilled level
PCB shearing machine size 900*760*750
PCB shearing machine weight 475kg

V-CUT PCB Cutting machine features:

1. New style rigid machine structure design,shear any length rigid and thick metal board more safely and easily.
2. Shear long boards directly,without turning PCB direction.
3. Shear process without vibrations due to pneumatic drive unit.
4. Shearing PCB without bending and tension stress.
5. PCB control operation is that operator stamps the foot pedal to shear PCB.
6. Highest components near the v groove of PCB can be up to 50mm.
7. Gap for insertion of PCB can be easy to adjust.

YUSH Electronic Technology Co.,Ltd  was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
