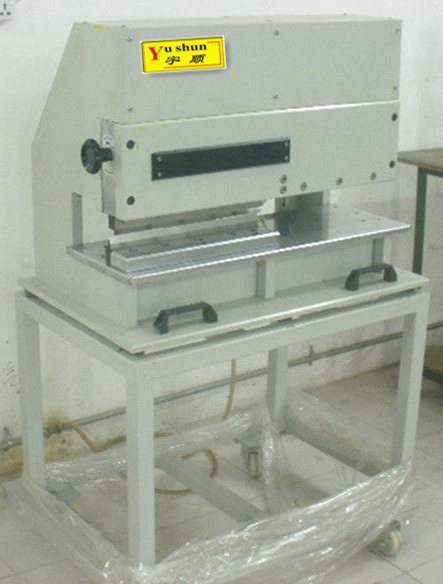

Pneumatic PCB Separator V Cut Metal PCB Board Assembly

1. Motorized Linear Blade Depanelizer ( YSVC-3)

2. Shears boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors

3. Operator foolproof! Panels cannot be inserted into the knives except on the score line

4. Pneumatically driven

5. Handles high components up to 1"

6. Bow waves that can occur with round knives are avoided

7. Easy adjusting of distance between knives

V-cut PCB separator Specification:

V-cut PCB separator Scope of application :

1. Cut any length metal board more safety and easily.

2. Separates long boards directly,without turn direction .

3. Separates boards up to 2.0mm thick Metal Board

4. Shears boards safely with parts as close as 1 mm to the score line,including ceramic capacitors

5. Operator foolproof! Panels cannot be inserted into the knives except on the score line

6. Handles high components up to50mm

7. Bow waves that can occur with round knives are avoided

8. Easy adjusting of distance between knives

V-cut PCB separator

1. Max. PCB depaneling length is unlimted

2. Depaneling PCB without bending and tension stress

3. Safety use, easy operation

4. Depaneling process without vibrations

V-cut PCB separator Features:

1. The machine was designed to depanel pre-scored PCB carefully, without bending and tension stress.

2. Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the depaneling process, or thin board even to 0.3mm can be worked safely.

3. Depaneling process without vibrations

4. PCB depaneling control method is by pneumatic-driven and electromagnetic valve

5. PCB control operation is that operator stamps the foot pedal to depanel PCB

6. Highest components near the v groove of PCB can be up to 50mm

7. Gap for insertion of PCB can be easy to adjust Optional Information

YUSH Electronic Technology Co.,Ltd  was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
