    PC Control Automatic Visual PCB Solder Paste Printer For LED Lighting Products

    Ask Lasest Price
    Brand Name : YSL
    Model Number : YSL- L15
    Certification : CE
    • Product Details
    • Company Profile

    PC Control Automatic Visual PCB Solder Paste Printer For LED Lighting Products

    LED lighting products Fully Automatic Visual Solder Paste Printer -YSLL15


    product technical points :


    ● Humanized design
    ● First choice for producting lens/ LED lighting products
    ● Unique sprinkler automatic cleaning system
    ● Efficient energy-saving wiping paper-saving structure
    ● Unique image processing system
    ● Intelligent printing production mode
    ● Printing range: 1500*350mm
    ● Machine dimension range: 2500X1200X1500mm

    PC Control Automatic Visual PCB Solder Paste Printer For LED Lighting ProductsPC Control Automatic Visual PCB Solder Paste Printer For LED Lighting ProductsPC Control Automatic Visual PCB Solder Paste Printer For LED Lighting ProductsPC Control Automatic Visual PCB Solder Paste Printer For LED Lighting ProductsPC Control Automatic Visual PCB Solder Paste Printer For LED Lighting ProductsPC Control Automatic Visual PCB Solder Paste Printer For LED Lighting ProductsPC Control Automatic Visual PCB Solder Paste Printer For LED Lighting ProductsPC Control Automatic Visual PCB Solder Paste Printer For LED Lighting Products

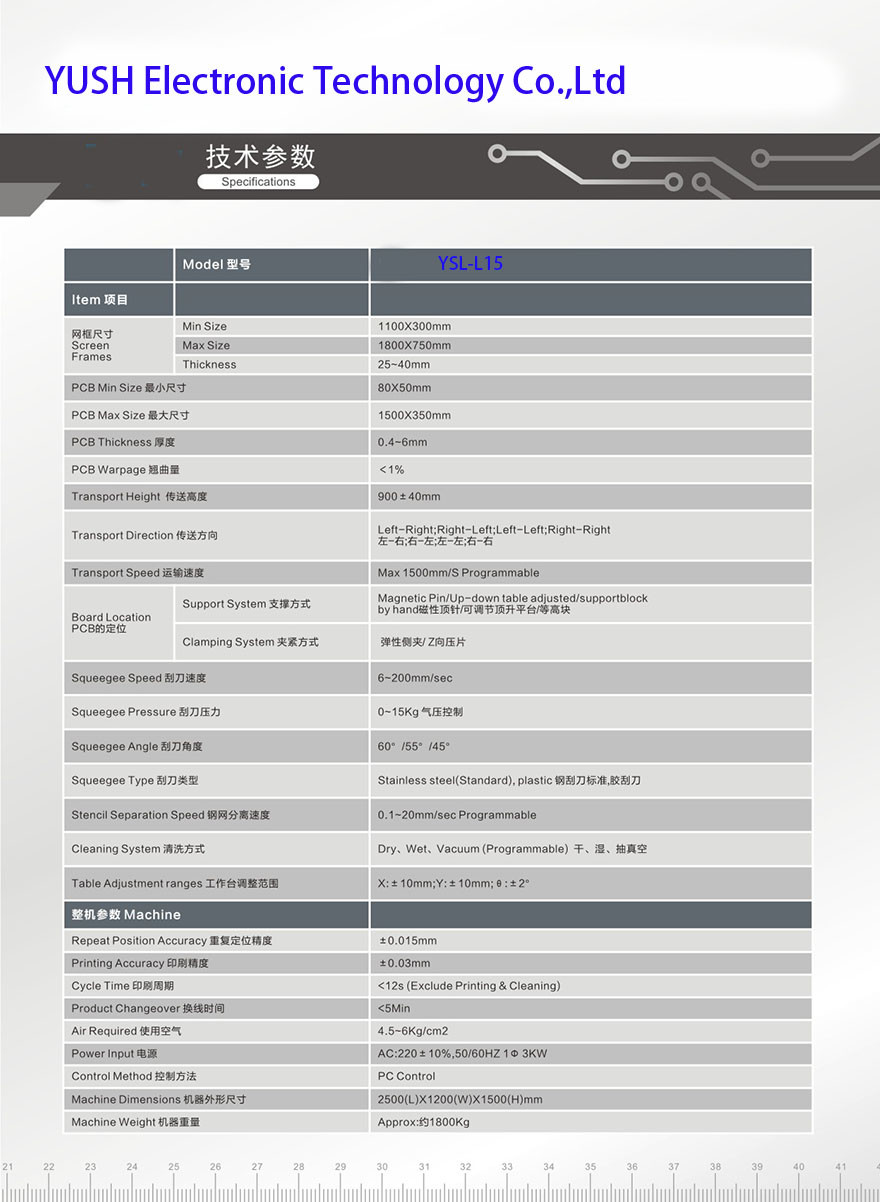

    ModelYSL-L15
    Item
    Screen FramesMin Size1100X300mm
    Max Size1800X750mm
    Thickness25~40mm
    PCB Min Size80X50mm
    PCB Max Size1500X350mm
    PCB Thickness0.4-6mm
    PCB Warpage<1%
    TransportHeight900±40mm
    Transport DirectionLeft-Right;Right-Left;Left-Left;Right-Right
    Transport SpeedMax1500mm/S Programmable
    Board Location PCB LocationSupport SystemMagnetic Pin/Up-down table adjusted/support block by hand
    Clamping SystemElastic side clamp/Z Directional Press
    Squeegee Speed6-200mm/sec
    Squeegee Pressure0-15Kg
    Squeegee Angle°60°/55°/45
    Squeegee TypeStainless steel(Standard),plastic
    Stencil Separation Speed0.1~20mm/sec Programmable
    Cleaning SystemDry,Wet,Vacuum(Programmable)
    Table AdjustmentrangesX:+10mm;Y:±10mm:0:±2°
    Machine
    Repeat Position Accuracy±0.015mm
    Printing Accuracy+0.03mm
    Cycle Time<12s (Exclude Printing & Cleaning)
    Product Changeover<5Min
    Air Required4.5~6Kg/cm2
    Power InputAC:220+10%50/60HZ1Ф3KW
    Control MethodPC Control
    Machine Dimensions2500(L)X1200(W)X1500(H)mm
    Machine Weight

    Approx:1800Kg
