Features:
1. The first domestic electromagnetic pump technology
2. High efficiency and energy saving
3. Top quality
4. Display the welding status in the whole process
5. Using German imported drip nozzle, high precision

Standard machine basic structure module
1. Spray module
2. Preheating the module
3. Welding module (standard machine with inner diameter 6mm nozzle)
4. Transmission system
Working principle: After the pre-programmed program of the spray head controls the PCB board to move to the designated position, only the parts that need to be soldered are sprayed with flux. After spraying and preheating, the electromagnetic pump platform drives the electromagnetic pump to move to the required position according to the preset program. Welded parts, and then welded.

Fast and convenient programming system

Stable and high quality welding---welding module
Features and advantages:
1. Independent research and development of electromagnetic pump
2. Stable crest height
3. Special material nozzle (can be used for 3 months)
4. The nozzle is easy to remove and replace
5. Very low maintenance rate
6. Double electromagnetic pump design, double the efficiency
7. Automatic adjustment of double nozzle spacing
8. The welding process can be recorded

Using an electromagnetic pump, compared with a mechanical pump, the electromagnetic pump has stable wave peaks during operation, no mechanical wear of the movement, and produces very little waste. In addition, the welding module adopts a high-precision motion system to ensure the accuracy of the welding process. , The colleague cooperates with the special process, which can greatly eliminate the phenomenon of tin connection. In terms of user experience, it provides welding monitoring cameras and automatic detection of wave height, which greatly improves the user experience.

Transmission system---transmission track

Integrated chain transmission system and roller transmission system. Among them, the reheating module and the spraying module are driven by chains. The welding module adopts roller drive, which can greatly improve the positioning accuracy and repeatability.

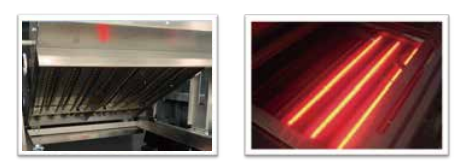

Perfect preheating----preheating module

Combining upper and lower preheating is also perfect for lead-free soldering or multi-layer PCBs. The upper hot air preheating has been used in Nitto reflow soldering for many years, with stable performance, it can evenly disperse the heat on the PCB. The lower infrared preheating can open the preheating pipes in different areas according to the size of the PCB to save energy. At the same time, the welding module also provides the upper hot air preheating, which can ensure the preheating temperature during the whole welding process and guarantee the perfect performance of the flux.

selective soldering process
Welding process:
1. Transport the PCB to the spray module
2. The flux spray moves to the command position and selectively sprays the position that needs to be soldered
3. The upper hot air and the lower infrared module preheat the PCB
4. The electromagnetic pump is welded according to the programmed path
5. PCB outgoing

High precision spray---spray module
The standard machine adopts precision drop nozzle imported from Germany, the diameter of the nozzle is 130μm, which can evenly spray the flux on the required welding area. The minimum spray area is 3mm, saving at least 90% flux compared to traditional spray. According to user needs, in the case of low precision of spray area size, spray nozzles are also provided to make the spray process faster.

All module movements are driven by private clothes and ball screws, the movement process is smooth and stable, and the repeatability can reach 0.05mm.
