Features:
1. Independent research and development of electromagnetic pump
2. Adopt roller conveying system to increase welding space
3. Modular design, easy to maintain
4. Display the welding status in the whole process
| Parameter | Name | Specification |
| Body parameters | Device Dimensions | 1435(L)*1800(W)*1670(H) |
| Equipment weight (KG) | 1050 |
| Maximum PCB board size | 510(L)*450(W) |
| Minimum PCB board size | 120(L)*50(W) |
| PCB top clearance | 120 |
| PCB bottom clearance | 60 |
| PCB process side | ≥3 |
| Conveyor belt height above ground | 900±20 |
| PCB transfer speed | 0.2-10 |
| PCB weight (KG) | ≤5 |
| PCB thickness (including fixture) | 1-6 |
| Adjustable range of conveyor belt | 50-450 |
| Conveyor belt width adjustment method | Electric |
| PCB transfer direction | Left to right |
| Air intake pressure | 0.6 |
| Nitrogen supply | Provided by customer |
| Nitrogen inlet pressure | 0.6 |
| Nitrogen consumption | 1.5 |
| Required nitrogen purity | ＞99.999 |
| Voltage | 380 |
| Frequency | 50/60 |
| Maximum power consumption | ＜28 |
| Maximum current | ＜56 |
| Ambient temperature |
| Machine noise | ＜65 |
| Communication Interface | SMEMA |
| Welding system | Welding X-axis maximum travel | 510 |
| Maximum travel of welding Y axis | 450 |
| Welding Z axis maximum travel | 60 |
| Minimum Nozzle Outer Diameter | 5.5 |
| Nozzle inner diameter | 2.5-10 |
| Maximum crest height | 5 |
| Tin furnace capacity | Approx.13kg(Sn63Pb)/ Approx.12kg(lead-free) |
| Maximum Soldering Temperature | 330 |
| Tin furnace heating power | 1.15 |
| Preheating system | Preheat temperature range | ＜200 |
| Heating power | 6 |
| Heating method | Hot air |

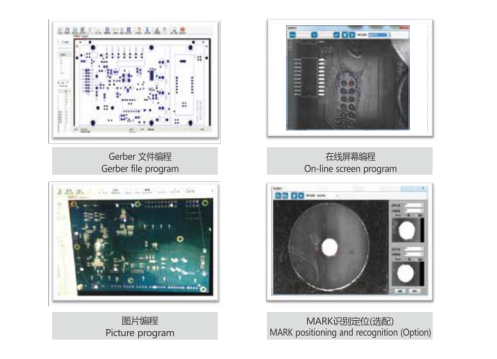

Fast and convenient programming system
Features and advantages:
1. Three programming methods to choose from
2. Support offline programming
3. Different welding parameters are available for each welding
point
4. Process data recording
Stable and high-quality welding----welding module
Features:
1. The crest is stable
2. The nozzle is easy to remove and replace
3. High quality nozzle (can be used for 3 months)
4. Small footprint
5. Energy saving
6. Fast line change
Transmission system----transmission track
The transmission system adopts roller conveying, which increases
the welding space and is more conducive to the welding of
components close to the edge of the board.

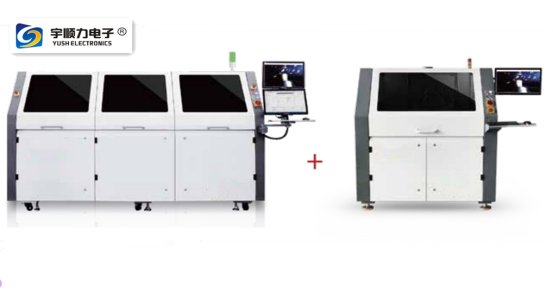

Solutions for high productivity
1. Modular design to meet the requirements of flexibility and high
production capacity
2. Suitable for double splicing, double the production capacity
3. Occasions where two specifications of nozzles to meet the needs
of imposition are completed

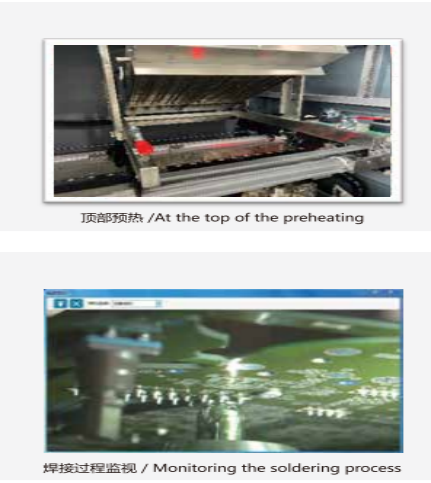

Selective soldering process
Welding process:
1. Transfer the PCB board to the designated location
2. The electromagnetic pump is welded according to the programmed
path, and the top hot air is preheated at the same time
3. PCB outgoing
Basic structure module
Using an electromagnetic pump, compared with a mechanical pump, the
electromagnetic pump has stable wave peaks during operation, no
mechanical wear of the movement, and produces very little waste. In
addition, the welding module adopts a high-precision motion system
to ensure the accuracy of the welding process. , The colleague
cooperates with the special process, which can greatly eliminate
the phenomenon of tin connection. In terms of user experience, it
provides welding monitoring cameras and automatic detection of wave
height, which greatly improves the user experience.
