Stainless Steel Filter Eco Friendly Flux Sprayer For Selective Spraying Option

Ask Lasest Price
Brand Name :	YUSH
Model Number :	YSL-350S
Certification :	CE Mark
Price :	business negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	25 Set/Sets per Month
Delivery Time :	3 days to 7 days

Add to Cart

Product Details
Company Profile

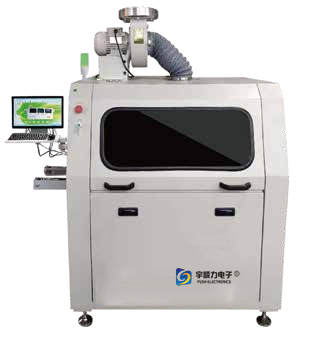

Stainless Steel Filter Eco Friendly Flux Sprayer For Selective Spraying Option

1. Adopt high quality stainless steel chain for conveying;

2. Adopts the new type cleaning chain device for thoroughly cleaning;

3. Exhaust device adopts large air volume, high air pressure, low noise fan,upper and lower exhaust filter structure, two-stage filter;

4. It can effectively prevent the flux dropping on the surface of PCB and keep it clean;

5. The imported nozzle with small diameter is adopted to adjust the spraying conveniently,which will display the air pressure parameters in numerical value that is convenient for management and operation;

6. Flux supplying with constant pressure, and equips with flux auto adding device;

7. Man-machine interface operation, PLC control;

8. PC+ motion controller control, realize X, Y axis linkage;( for selective spraying option).

9. Stainless steel filter + backflow mechanism is used above the spray, and the lower layer is equipped with air pumping mechanism on both sides of the box, which improves the flux recovery rate;

Remarks:The computer and monitor will be configured for the selective sprayer.

Specifications:

Item	YSL-350S	YSL-350S(selective spray function)
Conveyer Motor	220V 60W
Conveyor Speed	0.5-1.8min
PCB Size	50-350mm
Inlet height	750±20mm
Spray drive motor	Step Motor 48V
Finger Cleaning Pump	220V 10W
Exhaust fan	3∮380V 50Hz 750W
Air pressure of Spray Fluxer	3-6bar
Dimension	1450(L)1100(W)1350(H)mm
Total Power Consumption	Approx. 1.3KW
Normal running power	1.0KW
Power	3∮380V 50Hz/60Hz
Net Weight	Approx.350kg
Control Type	PLC Touch screen+PLC	PC+ motion controller

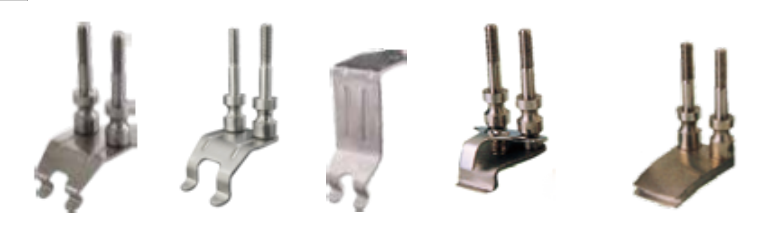

Finger Type

We now have five different types of fingers as standard finger might not be able to meet customer products’requirements

Double hook finger	Item	Parameter
	Technical distance	≥4mm
	PCB thickness	≤3mm
	Material	Titanium alloy
Double hook finger (L type)	Item	Parameter
	Technical distance	≥4mm
	PCB thickness	For the production with jig, no limit on thickness of jigs
	Material	Titanium alloy
Light-duty double Hook Finger	Item	Parameter
	Technical distance	≥4mm
	PCB thickness	≤2.5mm
	Material	Material is stainless steel and titannium alloy
Spring pressed finger	Item	Parameter
	Technical distance	≥4.5mm
	PCB thickness	≤5mm
	Material	Support chip is titanium alloy,tabletting is stainless steel
D-40 duchbill finger	Item	Parameter
	Technical distance	≥3mm
	PCB thickness	≤2mm
	Material	Titanium alloy
