    IR Preheating Lead Free Wave Soldering Machine Flexible Modular

    Ask Lasest Price
    Brand Name : YUSH
    Model Number : YSL-300E
    Certification : CE Mark
    Price : business negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25 Set/Sets per Month
    Delivery Time : 3 days to 7 days
    • Product Details
    • Company Profile

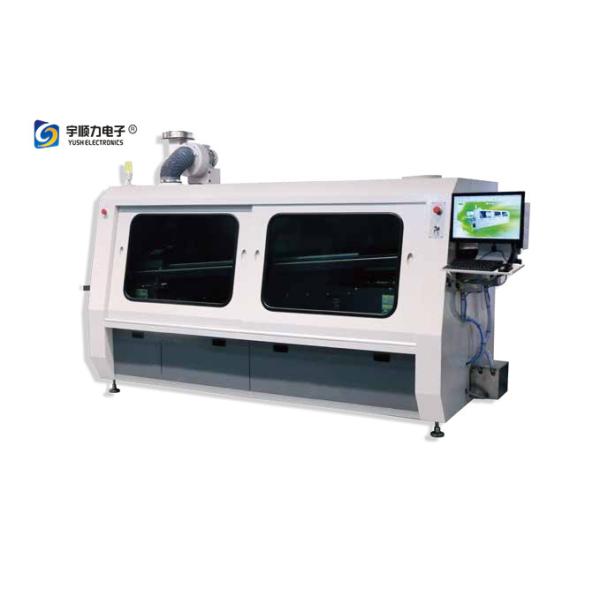

    IR Preheating Lead Free Wave Soldering Machine Flexible Modular

    Five Features
    1. Compact structure and small footprint.
    2. PC+PLC control system.
    3. IR preheating, high thermal efficiency and uniform temperature.
    4. Step motor control spraying, more stable and reliable.
    5. Adopts small solder pot, reduces the cost.
    Built-in Spraying Device
    Drawer type module preheating unit
    Linkage inlet buffering
    Solder Pot with Cast iron Material
    1. Conveying system: Direct buffering input structure. Special stainless steel chain transmission, aluminum alloy rail unique design, durable;Conveying system: adopt segmental floating structure, effectively prevent guide rail deformation;
    2. Preheating system: Drawer-type energy-saving design.IR preheating,PID mode temperature control ,the temperature accuracy can reach to ±2℃;the dropping temperature between preheating zone and soldering zone is ≤5℃;
    3. Flux spraying system:Adopt precision control valve for digital regulation, convenient management. Nozzle movement is controlled by stepping motor.Flux automatic pressure supply, can make the spray flow quickly reach saturation, top exhaustin, filtration system;
    4. The solder pot adopts external heating, it is made of cast iron, the inner surface is anticorrosive treatment, with two low-flow nozzle and low oxidation design;
    5. Forced air cooling system;
    6. PC+PLC control system. Windows7 operation system with Chinese/English operation interface. Processing profile and data auto saving function.Alarm for detecting the flux and solder level.

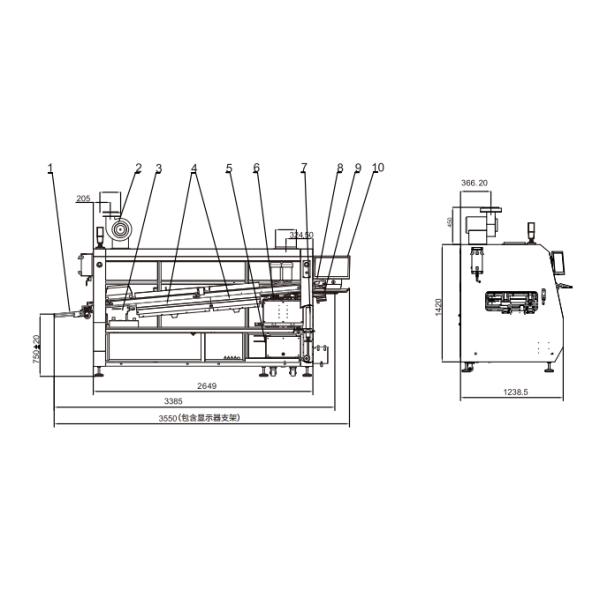

    01 Buffer system
    02 Exhaust fan
    03 Flux spraying system
    04 Pre-heater
    05 Solder pot lifting unit
    06 Dual wave solder pot
    07 Angle adjustment controller
    08 Cooling system
    09 Finger cleaning system
    10 LCD
    Model No.YSL-300EYSL-320E
    Dimension: L*W*H(mm)3385*1240*15403385*1190*1540
    WeightApprox.1150kgApprox.1100kg
    Power Supply3PH 380V 50HZ3PH 380V 50HZ
    Start up Power28KW27KW
    Normal Running Power7KW6.7KW
    Control SystemPC+PLC
    Spraying movementStep motor
    Spraying Pressure0.2Mpa~0.4Mpa
    Flux Flow ControlOption
    Auto Flux FillingStandard
    ExhaustingTop exhaust/
    Exhausting Pipe Diameter(mm)Φ250
    Exhaust fan power370W/
    Preheating ModeIR
    Temperature Control ModePID
    Preheating Zone Quantity2
    Preheating Zone Length(mm)1500
    Preheating Temperature RangeRoom temperature~200℃
    Warm-up Time(min)Approx.12min(setting: 150℃)
    Width(mm)50~300
    PCB Conveying DirectionL→R( Option:R→L)
    Conveying Speed(mm/min)500~1800
    Conveying Height(mm)750±20
    Available Component Height(mm)Top120 Bottom15
    Conveying Speed Control ModeClosed loop stepless speed regulation by inverter
    FingerSpring Pressing Finger;D-40 Type Finger;Double-hook Finger;Heavy type double hook finger(Options)
    Conveying Angle4~6°
    Solder Pot TypeMechanical
    Solder Pot MaterialCasting Iron material
    Wave Height AdjustmentDigital Control by PC
    Cooling typeAir cooling/
    Solder Pot Heating Power9KW220V 9KW
    Max Solder Pot Temperature300℃
    Solder Pot CapacityApprox.350kg
    Wave Driving Power180W*2 3PH 220 VAC
    Solder Pot Warm-up TimeApprox.150min(setting: 250℃)
    Temperature Control ModePID
    Finger Cleaning SystemBrush/
