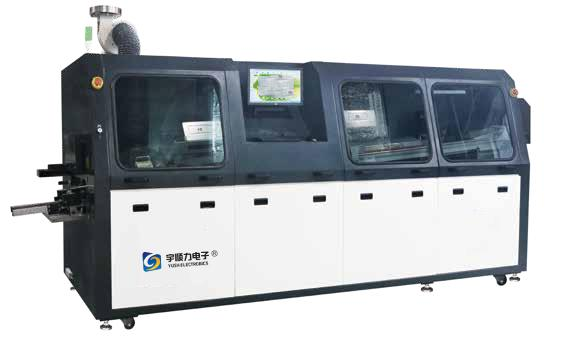

    Flexible Modular Lead Free Wave Soldering Machine 3PH 380V 50HZ

    Ask Lasest Price
    Brand Name : YUSH
    Model Number : YSL-350SS
    Certification : CE Mark
    Price : business negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25 Set/Sets per Month
    Delivery Time : 3 days to 7 days
    • Product Details
    • Company Profile

    Flexible Modular Lead Free Wave Soldering Machine 3PH 380V 50HZ

    SS series is a fully upgraded wave soldering with enhanced modular. digital and humanized design to meet customer needs,With more perfect function, more advanced performance, further improved stability and reliability, the operation and maintenance is more convenient, and the customer operation cost is reduced more.
    Built in spraying unit
    Top exhausting and filtering System
    Forced cooling system
    Lead-free processing nozzle
    Flexible combination of preheating system
    Solder pot is motorized in/out/up/down
    1.Conveyor: Direct buffering input structure. Stainless steel chain conveyor, durable and special design for aluminum alloy track.Adopt segment floating structure to prevent from deformation.
    2.Pre-heating zones: Design for energy saving and removable modules (drawer design). Any combination of infrared and hot air convection.Use PID control to achieve ±2℃ accuracy. The temperature variation for pre-heating zone and soldering zone is less than≤5℃.
    3.Flux spraying system: Managed by digital control. The motion of the spray nozzle is controlled by stepper motor.Flux supply is controlled automatically for optimized effect. Exhausting and filter system installed on the top.
    4.The solder pot is made by cast iron with anti-corrosion ceramic coating equipped with two low flow rate nozzles.
    5.Air cooling system: cooling rate 4-6 ℃ /s (adjustable).
    6.PC+PLC control system. Windows7 operation system with Chinese/English operation interface. Processing profile and data auto saving function.Alarm for detecting the flux and solder level.

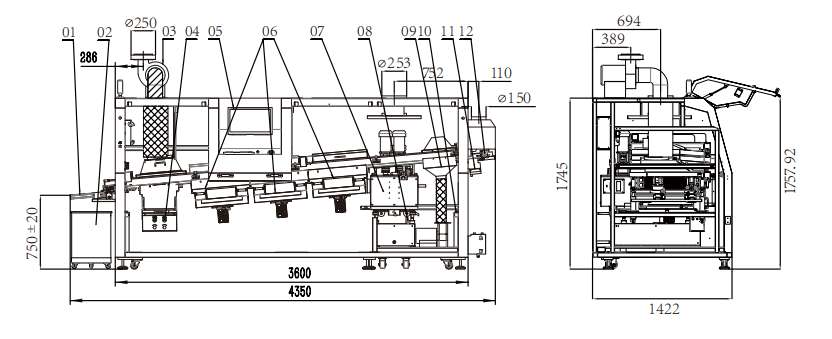

    01 Buffer system
    02 Flux supply system
    03 Exhaust fan
    04 Flus spray system
    05 LCD
    06 Pre-heater
    07 Dual wave solder pot
    08 Solder pot lifting unit
    09 Cooling system
    10 Angle adjustment controller
    11 Finger cleaning system
    12 Conveyor system
    Model No.YSL-350SS
    Dimension: L*W*H(mm)4350*1422*1750
    WeightApprox.1600kg
    Power Supply3PH 380V 50HZ
    Start up Power33KW
    Normal Running Power8KW
    Control SystemPC+PLC
    Spraying movementStep motor
    Spraying Pressure0.2Mpa~0.4Mpa
    Flux Flow ControlOption
    Auto Flux FillingStandard
    ExhaustingTop exhaust
    Exhausting Pipe Diameter(mm)Φ250
    Exhaust fan power750W
    Preheating Modeconvection/IR emitter
    Temperature Control ModePID
    Preheating Zone Quantity3
    Preheating Zone Length(mm)1800
    Preheating Temperature RangeRoom temperature~200℃
    Warm-up Time(min)Approx.12min(setting: 150℃)
    Width(mm)50~350
    PCB Conveying DirectionL→R( Option:R→L)
    Conveying Speed(mm/min)500~1800
    Conveying Height(mm)750±20
    Available Component Height(mm)Top120 Option:240 Bottom15
    Conveying Speed Control ModeClosed loop stepless speed regulation by inverter
    FingerSpring Pressing Finger;D-40 Type Finger;Double-hook Finger;Heavy type double hook finger(Options)
    Conveying Angle4~7°
    Solder Pot TypeMechanical
    Solder Pot MaterialCasting Iron
    Wave Height AdjustmentPC digital Control
    Cooling typeAir Cooling Option: Water cooling
    Solder Pot Heating Power13.5KW
    Max Solder Pot Temperature300℃
    Solder Pot CapacityApprox.480kg
    Wave Driving Power180W*2 3PH 220 VAC
    Solder Pot Warm-up TimeApprox.150min(setting: 250℃)
    Temperature Control ModePID
    Finger Cleaning SystemBrush
