Technical requirements:
1, The customer to install control valve to control the import and export of the exhaust volume up to 145;
2, Each up to 145 entrance hole exhaust volume control in 15M³>/min;
3, The main power supply: 3 380V diameter AC five wire, the main power line diameter of more than 35mm².
Product Features
1. Durable, interchangeable double-sided rails and special
hardening;
2. Adopt stainless steel belt chain with guard, anti-clamp,
practical and reliable;
3. New flux recovery system, full modular design, convenient and quick maintenance, reduce maintenance time and cost;
4. Patented hot air system, more efficient, faster heat
compensation;
5. New furnace structure design, multi-layer heat insulation, effectively reduce the working environment temperature.
Technical Parameters
| S series reflow oven main specifications |
| Model No | YSL-08AS/ YSL-08NS | YSL-10AS/ YSL-10NS | YSL-12AS/ YSL-12NS | YSL-08DAS/ YSL-08DNS | YSL-10DAS/ YSL-10DNS | YSL-12DAS/ YSL-12DNS |
| Heating System |
| Heating Zone | 8 heating zones,16 heating modules | 10 heating zones,20 heating modules | 12 heating zones, 24 heating modules | 8 heating zones,16 heating modules | 10 heating zones,20 heating modules | 12 heating zones,24 heating modules |
| Heating Length | 3120mm | 3870mm | 4635mm | 3120mm | 3870mm | 4635mm |
| Cooling Type | Three cooling zones:forced air cooling/water cooling |
| Outlet Exhaust Diameter,valume | 2-145,Exhaust demand 15m³/min x2 |
| Conveyor System |
| Product Width | Min50mm-Max400mm | Min50mm-Max270mm(Dual track at the same time)
Min50mm-Max500mm(Dual-track alone) |
| Conveying Direction | L→R,R→L |
| Inlet Height | 900±20mm |
| Fixed Rail Side | Front rail Fixed (Option:Rear Rail Fixed) | Front and Rear Rails Fixed,central two rails are movavle |
| ConveyorType | Chain+mesh belt synchronous trans mission |
| Cmponent Height | Clearance based on the rail: above 30mm,below 25mm |
| Conveying Speed | 300mm-2000mm/min |
| Control System |
| Power Supply | AC30 5W 380V 50/60HZ |
| Total Power | 59KW | 73KW | 91KW | 70KW | 89KW | 108KW |
| Start Up Power | 30KW | 35KW | 40KW | 35KW | 40KW | 45KW |
| Running Power | 7.5KW | 9.5KW | 11.5KW | 10KW | 11.5KW | 13KW |
| Temperature Range | Room temp to 320℃ |
| Control type | PC+PLC Control system |
| Rail Width Adjusting Mode | Electric+Manual |
| Temp Control accuracy | ±1℃ |
| PCB Temp Deviation | ±1℃ | ±2℃ |
| Data Store | Process Data and status stotage |
| Power Outage Protection | Equipped with UPS |
| Operation Interface | Windows Chinese simplified, English online free switching |
| General |

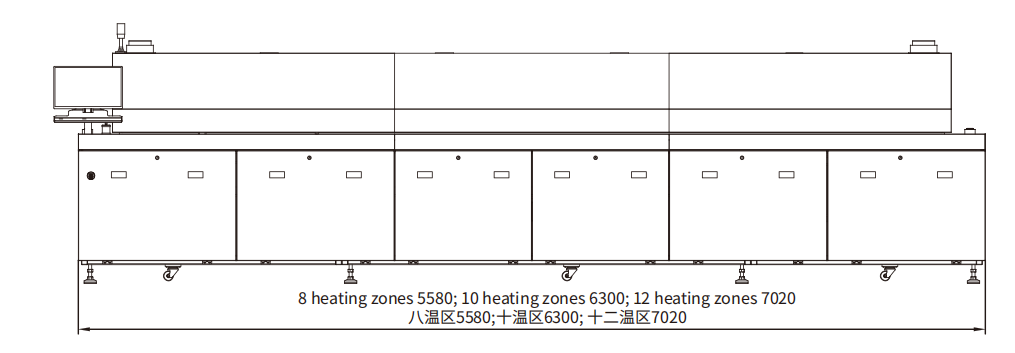

| Dimension(L*W*H) | 5580x1450x1620mm | 6300x1450x1620mm | 7020x 1450x1620mm | 5580x1735x1620mm | 6300x1735x1620mm | 7020x1735x1620mm |
| Weight | 2200-2400kg | 2600-2800kg | 3000-3200kg | 2700-2900kg | 3000-3200kg | 3300-3500kg |
| Color | Bright wrinkled white |
