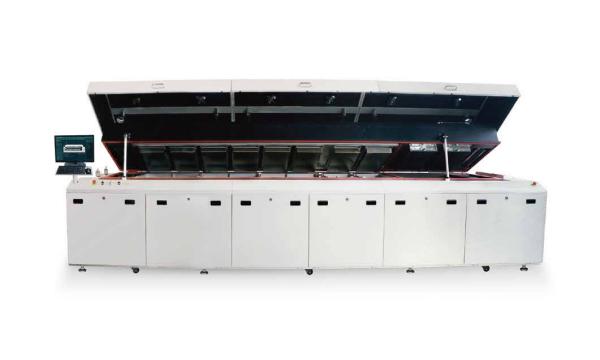

10 Heating Zones SE Series Reflow Oven Dual Rails 70KW Total Power

Ask Lasest Price
Brand Name :	YUSH
Model Number :	YSL-710AHSE
Certification :	CE Mark
Price :	business negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	25 Set/Sets per Month
Delivery Time :	3 days to 7 days

Add to Cart

Product Details
Company Profile

10 Heating Zones SE Series Reflow Oven Dual Rails 70KW Total Power

SE series reflow oven main specifications (Daul Rails)
Model No	YSL-708AHSE Daul Rails	YSL-708HSE Daul Rails	YSL-708NHSE Daul Rails	YSL-710AHSE Daul Rails	YSL-710HSE Daul Rails	YSL-710NHSE Daul Rails	YSL-712AHSE Daul Rails	YSL-712HSE Daul Rails	YSL-712NHSE Daul Rails
Heating System
Heating Zone	8 heating zones, 16 heating modules			10 heating zones, 20 heating modules			12 heating zones, 24 heating modules
Heating Length	2950mm			3670mm			4350mm
Cooling Type	Double cooling:enforced air cooling/water cooling(Optional:three cooling zones)
Outlet Exhaust Diameter valume	2-145,Exhaust demand 15m³/min*2
Conveyor System
Product width	Min50mm-Max270mm(simultaneously)/(Optional:Simultaneous overboard max300mm)
	Min50mm-Max500mm(single track)/(Optional: single track over board max550mm)
Conveying Direction	L→R,R→L
Inlet Height	900±20mm
Fixed Rail Side	Front and Rear End Rails Fixed,2 Central Rail adjustable
Conveyor Type	Chain+mesh belt synchronous transmission
Cmponent Height	Clearance based on the rail:above 30mm,below 20mm
Conveying speed	300mm-1500mm/min(Option:Double Speed)
Control System
Power Supply	AC3 5W 380V 50/60Hz
Total Power	70KW			89KW			108KW
Start Up Power	35KW			40KW			42KW
Running Power	10KW			11.5KW			13KW
Temperature Range	Room temperature to 320℃
Control type	PC+PLC Control system
Rail Width Adjusting Mode	Electric+Manual
Temp Control accuracy	±1℃
PCB Temp Deviation	±2℃
Data Storage	Process Data and status stotage
Power Outage Protection	Equipped with UPS
Operation interface	Windows Chinese simplified,English online free switching
General
Dimension(LWH)	505516101515mm			577516101515mm			649516101515mm
Weight	2500-2700KG			2900-3100KG			3300-3500KG
Color	Bright wrinkled white

Manual+electric width adjustment structure design, equipped with emergency manual transmission structure in case of preventing PCB burned when power off.

Conveyor system:stable and reliable anti-deformation structure design.

Built-in temperature profile test function, virtual simulation function, save setting time.

Two cooling zones

Cooling system, new patented structure design, forced air cooling and water cooling structure which can be upgraded and exchanged; Convenient and fast maintenance; Cooling area temperature display is adjustable.

Modular structure, easy to clean and maintain. Front and rear air return design, effectively prevent the influence of air flow between the zones, ensure accurate temperature control. Long life high performance hot air motor. Frequency converter control, wind speed adjustable hot air motor.

High-precision nitrogen flow agent and oxygen content analyzer can accurately control the nitrogen flow, and can be equipped with a nitrogen closed-loop control system to achieve low nitrogen consumption and low-cost production.

Option: full nitrogen filling Full nitrogen filling is optional, multi-directional protection product welding quality,to improve production efficiency.

Online maintenance rosin recovery system, simple operation, convenient and fast, effectively reduce customer production costs.
