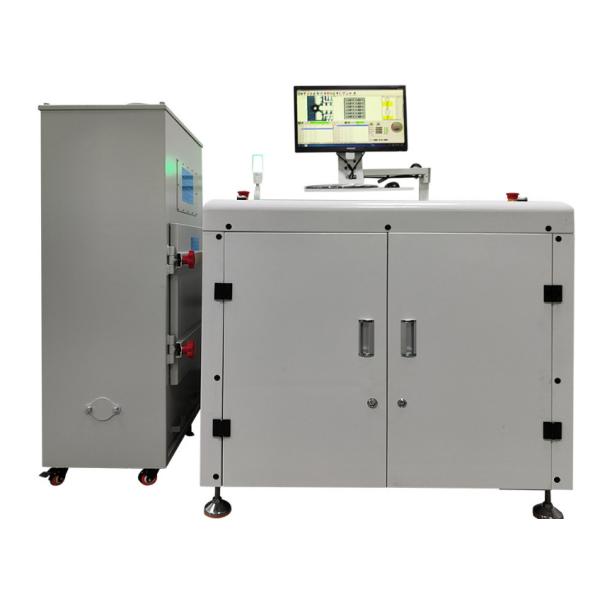

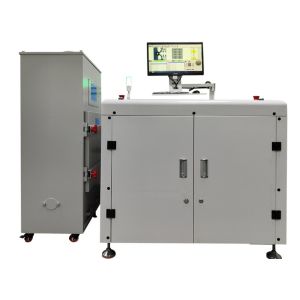

High speed plate distributor YS-4500
With the continuous development of the electronic industry, the
production requirements of the substrate, an important component of
electronic products, are increasingly Lei higher, to high
precision. High density. High performance. Small volume
development. In order to meet the requirements of the market, the
company's long-term market research on the advantages of various
brands in the world, widely listen to the views of all aspects of
the user, to make this high-speed dual-mode board machine YS-4500.
Software introduction
New generation identification system
1: Change the traditional circle, square and other geometric
patterns can only be recognized. Can recognize any shape mark point
2: Not only with error correction function, but also accurate data,
do not worry about the staff put the wrong board.
3: displacement function, can realize the fixture in the working
table arbitrary placement
1: Change the traditional segmentation mode
2: Adjust the depth of the lower cutter according to the thickness
of PCB, increase the utilization rate of the milling cutter and
save the cost
3: Can be defined according to the needs of the product to
determine the condition of the milling cutter
Introduction about the construction
Taiwan 60000 high-speed spindle is adopted.
Using WIN7 system operation interface, the configuration of high
pixel color CCD amplification 10 times lens, auxiliary program
teaching and editing simulation function, precision is more
accurate, the image is clearer.
Electric control layout
Electronic control - on-line
1: clear, easy maintenance
2: bus mode, simple connection
3: modular design, not high requirements for maintenance personnel
Parameters and main accessories of
X/Y cutting speed: 0~100mm/s
Machine repetition accuracy: ±0.02
Maximum size of the board: 400mm*500mm
X,Y,Z control mode: industrial motion controller + industrial
computer
X,Y,Z drive mode: Panasonic servo electric power
Man-machine operation and data storage: industrial computers
Cutting accuracy: ±0.1
Spindle speed: Taiwan spindle Max 60000rpm
Cutting form: straight line, circle, arc, U shape, L shape, etc
Image: Smart Industrial CCD
Operation interface: Chinese/English double interface
Fidicuial Mark: CCD automatic alignment function
Program preview: CCD path simulation function
Host voltage: AC 220V 50/60Hz
Air pressure: 5.5KG/CM²
Host size: 1150 x 1050 x 1580 (L X H X D)mm
Main engine weight: 450kg
Dust collection mode: next dust collection
Dust collector: 2HP
Dust collector power supply: AC 380V 50/60Hz
Size of dust collector: 650 x 400 x 1250 (L X H X D)mm
Dust collector weight: 103kg
The main parts of the plate machine
Lead screw: Taiwan TBI C5 grinding lead screw
Guide rail: Taiwan PMI linear guide rail
Spindle: Taiwan spindle Max 60000rpm
Servo motor: Panasonic A6 servo motor
Industrial control host: industrial computer
Monitor: LCD19"
CCD: GIGE industrial intelligent CCD
Lens: Industrial HD lens
Light source: Industrial dimmer +50mmLED ring light source
Power Supply: Taiwan Mingwei
Relay: Omron relay
Introduction to dust collecting machine
Clean vacuum mechanism
1: Patented design of brush design, excellent vacuum suburb fruit
2: module suction structure, to ensure long-term dust
YS-UA02 high efficiency vacuum cleaner is specially equipped with
the lower vacuum separator, super dust removal capacity, the lower
vacuum mode with the unique design of the separator can effectively
deal with the dust produced in the process of dividing the board,
can well protect the cleaning of products and workshop environment
and staff health.
| Motor specification | 2HP 380V 50Hz 3-phase |
| Output power | 1.5KW |
| Suction air volume | 3 m³/min |
| Static pressure | -2000mm-AQ |
| Inlet diameter | 50mm |
| Outlet diameter | 100mm |
| Noise | <65dB |
| Net weight | 103Kg |
| Dimension | 650*400*1250mm |
Plate splitting machine features:
1: Simple operation, intelligent
2: Good stability
3: simple structure, easy maintenance
4: vacuum suburb fruit good
