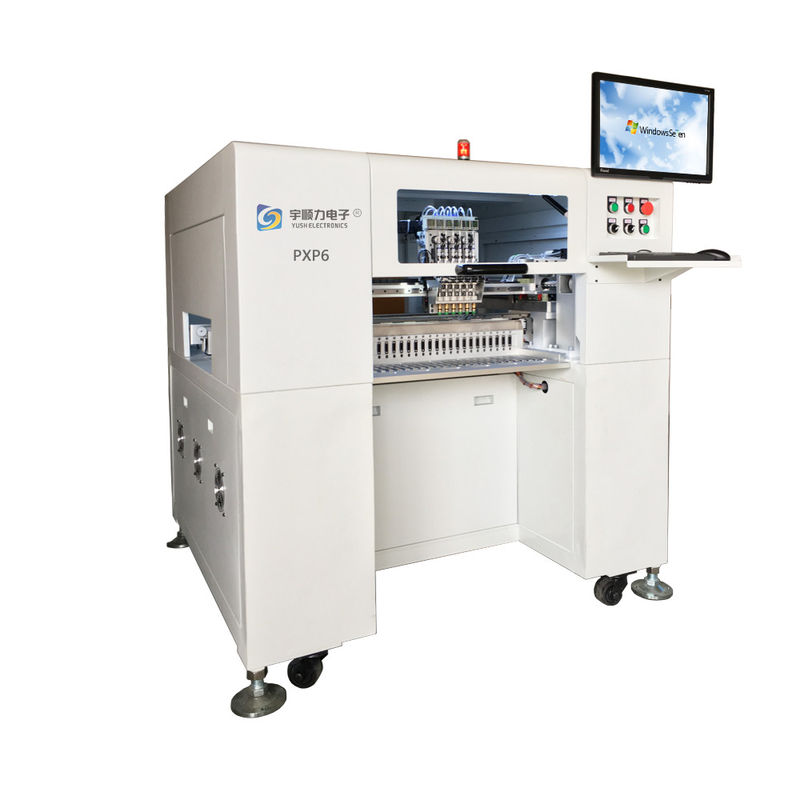

Yush Pick and place machine PXP6
High speed pick and place machine/chip mounter/ chip shooter Yush
PXP6
In order to feed the different requirement of customers, reduce
costs, improve production efficiency, YS design the six heads
multi-function semi-automatic pick and place machine, YS - S206
adopts imported linear guide, screw road, servo motor. The machine
will get the high speed and high stability. It is a highly
cost-effective pick and place machine.
all the material of X axis, Y axis and material feed platform are
made by overseas CNC brushed aluminum which has improved the
running accuracy and feeding speed.
Two kinds of visual location system, one is Mark locating visual
system in the upside another one is importing camera components
location adjust recognition system in the downside, which can
insure the accuracy of SMT.
The Z axis was powered by 6 overseas servomotors and made by CNC
brushed aluminum rod which insured the high-speed material feed.
Powerful function: with different material feeder, it can finish
different SMT for led product.
Easy operation system:
Easy maintenance: it is very easy to maintain with its simple
operation system. The maintenance cost is very low.
The software, PCB board and other components are developed by
Xinjiusheng,with independent intellectual property rights.
| Model | YS-PXP6 |
| Max PCB size | 1500(X)x350(Y)x25(Z)mm |
| Max moving range of Z axis | 20mm |
| Max moving range of PCB slider platform | 1500mm |
| Max pick and place speed | 40000CPH |
| stable pick and place speed | 32000-35000CPH |
| pick and place accuracy | 0.05mm |
| buffering range of SMT nozzle | 4.0 |
| power supply | 220V, 50Hz |
| control mode | PC |
| air pressure | 0.65-0.75Mpa |
| average power | 2KW |
| tape feeder | 8,12,16,24mm feeder |
| applicable componets | 1.0603-7474 resistance and capacitance , 2. 2835,3528,3014,4014,5050,5630,5730,7070,edc. 3. all kinds of high power chips are avalible .
|
| Feeder quantity | 12pcs |
| Motor | original Panasonic AC servomotor |
| pick and place header | 6 heads |
| power engine | advanced AC servomotor |
| Components location angle | 0-360 degree, automatically adjust during feeding |
| X/Y moving mode | New generation linear insert linkage control system |
| air source | importing vacuum ejector |
| control system | Independent research and development |
| programme method | point by point copy program, visual program, can update |
| weight | 900KG |
| size | 2000mm *1100mm *1300mm |
