Automatic bidirectional pcb depaneling machine/V cut sparator/cutting machine

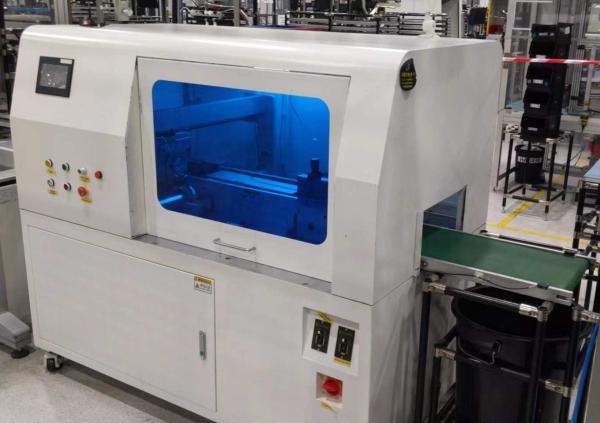

Automatic bidirectional pcb depaneling machine

Model :YSV-5A

Product introduciton:

1. YSV-5A automatic double-direction splitting machine is a machine with two-way horizontal and vertical splitting plates. It solves the problem that the well-shaped V-groove PCB board needs to be divided into two sub-boards, and the operation is slow.

2. High degree of automation, before and after docking other equipment, truly unmanned, saving labor.

3. Touch-screen operation can quickly replace PCB products of different sizes. The back-end sub-boards are modularized. It takes only 10 minutes to replace the products, and the PLC data storage can reach 100 groups.

4. The device can be set as a single-direction sub-board, and the horizontal and vertical sub-boards can be completed in the touch screen of the device, and one machine is multi-purpose and more intelligent.

5. Vacuum cleaner (optional) ;

Features:

1. The machine can be fully automatic two-way board.

2. The machine can also be divided horizontally or vertically.

3. The machine can achieve rapid replacement of the product, fast modular conversion.

4. It can dock the upper and lower board machines to realize fully automated production and save labor.

5. Simple operation, training can be used to master.

6. Unique new tool design, durability increased by 1.5 times

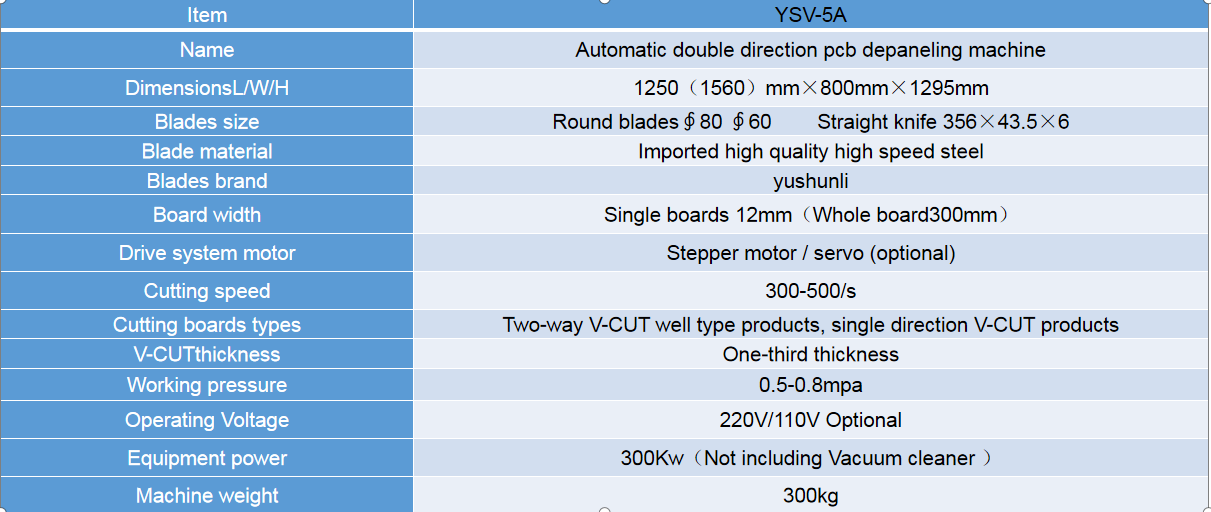

Technical Parameters:
