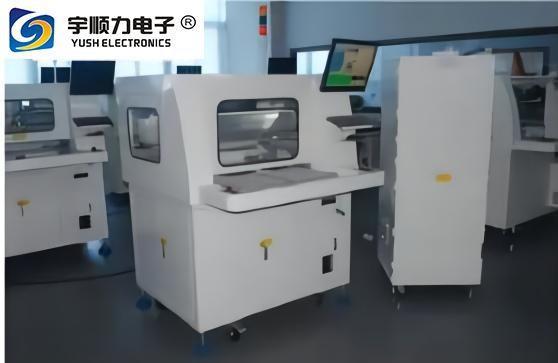

High Speed PCB Depaneling Router For Cutting Circuit Board / Automated Pcb Assembly

I. Hardware

SPINDLE Morning Star spindle and inverter
CCD:Sony 520 line industrial cameras
LENS:Computar EX2C
Screw:TBI Precision ground ball screw imports
Guide:HIWIN widening Imported linear guide rail
MOTOR:JiaBao LCF Series
I/O CONTRONL CARD: HFC PCI-9074
DRIVER CONTRONL CARD: HFC PCI-9074
I/O CARD:PCI-9074-64pcs/-38pcs
Static cleanup:STATIC-ST401A Series
Computer:RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
Machine interface: AOC LCD17",Logitech mouse

2. software

Control system:Windows XP Professional (Service3,v.3244)
Operation GUI:Chinese Windows XP
Program edit:Inline
Vision system:CCD AOTU offset
Control system : F 1.0.2 version

3.Performance Parameters

Dimensions(W*D*H) : 1220mm*1450mm*1420mm
Weight : 550KG
Height offset : 60~110mm
Motor type : JiaBao series
Positioning repeatability : 0.001mm
Axis working area(max) : 680mm*360mm*50mm
PCB fixation : standard,specialization
PCB loading/unloading : manual
