3T/8T/10T WorkingArea330×220mm PCB Punching Machine
YSPEPCB/FPC Punching Machine Feature:
1,PCBA Punch Machine is punch mold machine.
2,Equipment,compact structure,solid body,cylinder
bore125,160,200AirTAC.
3,Equipment running smoothly,low vibration,lownoise.
4,English touch screen display,clearpanel,alarm function showed
abnormal warning glance.
5,Machine generality.Can replace a variety of mold and die change
quick and easy.
6,Device Security:
6.1.Double switch start operation.
6.2.Device configuration mode and out of the chute,and out of the
lower mold automatic
pick and place convenient and safe products.
6.3.Set the emergency stop switch,identify problems and timely shut
down.
6.4.Set security doors,installation and commissioning of the mold
to avoid straying
hands.(Normal operation without security door doesnot work).
6.5.Set security door grating sensing device,placed in the wrong
plate on the mold of the
injection device can sense the mistakes,the mold cannot enter.
6.6.Safety pressure setting function,limitalarm.Automatic
counting,limit down time.
7,The internal stress generated when the cutting board to aminimum
and to avoid
cracking of tin.
8,Punching semi-finished PCB,FPC high efficiency.
Machinespecifications:
Machine size: | 930×880×1750mm |
Output: | 3T/8T/10T |
CylinderreturnOpeningForce: | 1.5T 4T 5T |
Workingpressure | 0.50-0.70 Mpa Dry air supply |
Working Area | 330×220mm |
Power | 220VAC |
Punch Speed: | 8~15sCan adjustable(Not include put boards and pick uptime) |
work plan: | ≥60mm |
Work Noise | ≤60dB |
Working Accuracy: | ±0.05mm |
Machine weigh | 680kg |

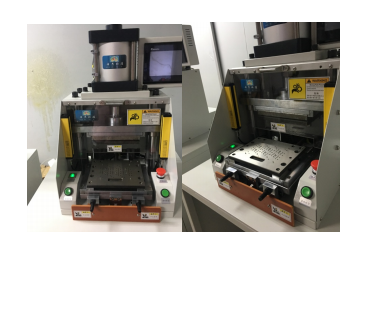

Customized small punch machine:
