2 Iron Heads Soldering Machine For LED Soft Strip Light

    Buy cheap 2 Iron Heads Soldering Machine For LED Soft Strip Light from wholesalers

    Buy cheap 2 Iron Heads Soldering Machine For LED Soft Strip Light from wholesalers
    • Buy cheap 2 Iron Heads Soldering Machine For LED Soft Strip Light from wholesalers

    2 Iron Heads Soldering Machine For LED Soft Strip Light

    Ask Lasest Price
    Brand Name : YUSHUNLI
    Model Number : PCX-800
    Certification : CE
    Price : USD1000~4000
    Payment Terms : L/C, D/A, D/P, Western Union, MoneyGram, T/T
    Supply Ability : 200Sets/Month
    Delivery Time : 5-7work days
    • Product Details
    • Company Profile

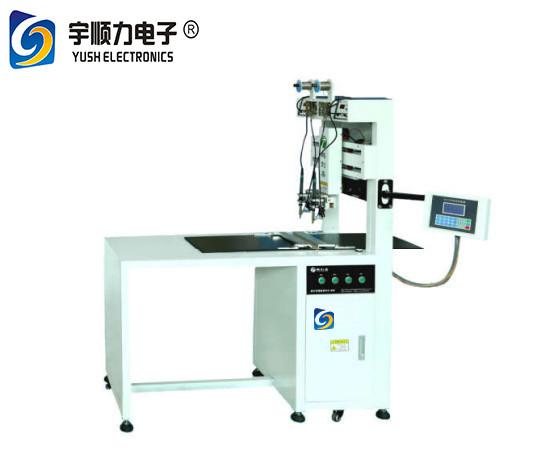

    2 Iron Heads Soldering Machine For LED Soft Strip Light

    soldering machine for LED soft strip light
    Product Brief:
    PCX-800LEDSoft light strip plate soldering machine is a dedicated automatic welding equipment for 5 meter
    LED strip welding,According to the characteristics of LED equipment 5 meters depth of humanization design,
    engaged in a variety of different solder joints instead of manual soldering work, solve the manual welding of weld
    solder joint is not uniform, and other phenomena, and compatible with a variety of types of LED soft strip size of
    welding, simple operation and high practicability, quality stability, greatly enhance the efficiency.
    First, product advantages:
    1.Simple programming, operation control box mobile head position.
    2.Welding speed, high efficiency, a solder machine can save 5-6 people
    3.Save tin wire, good consistency of solder joint
    4.High power heating controller ensures the stability of continuous welding
    The utility model relates to a double head fine tuning welding gun structure, which is convenient for regulating
    the welding torch spacing and synchronous operation
    5.Multi axis manipulator, advanced motion control algorithm, to improve the kinematic positioning accuracy and
    repeatability accuracy
    6.According to the professional design of the lamp batten, it is convenient for manual feeding and feeding
    7.Production efficiency: 1800-2000 metres /H.
    9,It can replace the manual process and optimize the quality control.
    10,Improve efficiency, save manpower, simple operation, new staff can achieve the welding effect of skilled
    workers
    Two, scope of application:
    LED soft light plate soldering machine application range: suitable for LED monochromatic light, 5050RGB lamp
    string, lamp belt, lamp strip and other products

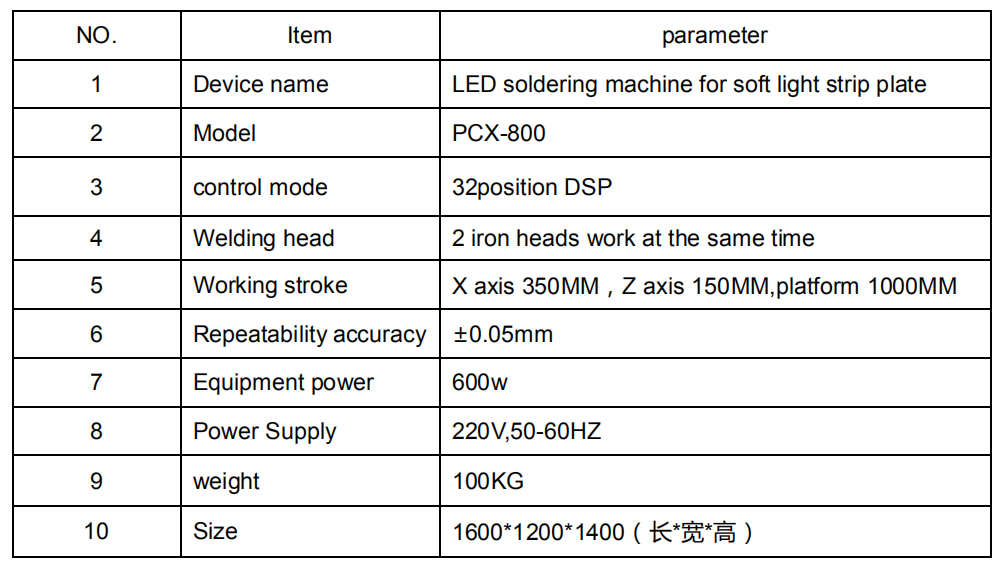

    Three, technical parameters:


    Technical parameter configuration:

    Quality 2 Iron Heads Soldering Machine For LED Soft Strip Light for sale
