0.8-5mm Imported High Speed Steel Automatic Pcb Depaneling Machine

Product description:

YSV-3A is a fully automatic round blades moving depneling machine that can be connected to the loader and unloader machines to achieve unmanned operation. Not only is it convenient to install, but it is also simple to operate. It saves more employees, saves time and effort. Small footprint, saving operating time.

Product introduction:

1. YSV-3A PCB automatic pcb depaneling machine, microcomputer-controlled automatic sub-board, high efficiency at the same time all kinds of advantages of the knife-type sub-board machine: stress small knife-type partition to avoid circuit board dark injury, tin Cracks and other issues, wide applicability, suitable for double-sided circuit boards with components.
2. It adopts PLC and touch screen man-machine interface control system, automatic fault shutdown display, intelligent parameter positioning system, can accurately realize PCB equidistant or not equal distance v-cut groove every step alignment, set a little moving function, inching The function can be manually jogged to confirm the v-cut accuracy of the knife, so as to ensure better segmentation of the best quality product.
3. This machine has a memory storage function (100 sets of data can be stored), this function is convenient to operate (as long as it is stored product data) directly download and use without having to set, quick change plate split, to achieve a machine a variety of plate-type segmentation operations .
4, the machine also has an operating technician interface and the use of engineering technicians interface, operating technicians use the interface to download the relative production of product data, but the data can not be changed, the engineering technician using the interface is the password with the password input after the engineering technician can Download changes to data, etc.

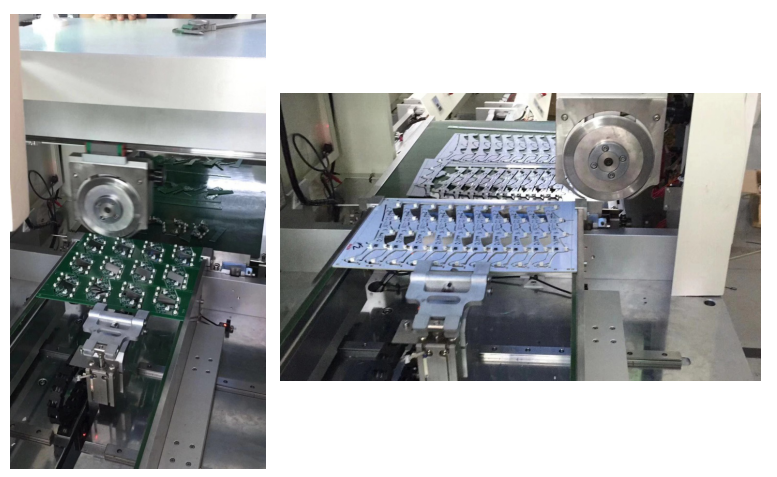

Main internal structure of the machine

Features:

1. High positioning accuracy.

2. The cutting board stress is small.

3. Infrared light curtain induction, high safety performance.

4. Automatic feeding board, cutting board, more efficient.

5. The machine can be connected to the upper and lower board machine, more labor.

Automatic pcb depaneling machine operation process

Features :

1. PLC accurately controls the automation depaneling machine, and the machine can be connected to the pcb loader & unloader machine to realize unmanned operation and fully automated board separation.
2. Automatically feeding boards accurately, saving the trouble of manual v-cut socred, effectively improving the efficiency of the separate boards, and preventing the artificial waste plate from being caused by the slot.
3, The machine can save 100 sets of data, rapid replacement of PCB board, no need to re-write the parameters can be quickly changed board cutting, ordinary staff can quickly operate, a machine to achieve a variety of board type.
4. The stress of the knife-type pcb depaneling machine is relatively small, and it is suitable for PCB types. It is still the best choice for the circuit board with components on both sides, effectively avoiding problems such as dark-injury and cracking.

5.The machine can adjust the width of the feeder to adapt to a variety of specifications of the PCB board.
6. The machine with a conveyor belt, can transfer the divided PCB board to the production line.
7, high security, light curtain and guard knife double protection, ensure safe production.

Technical Parameters:

YUSH Electronic Technology Co.,Ltd  was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
