6000mm/S CCD+MARK Positioning Automatic Laser Marking Machine/Laser Depaneling Mchine

Product advantages:

1. Imported CO2 laser, fiber laser, green laser, and stable performance of UV laser

2, the use of imported high-speed galvanometer, high processing accuracy, marking speed, stable performance

3, the software interface is user-friendly, the operation is simple and easy to learn, and the editing function is powerful.

4, can automatically obtain the work order number, product batch number, material code, product name specifications and other information and automatically code

5, can automatically read the QR code and save the data, automatically record and alarm when it can not be read

6, compared to the ordinary printing method, no consumables, environmental protection, no pollution, maintenance-free

Technical Parameters:

Laser type UV laser, green laser, fiber laser, CO2 laser

Marking range 70mm×70mm----200mm×200mm (depending on laser type, lens type)

Marking speed up to 6000mm/s (actual processing efficiency depends on laser type and laser power)

Marking accuracy ±0.08mm (with special requirements ±0.03mm)

PCB size L510mm×W460mm; thickness 0.5mm-6mm (can be adjusted for special needs)

PCB upper surface height <25mm (can be adjusted for special needs)

PCB lower surface height <25mm (can be adjusted for special needs)

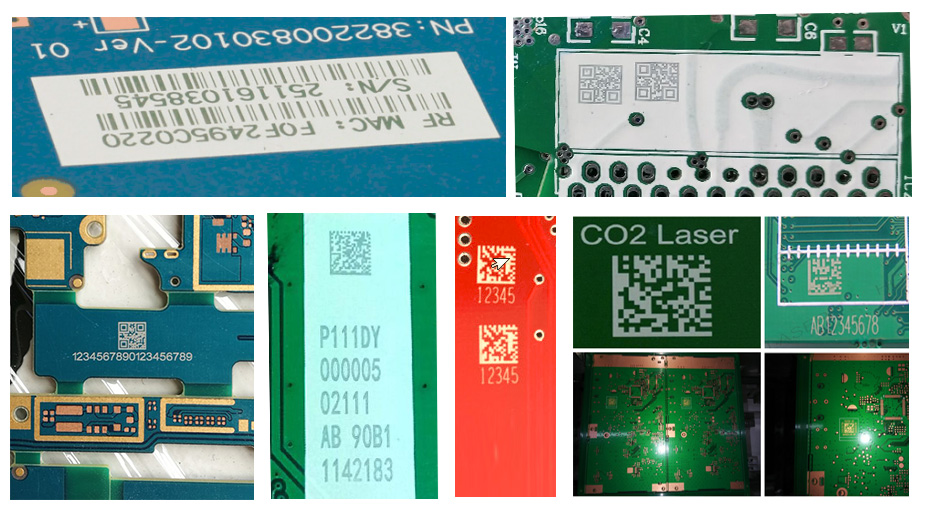

Applicable products PCB hard white ink, green ink, blue ink and other inks; copper, aluminum and so on.

Positioning system CCD+MARK positioning

How it works Laser XY moves

1D code type Code 39, Code 25, Code 93, Code 128, EAN-13, EAN-8, ISBN, etc.

QR code type Datamatrix, QR Code, micro QR Code, PDF417, Code 49, Code 16K, etc.

QR code size 1.5mm × 1.5mm ~ 10mm × 10mm (the smallest processable QR code size depends on the laser type)

Character type Support TrueType JSF, SHX, DMF font

Minimum character height 0.1mm ~ 0.4mm (depending on laser type)

Supported file formats DXF, PLT, Excel, TXT

Positioning function Support automatic photo taking, support 2, 3, 4 point positioning

Reading function Automatically read QR code and save data, automatically record and alarm when it cannot be read

System access can be customized and interconnected with ERP/MES/SAP system, automatically obtain work order number, product batch number, material code, product name specification and other information and automatically code

Conveyor belt width automatically adjusts with the board
