•Provides the fine tuning revise y diagrammatic machine.
•Windows Operational Environment: Easy to learn and operate.
APPLICATION:

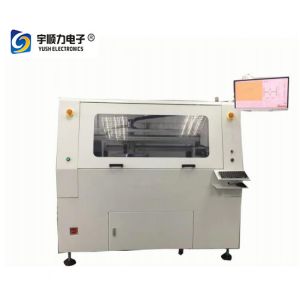

•In-line Automatic PCB Separator can loading, cutting,
identification, unloading automatically,consistent with operation
save labor costs.
•Equip high speed CCD with automatic vision offset at set,
especially for high precision and production of PCB cutting
process.
•Apply to small connected PCB, such as cell-phone, digital camera,
GPS and MODULE, cutting processing.
•Extended size applies to those large PCB of digital TV, PCB
mainframe, workstation, and servo cutting process.
•Standard jig or special purpose jig, to aid in PCB cutting to
increase production, is optaional.
•Placing working pieces on the dual table to less the waiting time
and increase the production.
•You can use variety programs for receiving PC board to achieve
fully automation, saving labor costs.
Loading and Transfer Mechanism:
•Use belt conveyor for loading, track width can be adjusted
automatically.
•PC board will be clamping and positioning automatically after
loading.
•Vacuum suction cup of the transfer mechanism will pick up the PC
board onto the cutting jig automatically.
Unloading and Transfer Mechanism:
•Vacuum suction cup will pick up the finished PC Board and waste
from the cutting jig automatically. Then, put them into unloading
conveyor and wastes bucket.
•Unloading conveyor can be retracted to the machine's inner,
shorten the unloading and transfer mechanism in order to improve
the stroke's efficiency.
•Waste bucket on the side of machine and beneath the unloading
conveyor, easy to operate an can save space.
SPECIFICATIONS:
| ITEMS | SPECIFICATIONS |
| SPINDLE | KAVO spindle Or NSK Japan. |
| CCD | Sony 520 line industrial cameras |
| Valid cutting size | 350*350 mm; |
| PCB Thickness | 0.4-6.0mm; |
| Transmission height | 900±50mm |
| Transmission direction | Left -> Right |
| Transmission speed | 1500mm/s(max)/adjustable |
| Feeding plate type | Section-type transportation guide rail |
| Rail width adjustment | Automatic |
| Communication signal of upper and lower computers | SMEMA |
| PCB Positioning | Upper and lower guide rail clamping |
Picking system | 360°rotary clamping system; 2 groups of vacuum suction nozzles at
most, 4 groups of ESD belt transportation/batch panel forwarding
units at most |
| Cooling type | Air compression |
| ESD monitoring | YES |
| Automatic tool change | YES |
| Cutting stress feedback | YES |
| Out plate type | ESD belt transportation/batch panel forwarding unit |
| Procedure programming | GERBER drawing import/Editing program through visual system |
| PCB Material(Resin) | FR4, CEM1, CEM3 etc. |
| Route Bit Diameter | φ0.8, φ1.0, φ1.2, φ1.5, φ2.0 |
| X,Y,Z Axes Control | AC Servo |
| Loading Method | Track Delivery |
| Unloading Method | Track Delivery or Partition Delivery |
| Transfer Method | Vacuum Nozzle Adsorption |
| Movement Direction | Left→Right / Right→Left |
| Cutting function | Offset to straight line, circular, and arc |
| Process table | Dual tables |
A. Two-dimensional code automatically retrieves the program.
1. Through the rule of a two-dimensional code can be directly
transferred to the
program, convenient, simple, no error;
2. Product switching intelligent.
B. CCD scanning function.
1. Industry-leading PCBA full-board scanning function;
2. Reduce the programming time, cutting the path of real-time
display, easy to
modify simple.
C. Industrial 4.0-MES system
1. The server data is automatically retrieved;
2. upload machine data and production data;
3. Real-time detection of equipment status
