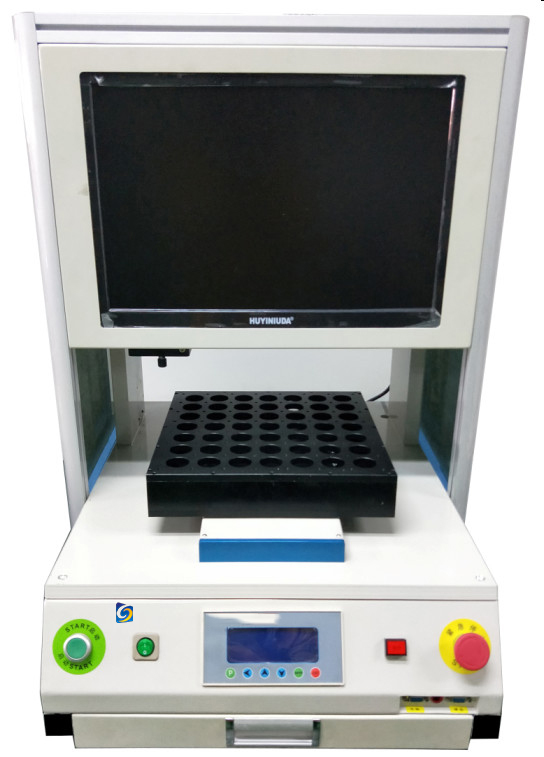

60000rpm 650*550*615mm High Speed Spindle Desktop PCB Depaneling Router

Main uses of PCB table type curve divider:
Suitable for cutting arc and line of finished plate
Suitable for cutting small multi board, such as mobile phone base plate, PDA, PC interface card, etc

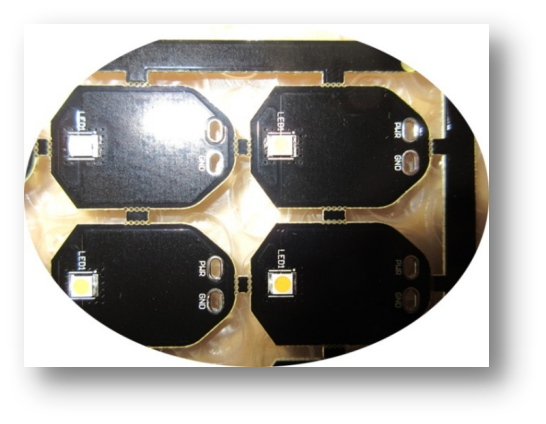

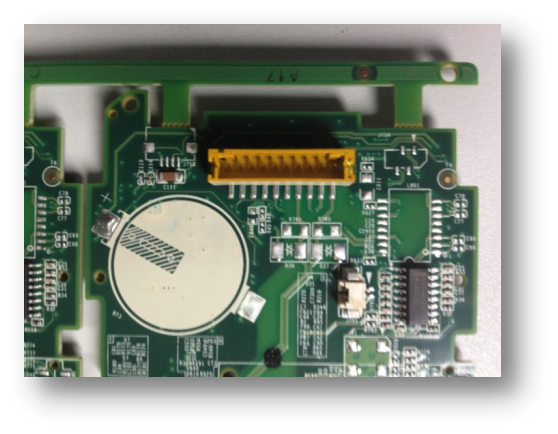

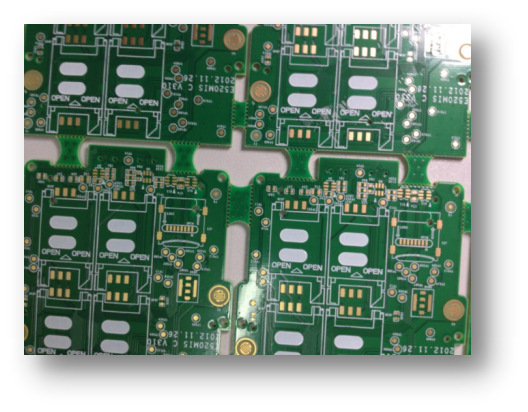

The application of YSATM-3L in the related products:

Advantages:

Practical, trajectory programmable; low stress; V-CUT machine can not be realized.

Avoid tin crack and parts damage caused by artificial folding.

Avoid using punching or folding, which may cause mechanical stress problems.

Features:

1. Bench type single table cutting machine, with a speed of up to 100 mm / s and a positioning speed of 500 mm / s.

2. High quality shaft system enables the system to accelerate and decelerate quickly, reduce the synchronization time, improve productivity, and maintain high precision.

3. Use high-quality hardware to ensure high rigidity and high performance.

4. All guide screws are covered to prevent dust and dirt from entering, so as to improve the service life and performance of the shaft.

5. Avoid tin cracking and parts damage caused by artificial folding.

6. Avoid the use of punching or folding, resulting in mechanical stress problems.

7. It is suitable for cutting arc and line of finished plate.

8. It is suitable for small multi wrench cutting, such as cell phone base plate, PDA, PC interface card, etc..

Technical Parameters:

1. Drive system motor:stepping motor
2. Spindle:high speed spindle
3. Cutting performance:500mm/s
4. Repeated accuracy of driving system:±0.02mm
5. Cutting speed:max. 100mm / s depends on circuit board material and cutting quality
6. Resolution:±0.01mm
7. Configuration:X, y, Z three axes, stroke: 300 * 300 * 100mm, stroke can also be customized.
8. Repeated cutting accuracy:< 0.05mm, for the contour of straight line and curve
9. PCB positioning:special or standard fixture
10. Loading and unloading mode:manual mode
11. Thickness of circuit board:0.4mm-4mm
12. Safety setting:emergency stop switch of the whole machine, emergency stop switch of the main shaft,overheat of the main shaft motor and overload detection of the servo motor
13. Spindle motor:
Power: 0.3kw
Maximum speed:60000rpm
Cooling mode:air cooling
14. Machine size:650*550*615mm
15. Weight:73KG
16. Programming mode:keypad input teaching
17. Data storage capacity:100-200 groups of files
18. Control mode:microcomputer control, online teaching programming, CAD file import
19. Transmission mechanism:guide rail + screw rod (Taiwan)
20. Vacuum cleaner:1.5kw, 220V; size: 710 * 390 * 680mm; it can work continuously for 24 hours
21. Vacuum method:underside vaccum
22. Safety measures:equipped with protective cover

Related Products

According to the customer's requirements, the PCB desktop curve board divider can be customized (stroke 400 * 400 * 100mm)

PCB floor type curve divider jydl-3a (stroke: 400 * 550 * 100mm)

PCB desktop curve divider (stroke 400 * 400 * 100mm)
