330×220mm 930×880×1750mm PCB/FPC/LED Punching Machine
YSPE PCB/FPC Punching Machine Feature:
1,PCBA Punch Machine is punch mold machine.
2,Equipment,compact structure,solid body,cylinder
bore125,160,200AirTAC.
3,Equipment running smoothly,low vibration,low noise.
4,English touch screen display,clear panel,alarm function showed
abnormal warning glance.
5,Machine generality.Can replace a variety of mold and die change
quick and easy
6,DeviceSecurity:
6.1.Double switch start operation.
6.2.Device configuration mode and out of the chute,and out of the
lower mold automatic pick and place convenient and safe products.
6.3.Set the emergency stop switch,identify problems and timely
shutdown.
6.4.Set security doors,installation and commissioning of the mold
to avoid straying hands.(Normal operation with out security door
doesnot work).
6.5.Set security door grating sensing device,placed in the wrong
plate on the mold of the injection device can sense the
mistakes,the mold cannot enter.
6.6.Safety pressure setting function,limit alarm.Automatic
counting,limit down time.
7,The internal stress generated when the cutting board to a minimum
and to avoid cracking of tin.
8,Punching semi-finished PCB,FPC high efficiency.
Machine specifications:
| Machine size: | 930×880×1750mm |
| Output | 3T/8T/10T |
| Cylinder return Opening Force | 1.5T 4T 5T |
| Working pressure | 0.50-0.70Mpa Dry air supply |
| Working Area | 330×220mm |
| Power | 220VAC |
| Punch Speed: | 8～15s Can adjustable(Not include put boards and pickup time) |
| work plan | ≥60mm |
| Work Noise | ≤60dB |
| WorkingAccuracy: | ±0.05mm |
| Machine weight | 680kg |
Customized small punch machine
Aluminum
PCB Punching Machine Exporters - YSPE
1.Depaneling PCB/FPC by means of punching dies, to avoid
micro-cracks caused by manual.
2.Cast iron framework for rigidity. Punching dies are changeable.
Easy set up of punching dies.

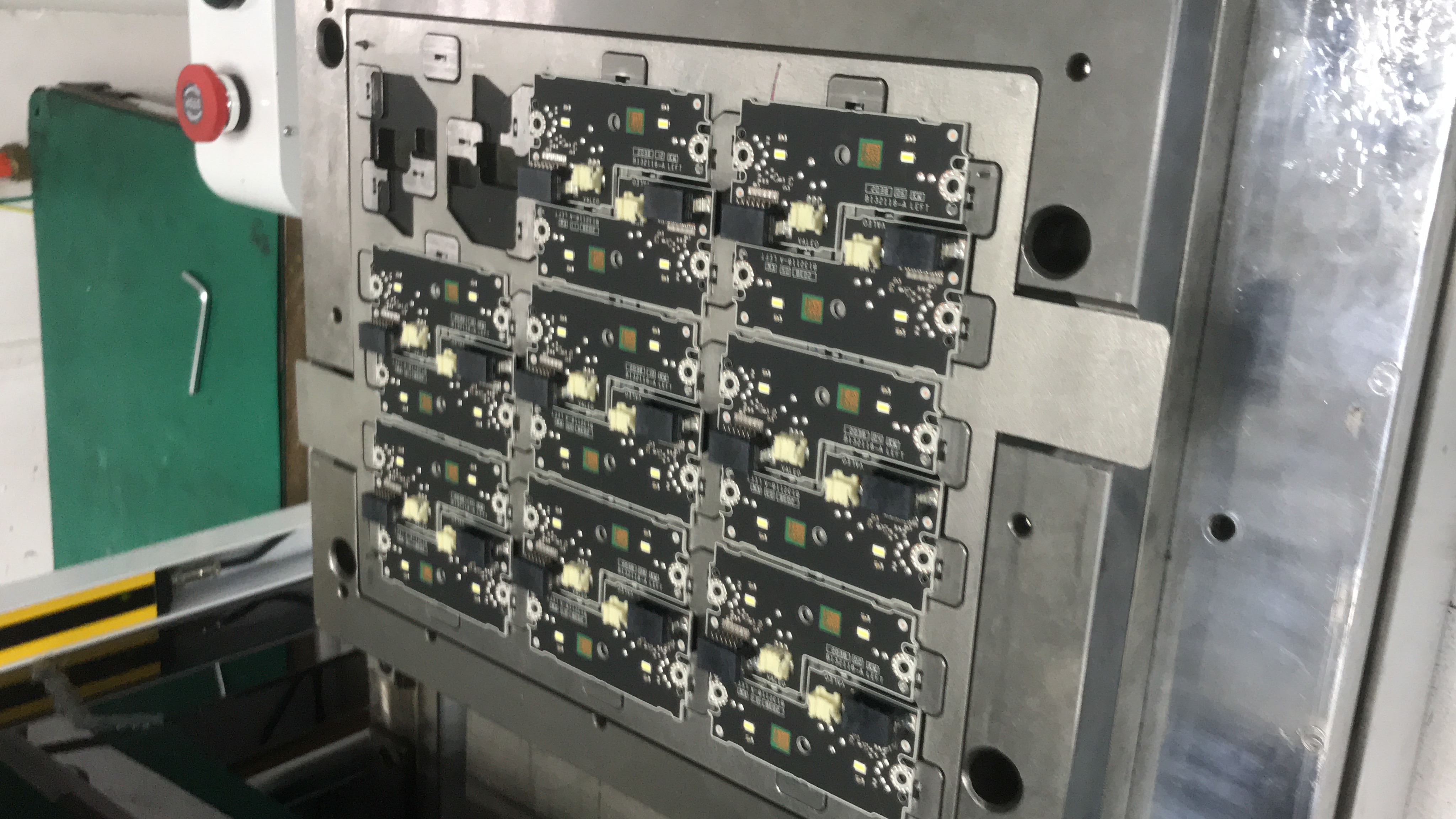

3.Moveable lower die for easy loading and unloadingPCB punch die|
FPC die| PCB punch mold| FPC mould
features: 1. high degree of automation, simple operation and safety
2. can replace a variety of mold, and mold changing easily
3. the lower mold automatic in and out, easy to pick and place
products, finished products can fall into the drawer
4. make internal stress generated by PCB singulation press to
minimize and avoid stress cracking of tin
5. punching singulation semi-finished PCB, FPC with more high
efficiency
6. mold and die can be made according to customer's requests
Punching mold PCB singulation machine
1. high degree of automation,high efficiency,simple operation
2. can replace multiple mold for production and mold changing
easily
3. apply to cut rigid pcb,flexible pcb(FPC),rigid-flexible pcb
