355nm 10W /15W High-Precision CCD FPC/PCB UV Laser Cutting Machine

With Perfect CAM interface, it supports the mainstream of the drilling and milling file format; man-machine interface is friendly; optical path is sealed, and it also has stable and reliable integration of compact structure; with modular electronic control system, it’s easy for maintenance.

Used in the procession of the soft and hard combination board (R-F PCBA), including the soft board, soft and hard combination board, which greatly improve the equipment adaptability and lower the price.

FPC UV laser cutting machine application:

1.Used in cutting a variety of flexible circuit board materials and cover film, clean and free carbonization;cutting rigid material With high quality, high speed, the thickness of up to 1mm (0.04 ").
2.Because the UV light is through decomposition and vaporization rather than melting , almost no burrs left after processing.
3.Thermal effect is small, no stratification but after cutting, the cutting edge is precise and smooth, and the sidewall is steep. Can cut a variety of substrate materials, such as silicon, ceramics, glass, etc ;
4.Various functional film of precision etching forming.

YSV-7A is designed for the FPC industry to develop a dedicated machine, fine laser beam control and stability of ultra-fast laser pulse, you can cut any complex graphics to ensure product quality.

YSV-7A Product feature:
1.After cutting the edges are neat and smooth
2.Don’t produce burrs, there will be no dust / particles residue high precision, especially for small arc and other fine cutting high precision, especially for small arc and other fine cutting

3.Effectively reduce the molding failure rate
4.A composite workpiece with a variety of materials and a combination of different thicknesses can be cut once
5.The laser head can automatically adjust the height, easy to handle double-sided surface-mounted FPC.

No contact will not produce any mechanical stress and deformation.

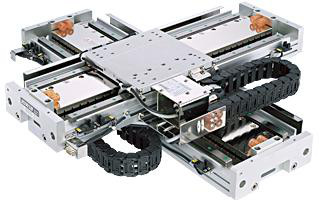

Linear motor platform speed, high precision, low wear and tear, easy maintenance, low maintenance costs.

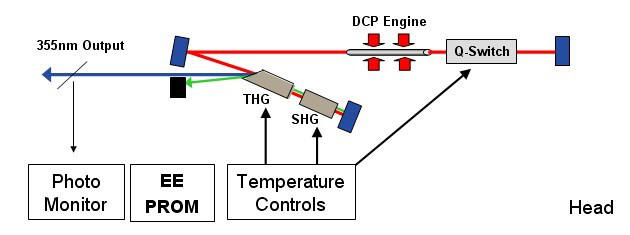

Laser source:

Using the United States imported UV shock Light, excellent optical performance, long life, simple structure, easy to operate. This brand has been use for over 10 years.

Galvanometer system :

Using the most advanced galvanometer system in the world.

Equipped with Feedback and automatic calibration equipment Set to ensure the efficiency of processing rate and accuracy.

1.Marble using high-quality "Taishan green" stone by mechanical processing and hand-made fine grinding.
2.Black luster, fine structure, uniform texture, good stability, high strength, high hardness,it can maintain high precision under heavy load.
3.Rock platform has no rust, bearing acid, and resist abrasion

Features:
► Accuracy class: "000" level, flatness 2um
► Compressive strength: 245 ~ 254 N / mm2
► Elastic modulus: 1.27 ~ 1.47 N / mm2, higher than cast iron
► Linear expansion coefficient: 4.61 × 10-6 / ℃
► Inner damping coefficient: 15 times larger than steel, good rigidity, can shock, shock absorption.
► Shore strength: HS70 above, good wear resistance, 5 to 10 times higher than cast iron to 10 times higher than cast iron

4.CCD

High speed image acquisition system and High-precision image positioning and matching system which ensures the High precision

5.Working platform

THK(China)investment
THK Is the largest suppliers of precision linear motion guide, ball spline, ball screw, cross roller collar, actuators and other product.

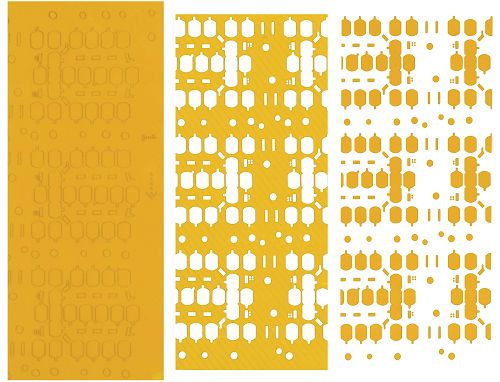

FPC UV laser cutting effect diagram
