PCB SMT Laser Template Cutting Machine

Ask Lasest Price
Brand Name :	YUSH
Model Number :	YS-GW100W
Price :	$65,000 / set

Add to Cart

Product Details
Company Profile

PCB SMT Laser Template Cutting Machine

The YS-GW100W represents Yush's latest generation of SMT laser template cutting machines, featuring significant improvements in both performance and user-friendly operation compared to previous models. Engineered to meet market demands, this machine delivers exceptional cutting quality while maintaining high cutting speeds, offering performance comparable to imported equipment with superior cost-effectiveness.

Capable of high-precision cutting for various materials including stainless steel, carbon steel, galvanized sheet, silicon steel sheets, titanium alloys, copper, brass, aluminum, and ceramics.

Technical Specifications

Model	YS-GW 300	YS-GW 100W
Laser Power	50W/100W/200W	50W/100W/200W
Wavelength	1070nm
Beam Quality	M²<1.1
Working Area	600mm × 600mm	650mm × 650mm
Clamping Size	650mm × 720mm
Cutting Thickness	0.3mm	1.0mm
Cutting Speed (pad/h)	Approximately 19,200	Approximately 24,000
Overall Dimension	1640mm × 1380mm × 1500mm
Weight	Approximately 2200Kg
Positioning Accuracy	±2μ
Repeated Positioning Accuracy	±2μ
Supply Voltage	220V
Power Consumption	<2KW
Upper Computer	Adavantech
Operating Software	SmartCut
Cut Document	LMD, CNC, DXF
Auxiliary Cutting Gas	Oxygen 8-10Kg, Compressed air 16Kg
Main Material	Savageness Granite

Note: The above model laser power can be ordered according to customer needs.

Key Features

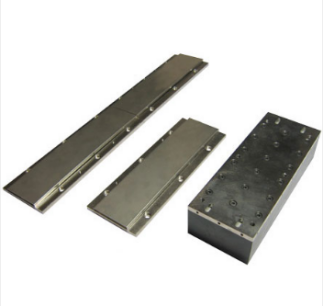

Iron core linear motor with double driver structure provides large thrust and maximum acceleration up to 2.0G, ensuring precise movement at high speeds
Imported IPG fiber laser delivers stable output power, long lifespan, maintenance-free operation, smooth hole processing, and consistent processing stability
US-imported drives with high-end adjustment and tuning algorithms significantly improve cutting performance and ensure machining accuracy
Natural marble base structure provides safe and stable operation
High-precision grating full-closed loop system enables real-time feedback to reduce repetitive positioning errors
Low energy consumption with total machine power consumption of approximately 2.5KW/h

PCB SMT Laser Template Cutting Machine overview

Close-up view of laser cutting mechanism
