Strong and Stable Mechanical Design Double-track Plate Collector

Strong and Stable Mechanical Design Double-track Plate Collector

This industrial-grade double-track plate collector features a robust mechanical design engineered for precision and reliability in PCB handling applications.

Technical Specifications
External Dimensions: L1600 × W1500 × H1660 mm
Magazine Specification: W320 × L355 × H570 mm
PCB Specification: L330 × W250 mm
Lift Platform Pitch Selection: 10, 20, 30, 40, 50 mm
Key Features
  • Special national standard frosted aluminum profile guide rail with thousand-bird plastic chain
  • 90W Taiwan-made right-angle motor drives ball screw for magazine step up/down movement
  • Yadeke pneumatic clamp structure for secure holding
  • Includes 0.65M long transplantable push plate conveyor system
  • Huichuan PLC programmable controller for precise operation
  • Taiwan-made joint-venture display and control touch screen interface
Product Visualization

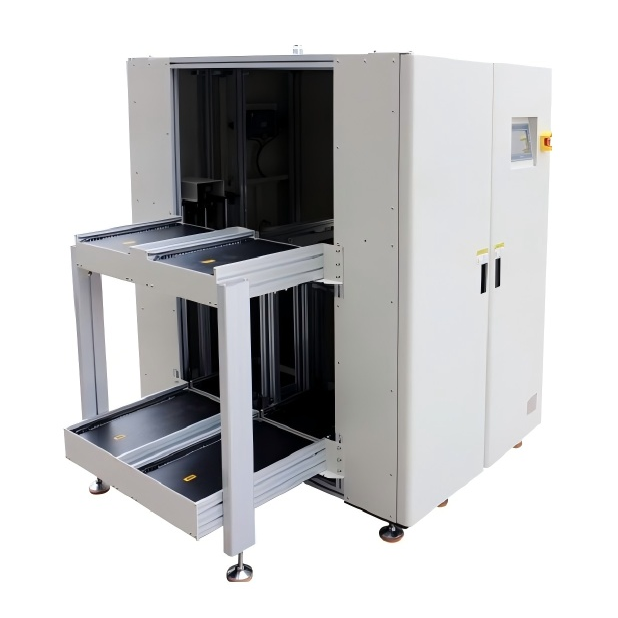

Double-track Plate Collector mechanical design and components Close-up view of double-track plate collector mechanism
