high quality Full Pneumatic Stencil Cleaning Machine Weight 240kg

Ask Lasest Price
Brand Name :	YUSH
Model Number :	YSL-600
Certification :	CE
Price :	USD1000~10000
Payment Terms :	L/C, D/A, D/P, T/T,
Supply Ability :	200Sets/Month
Delivery Time :	5-7work days

Add to Cart

Product Details
Company Profile

high quality Full Pneumatic Stencil Cleaning Machine Weight 240kg

0.4Mpa~ 0.6Mpa Pneumatic Stencil Cleaning Machine For Solder Paste Stencil Glue Cooper/Rubber Stencil

Pneumatic Stencil Cleaner

Model:YSL-600

YSL-600 Main Features:

All stainless steel body: beautiful, wear resistance, corrosion resistance, in line with

environmental requirements and standards;

Ø Full pneumatic operation, no electricity, no fire and other safety risks;

Ø Side wall air intake blow-drying design;

Ø User-friendly design: one-button operation and automatic filling and draining function, easy

to operate;

Ø Replaceable modular controller and quick-plug design make maintenance easy and

convenient.

Ø Two-stage filtration system, low exhaust and S-shaped exhaust duct design: solvent

recycling, low liquid consumption; Ø High density isobaric double rotating cleaning nozzle,

strong cleaning power, does not damage the tension of steel mesh.

Ø Systematic integration of global quality control devices to ensure excellent quality, stable

performance and long service life;

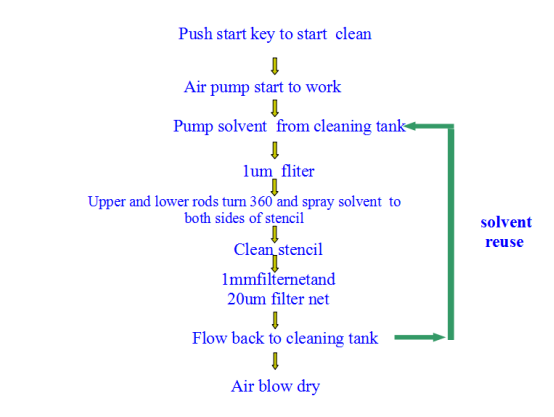

YSL-600 Flow chart:

YSL-600 main spec:

S/N	ITEM	SPEC	REMARKS
1	Stencil size	750mm(L) ×750mm(W) × 40mm(H)as max
2	Liquid tank capacity	40L(as max)
3	Wash method	360°double side rotary nozzles liquid spray wash
4	Dry methods	360°double side rotary nozzles spray liquid air blow dry
5	Clean time	2-4 min(solder paste stencil)
6	Dry time	2-5min(solder paste stencil)
7	Filter systems	1mm SUS 304 fliter net—Protect pum； 20um filter bag — for lables, screws; 1um filter elements— for solder balls,red glue.	Liuqid recirculation use
8	Air supply	0.4Mpa~ 0.6Mpa
9	Air consumption	400-600L/min
10	Net weight	240Kg
11	Vent size	Φ120xH30mm
12	Machine size	800mm(L)×950mm(W)×1650mm(H)

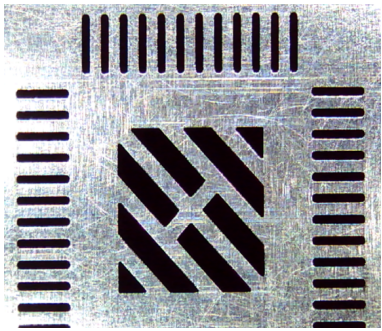

Cleaning result comparision

Before cleaning

After cleaning

solder paste stencil red glue rubber stencil

red glue cooper stencil

Standard equipped with solvent add in and discharge function. Solvent add in and discharge very convienent.

Super wel-known pneumatic parts guarantee a stable, reliable and high quality machine and good clean result.

Maintenance and maintenance

1. Automatic filling and draining
2.Controller maintenance
3.Replaceable modular controller and quick-plug design
4. Maintenance,maintenance is simple and convenient
