2.High precision control platform
3.The motion platform adopts the double driver
system,high-speed,stable,no vibration,no noise
FUNCTION MODULE:

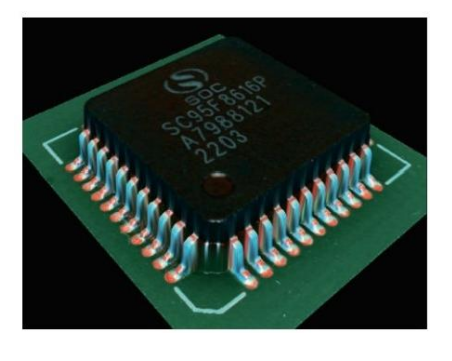

1.The unique 3D point cloud reconstruction technology can gratly
improve the detection accuracy and detection avility,can
effectively cover the 2D detection blind area,2D is difficult to
detect the IC foot,the buoyancy of parts can reach 100%detection
rate.
2.Under the deep coordination of 12MP high-definition COAXPRESS
ultra-high speed camera and several sets of 1080P digital
projection units,through multi-stage RGBW four-color LED tower
light source,360°non- dead angle digital projection and efficient
image acquisition and real effect can be achieved.
3.Phase measuring profilometry(PMP)based on the sinusoidal motion
projection by structure grating,the multiple images by discrete
phase shift,to calculate the phase distributon by multi-phase,the
triangulation and so on to get the high- precision outline and
volume of the object,to achieve the display of true-color 3D
stereoscopic images.
Camera | High-Speed CCD 12MP(25MP for option) |
Lens | Telecentric Lens |
Projection system | 4 directional projection gratings |
Light | Ring RGBWLED Light |
Resolution | 15μm(可选12μm,10μm,8μm |
FOV | 60×45mm(15μm)/48×36mm(12μm)/40×30mm(10μm) |
Height resolution | 0.4μm |
Height Accuracy on a Certificated Target | ±3μm |
GR&R | ≤10% |
Shift Position Accuracy | 10μm 5μm 10μm 5μm |
Inspection Type | Missing,shift,skewed,tombstone,bilboard,overturned,reversed
polarity,wrong,damaged,overlow,insufficient,short,dimension. |
PCB Warpage | ±5mm(2%) |
Top side/Bot side clearance | 40/40 mm |
PCB Thickness | 0.5-5.0mm |
Company Profile
YUSH Electronic Technology Co.,Ltd was founded in 2005,is located
in the world manufacturing city Jiangsu,Guprofessional pcb
separator/pcb depanelizer electronic equipment machinery. The
company has advanced production and processing equipment and an
experienced development and manufacture team,half of them have over
10 years experience in electronic equipment industry.
Begin with 2004 the company leader invested to develop and
manufacture the PCB separator and PCB depaneling machine.From then
on we pay more attention to product quality,safe to use and product
innovation,so far we have produced many high quality, stable
performance, high cost-effective products. Improve production
yields, increase productivity, and thus enhance the market
competitiveness of our customers. Until now we have design
different separating PCB types of PCB separator and PCB depaneling
machine with manual,motor-driven,pneumatic-driven,mold
punching,milling cutter router.Due to the good quality and
reasonable price our customers are all over the world.Up to now
YUSH have became one of the biggest PCB separator production base
in China.
