PCB Desktop Pcb Route YS-JYD-3A

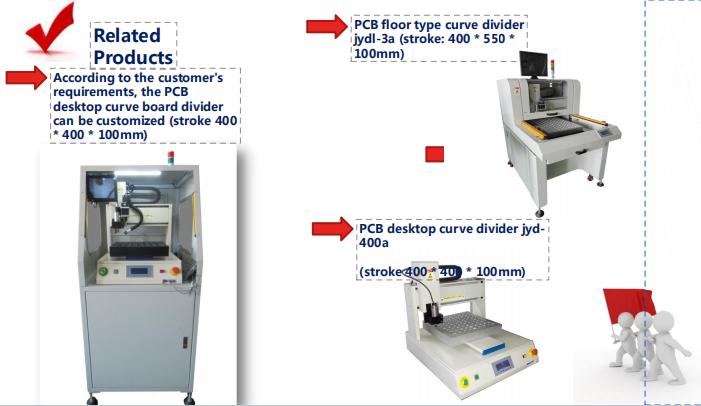

The application of jyd-3a in the related products

Advantages

• Practical, trajectory programmable; low stress; V-CUT machine can not be realized
• Avoid tin crack and parts damage caused by artificial folding
• Avoid using punching or folding, which may cause mechanical stress problems

1. Bench type single table cutting machine, with a speed of up to 100 mm / s and a positioning speed

of 500 mm / s.

2. High quality shaft system enables the system to accelerate and decelerate quickly, reduce the

synchronization time, improve productivity, and maintain high precision.

3. Use high-quality hardware to ensure high rigidity and high performance.

4. All guide screws are covered to prevent dust and dirt from entering, so as to improve the service life

and performance of the shaft.

5. Avoid tin cracking and parts damage caused by artificial folding.

6. Avoid the use of punching or folding, resulting in mechanical stress problems.

7. It is suitable for cutting arc and line of finished plate.

8. It is suitable for small multi wrench cutting, such as cell phone base plate, PDA, PC interface card, etc.

Technical Parameters

1. Drive system motor:stepping motor

2. Spindle:high speed spindle

3. Cutting performance:500mm/s

4. Repeated accuracy of driving system:±0.02mm

5. Cutting speed:max. 100mm / s depends on circuit board material and cutting quality

6. Resolution:±0.01mm

7. Configuration:X, y, Z three axes, stroke: 300 * 300 * 100mm, stroke can also be

customized.

8. Repeated cutting accuracy:< 0.05mm, for the contour of straight line and curve

9. PCB positioning:special or standard fixture

10. Loading and unloading mode:manual mode

11. Thickness of circuit board:0.4mm-4mm

12. Safety setting:emergency stop switch of the whole machine, emergency stop switch

of the main shaft,overheat of the main shaft motor and overload detection of the servo

motor

13. Spindle motor:

Power: 0.3kw

Maximum speed:60000rpm

Cooling mode:air cooling

14. Machine size:650*550*615mm

15. Weight:73KG

16. Programming mode:keypad input teaching

17. Data storage capacity:100-200 groups of files

18. Control mode:microcomputer control, online teaching programming, CAD file import

19. Transmission mechanism:guide rail + screw rod (Taiwan)

20. Vacuum cleaner:1.5kw, 220V; size: 710 * 390 * 680mm; it can work continuously for

24 hours

21. Vacuum method:underside vaccum

22. Safety measures:equipped with protective cover

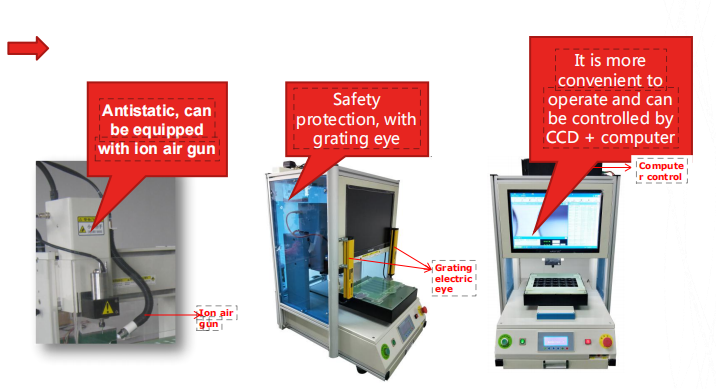

Configures:

1.Supporting 24-hourindustrial dust collector

2.Matching routing knife

3.ToolEquiped

SelectiveMounting
