    High quality Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400

    Ask Lasest Price
    Brand Name : YUSH
    Model Number : YSVC-2/YSVC-200/YSVC-400
    Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
    Price : USD3000
    Payment Terms : T/T ,Paypal ,West Union ,L/C ,D/P .
    Supply Ability : 300 sets/ month
    Delivery Time : 3 days
    • Product Details
    • Company Profile

    High quality Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400


    High Quality Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400
    Feature
    ●Separates boards up to 3.5mm thick;
    ●Shears boards safely with parts as close as 0.5mm to the score line,including
    ceramic capacitors;
    ●Operator foolproof! Panels cannot be inserted into the knives except on the
    score line;
    ●Pneumatically driven;
    ●Handles high components up to70mm;
    ●Bow waves that can occur with round knives are avoided;
    ●Easy adjusting of distance between knives.

    ● Adjust blades to PCB score line using rotary knob.
    ● Boards are separated without bending or breaking.
    ● Safe for use with flexible and thin (to 0.5mm) PCBs.
    ● Smooth, quiet pneumatic-powered unit with foot -pedal activation.
    ● Wedge-shaped linear blades contour to v-groove score lines and operate in a rocking motion.
    ● Can be used with aluminum and other substrates, including substrates with metal inner layers.

    Pneumatic PCB depaneling machine Specifications
    Model
    YSVC-200
    YSVC-2
    YSVC-400
    Dimension
    450*200*460mm
    620*230*400mm
    960×425×350mm
    Blades length
    200mm
    330mm
    400mm
    Air requirement
    0.7Mpa
    0.7Mpa
    0.7Mpa
    Cutting thickness
    0.6~5.0mm
    0.6~5.0mm
    0.6~5.0mm
    Minimum component distance from v-groove
    1mm
    Voltage
    220V,50HZ, 110V,50HZ(option)
    Max component height
    70mm
    Machine weight
    130kg
    185kg
    210kg
    Machine Warranty period
    One year

    Machine drawing


    Machine video reference URL
    https://www.youtube.com/watch?v=07Gl10z1xIg
    https://www.youtube.com/watch?v=AJMoFzCl-8c
    https://www.youtube.com/watch?v=JWDAggG3wUI YSVC-200

    PACKAGE PHOTO

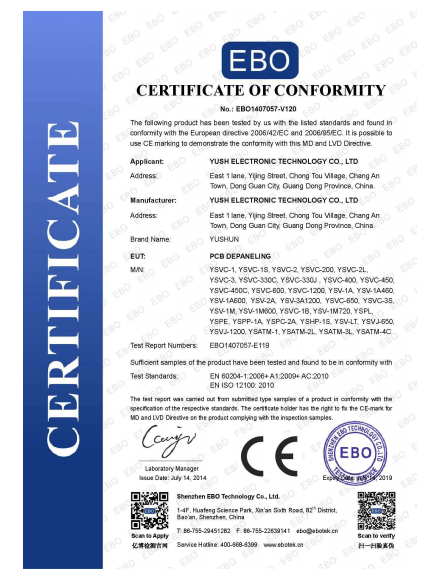

    Machine CE certificate
