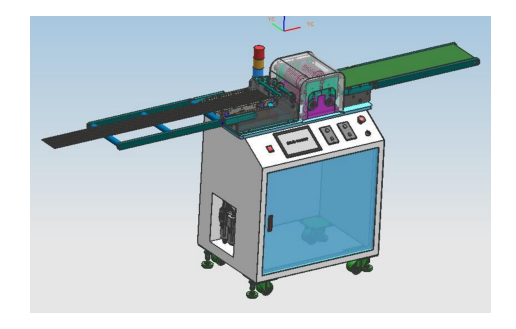

Multiple Groups Of Blades PCB Depaneling YSVJ-650 Machine

The machine is equipped with standard upper and bottom 20 groups of blades which can separate the 10 lines or more LED light bars at same time.all blades are made of endurable SKD11 high speed steel.PCB clamping and conveying system ensure precise separating without deformation and burrs.The machine adopts touch screen and PLC control system which can monitor production information,easy to operate.

Full english operation interface , easy to operate.

Features

● The conveying speed can be adjusted.

● The single separated PCB width is 8-20 mm. Max cutting width 300mm;

● Machine with automatic feeding system;

● Machine with automatic feeding system;

● Suitable cutting material of PCB :aluminum ,FR4,glass fiber.

● Equipped with SMEMA connector ,easy to connect with upstream machine

● The machine adopts the touch screen and PLC which can monitor production information.

● MDS-900 is equipped with multiple sets of blades which can separate the whole light

bar board one time.

● The distance between upper and lower cutter can be precisely adjusted, the separating

thickness of PCB range is : 0.8MM-3.0MM.

Machine video reference URL

https://youtu.be/czQ03KyM25A

https://www.youtube.com/watch?v=QUnMw7ngzTw

Cutting Width is widened

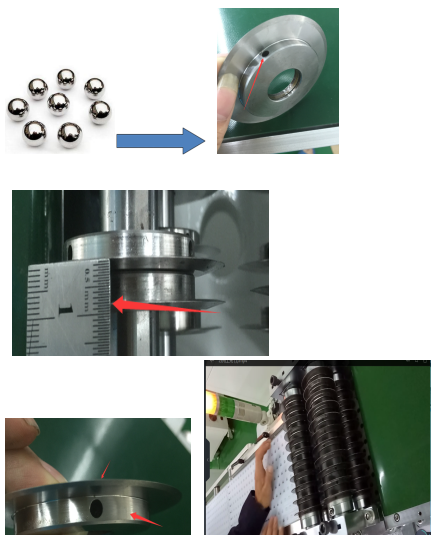

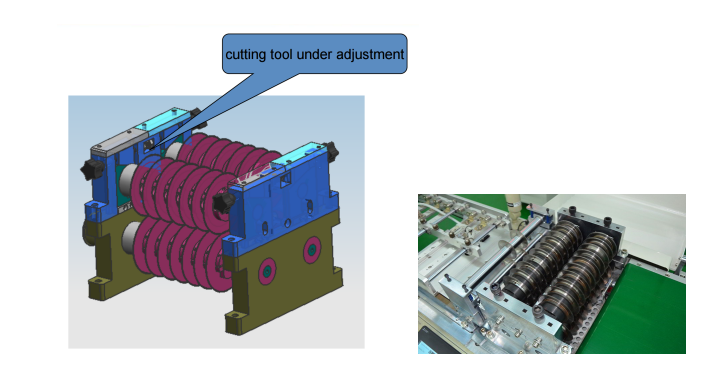

Multiple Groups Of Blades Introduction:

a. For convenient replacement and adjustment on Blade;

b. Blade Material: SKD11 imported from Germany;
c. Minimum gap distance amount blades is 8mm;

d. fine-tuning as will;

e. Blade thickness 6mm;
d. Edge thickness 0.2mm;

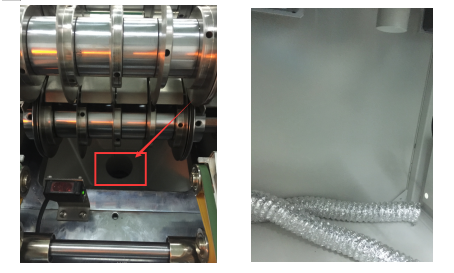

Vacuum Cleaner (Dust cleaner)

Standard configuration:

◎ Multiple Groups Of Blades PCB Separator.

◎ 40 pcs of blades installed on the machine.

◎ 1 year parts warranty

Optional configuration:

◎ SMEMA connector

◎ Circular blade 900*40pcs

◎Package free.

Warranty

One year of warranty, blade life is one million times, can be polished for 2 to 3 times.

Machine Package Photos

Machine cerfificate

YUSH Electronic Technology Co.,Ltd  was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
