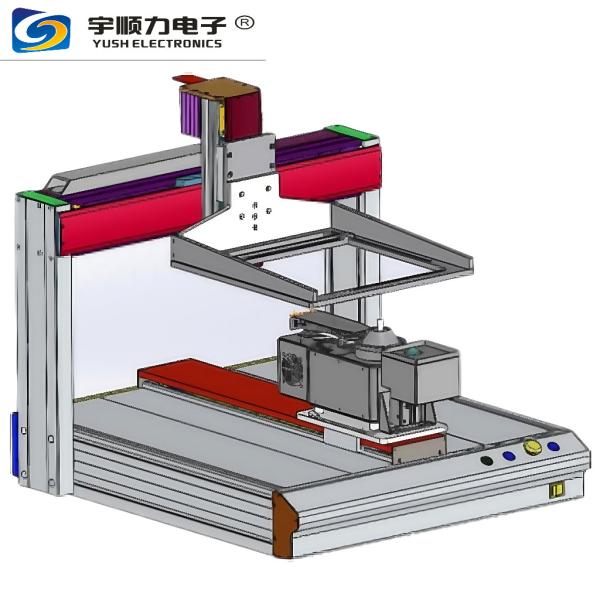

High Efficiency /High Quality Desktop selective wave soldering YS-E320 For SMT Production line

    Buy cheap High Efficiency /High Quality Desktop selective wave soldering YS-E320 For SMT Production line from wholesalers

    Buy cheap High Efficiency /High Quality Desktop selective wave soldering YS-E320 For SMT Production line from wholesalers
    • Buy cheap High Efficiency /High Quality Desktop selective wave soldering YS-E320 For SMT Production line from wholesalers

    High Efficiency /High Quality Desktop selective wave soldering YS-E320 For SMT Production line

    Ask Lasest Price
    Brand Name : YUSH
    Model Number : YS-E320
    Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
    Price : USD19000
    Payment Terms : L/C, D/P, T/T, Western Union,Paypal
    Supply Ability : 100set
    Delivery Time : 3-5dyas
    • Product Details
    • Company Profile

    High Efficiency /High Quality Desktop selective wave soldering YS-E320 For SMT Production line

    High Efficiency /High Quality Desktop selective wave soldering YS-E320 For SMT Production line


    Description

    Specification items

    YS-E320

    Applicable PCB board size

    L*W : 50×50~450×400 mm

    Applicable PCB board thickness

    Substrate thickness:0.8~3 mm / Pin length:Within 3mm

    Component height

    Less than 100mm above the substrate / Less than 50mm below the substrate

    Substrate shape and conditions

    1.Substrate placement edge:The edge of the substrate process is more than 3mm

    2The weight including components is less than 5 kilograms

    3.The bending of the substrate: less than 0.5mm

    Tin furnace

    Tin furnace material/capacity:Stainless steel material / 10KG tin tank capacity:Power:4*500W 2 KW

    N2 Requirements

    Nitrogen purity:99.999%

    Pressure/Consumption:0.5MPa / 20ℓ/min~30ℓ/min /

    1.2-1.5Cube H

    Flux nozzle

    Precision fluid nozzle

    Flux capacity

    2 L (Manual liquid addition)

    Gas source

    0.5-0.7Mpa

    Nozzle inner diameter

    φ 3mm~φ 20mm Customizable size

    Peak height

    Automatic alignment/height measurement

    System control

    PC+PLC(windows+Huichuan)

    Programming software

    Support programming for drawing lines on pictures(Convenient and fast)

    Power supply/power

    Single-phase 220V±10% Starting power:2.5KW

    Weight

    70KG (Containing solder10KG)

    External dimensions

    L*W*H 730×800×840 mm

    Preheat the top of the PCB board(Optional)

    A 1KW infrared heating tube is adopted to preheat the PCB board before soldering,which meets the high temperature requirements of special components, reduces the thermal shock of components, activates the activity of flux, improves the tin penetration of component pins, and enhances the soldering quality.

    Preheat the bottom of the PCB board

    Preheating the bottom of the PCB board

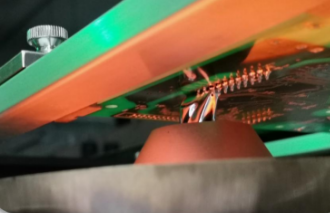

    Taking advantage of the fast heat conduction speed of infrared rays, the PCB board is preheated before soldering and maintained at the set frequency during soldering to prevent temperature drop of the PCB board during soldering.

    It belongs to the design principle of "preheating + soldering" carried out simultaneously, whichimproves the soldering efficiency and the tin penetration rate of components, and reduces the thermal shock caused by the sudden heat of heat-sensitive components. The cleanliness ratio

    of the PCB board after soldering is relatively high.
