PCBA Single-Sided Cleaning Machine YSL-660

Device overview

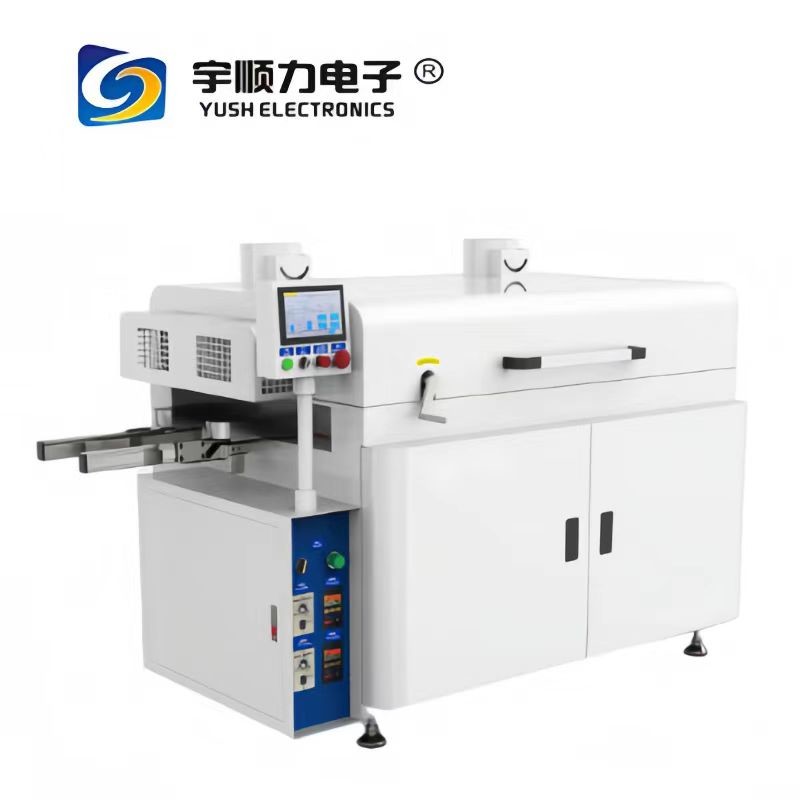

YSL-660 series automatic PCBA board cleaning machine; is an on-line automatic PCBA board special cleaning machine, suitable for traditional board washing water, without manual contact with cleaning agent, the equipment combines PCBA board transmission technology with brush cleaning technology Combined, multiple brushes in all directions, front, back, left and right, cleaning without dead ends, to ensure that the PCBA board meets the cleanliness requirements. It is suitable for cleaning the welding surface of single-sided PCBA board, and will not wet the front components.

Machine Features

1. The machine has a unique body structure, stable performance and the highest cleaning effect in the industry.

2. It is specially used for the cleaning of tin beads, flux traces and scratches.

3. Imported brown brush, anti-static brush, will not generate static electricity and will not hurt the PCBA board.

4. It is suitable for PCB boards with board edges, (the board edge distance is at least 1.5mm), and the PCBA board adapts to the width range.

5. Thickened shrapnel claw ensures that the PCBA board will not shift during transportation.

6. Cleaning agent automatic coating system: ensure that the welding surface of the PCBA board can be evenly coated with washing water without affecting the surface of other parts.

7. Disc brush + two rollers: ensure that the PCBA board is cleaned in place in all directions without dead ends.

8. The cleaning brush height and speed (stepless speed change) can be adjusted to adapt to different levels of cleaning needs.

9. The waste generated by the work is automatically gathered in the filter box at the lower part of the machine, which is convenient for cleaning.

10. Driven by high-quality electronic speed-regulating motor, the motor speed is steplessly adjustable and durable.

11. Powered by 220 volts. Easy to use.

12. Adopt brand electrical appliances and control system to ensure the reliability and stability of the control system.

13. Adopt modular control.

PCB/PCBA

Structure and function

1. Equipment structure: including feeding and connecting mechanism, transportation mechanism, brush cleaning system, circulating filter system, air drying system, PLC program controller, and other automatic control systems. Each system is an independent modular design, easy to operate and easy to maintain.

2. The whole machine is automatically controlled by PLC, with complete functions and two operating modes, automatic and manual. The automatic mode (economy operation mode) can significantly reduce the consumption of cleaning agent and electric energy.

3. The disc brush and the roller brush simultaneously clean the bottom of the PCB A board in all directions, front, back, left and right, and there is no dead angle for cleaning;

4. Cleaning module Equipped with a completely closed three-stage automatic circulation filtration system, which continuously filters and cleans the stains, so that the cleaning liquid is always maintained at a high level of activity, and the cleaning liquid is recycled.

5. The cleaning liquid tank is equipped with low liquid level alarm and over-limit liquid level alarm functions.

6. The air-drying device acts on the cleaned PCB A board through the fan to make the surface dry quickly.

7. The motors of the wet cleaning module and the dry cleaning module are independent, and the speed can be adjusted independently. The height can be adjusted independently.
