YSL-HD330 Automatic High Speed High Precision SMT PCB Dispensing
Machine
Introduction:
As functionality and performance increase in the electronics field,
there is an increasing need for finer and more precise coatings.
The HD series machine is a micro-volume, high-speed, high-precision
machine that meets the core requirements of artificial
intelligence, Internet of Things, CASE, blockchain and other 5G
technologies that change life and social fields.
Top advantages:
1. Quickly customize a dedicated platform according to customer
needs;
2. By measuring any three points on the PCB, the plane height is
calculated, and the needle height is automatically compensated
based on the measured height data;
3. Efficient image processing speed reduces visual retrieval and
visual inspection time;
4. Non-contact laser can detect 1μm warpage of the substrate;
5. High-speed micro-spraying of high-viscosity materials, automatic
correction and compensation of chip cutting and welding errors;
6. Solder paste printing, small amount of high-speed dot spraying,
small dot spacing.

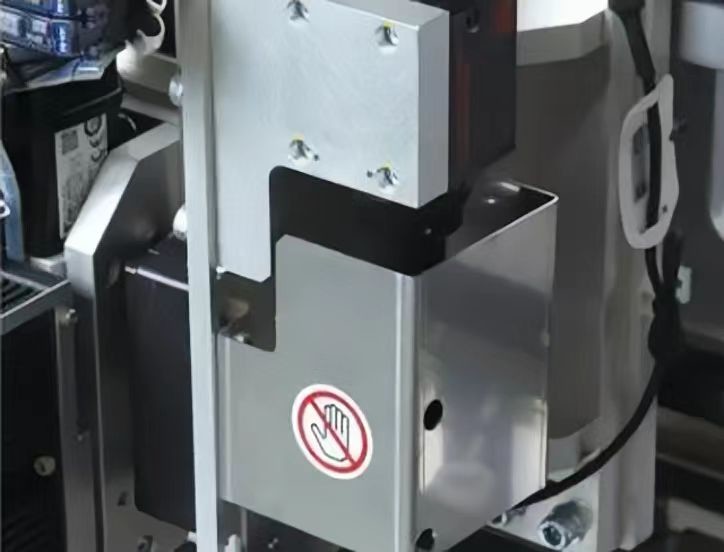

1. The machine adopts X Y linear motor drive control, the
reciprocating position accuracy is 3σ±5um (X, Y, Z axis ), and the
dynamic position accuracy is 3σ±3um (X, Y axis);
2. Load-type gantry structure ensures the stability and accuracy of
the machine during high-speed movement.
1. Customize the exclusive platform to better suit the actual needs
of customers;
2. Automatic correction of substrate warp height;
3. Penetration monitoring function, with upper and lower dual
cameras, can monitor the material penetration under the flipchip in
real time throughout the process, and automatically feedback to
adjust the next filling.
Specifications:
| Model | YSL-HD330 | Max PCB size | 50*70~250*330mm |
| Drive | Linear motor | Acceleration | 1.5G |
| X / Y repeatability precision-3 sigma | ±5μm |
| X / Y max speed | 1500mm/sec |
| Picture processing | Repeatability | ±1μm |
| Precision | MAX:0.03sec/point |
Height measure
system(Laser
Type) | Repeatability precision | ±1μm |
| 0.1sec/point |
| Power | AC200V,3φ,20A | Dimension | 1300*1100*1380mm |
