| PERFORMANCE | FACILITIES REQUIREMENT |
| Machine Alignment Capability | 2 Cmk @ ± 12.5 microns 6 sigma | Power Supply | AC220V ± 10% 50/60Hz |
| Process Alignment Capability | 2 Cpk @ ± 20 microns 6 sigma | Power Consumption | 3kW |
| Core Cycle Time | < 8.5 secs | Air Supply | 4 ~ 6Kgf/cm² |
| (excluding printing & cleaning time) | Air Consumption | 5L/min |
| Product Changeover Time | < 3 mins | Dimension (excluding signal tower) | 1,240mm (L) x 1,410mm (W) x 1,500mm (H) |
| New Product Set-up Time | < 10 mins | Machine Weight | 1,200kg |
| BOARD HANDLING | OPERATOR INTERFACE |
| Max. Size (L x W) | 510 mm x 510 mm | Hardware | LCD Monitor, Mouse & Keyboard |
| Min. Size (L x W) | 50 mm x 50 mm | Operating System (OS) | Windows 10 |
| Thickness | 0.4~6 mm | Control Method | Industrial PC controlled |
| PCB Thickness Adjustment | Automatic | I/O Interface | SMEMA Standard |
| PCB Max. Weight | 5 kg | OPTICAL SYSTEM |
| PCB Edge Clearance | 3 mm | Field-of-View (FOV) | 10mm x 8mm |
| PCB Bottom Clearance | 23 mm | Fiducial Types | Circle, triangle, square, diamond, cross |
| PCB Warpage | Max. 1% diagonally | Fiducial Size | 0.5~4.0 mm |

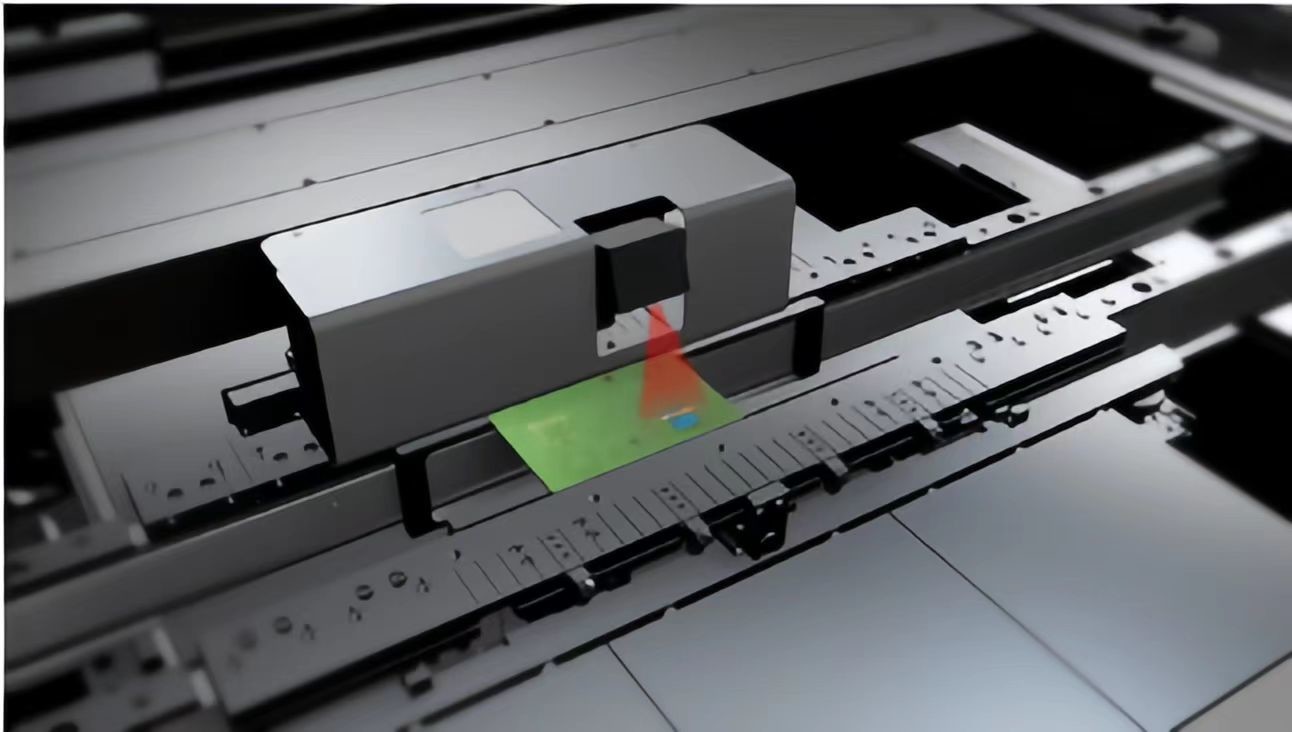

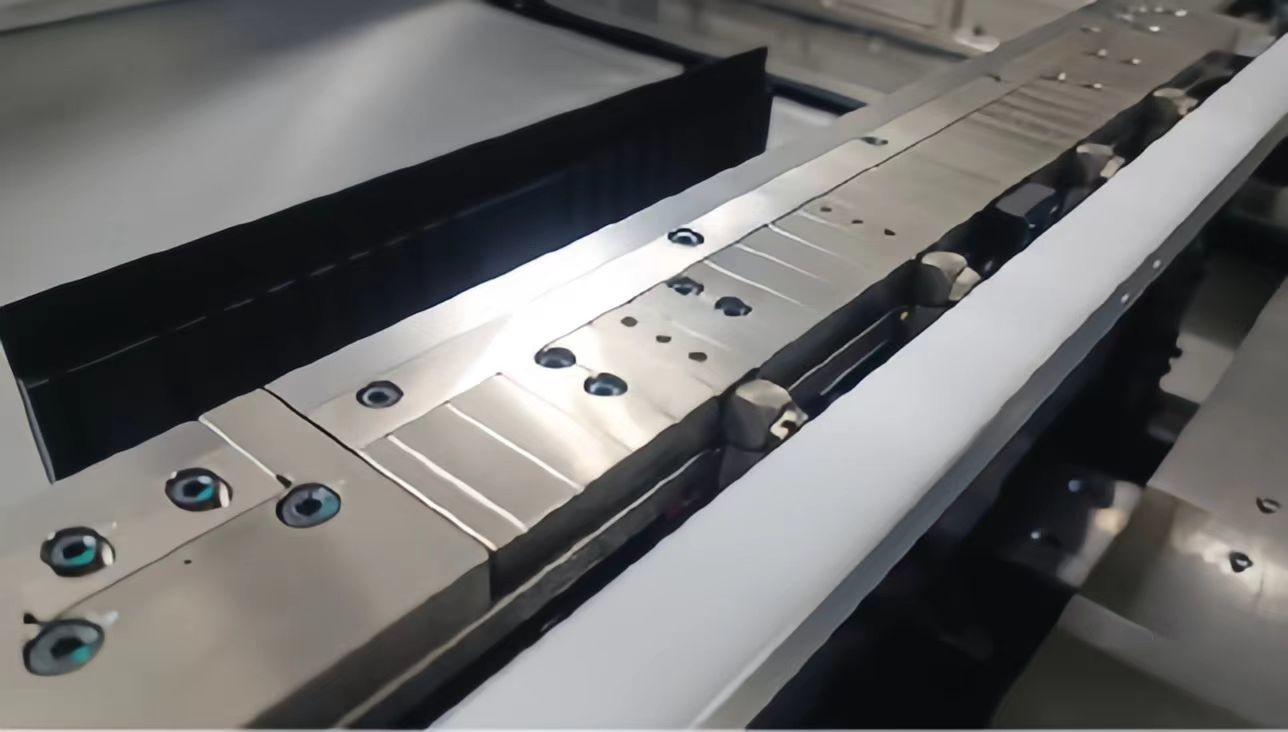

| Clamping Method | Auto retractable top clamp, motor controlled side clamp | Vision Methodology | Digital CCD camera look up & down |
| Support Method | Magnetic support pins, bars, blocks, vacuum suction | 2D Inspection | Max.100 windows to inspect missing & insufficient (std.) |
| Conveyor Direction | L to R, R to L, R to R, L to L | STANDARD FEATURES | |
| (software control) | Industrial PC control with Window 10 OS | |
| Conveyor Height | 900 ± 40 mm | Support Block Hit Prevention System | |
| Conveyor Speed | 1,500 mm/s | Retractable top clamp, motorized side clamp | |
| Conveyor Width Adjustment | Automatic | Printing Table Vacuum System | |
| PRINTING PARAMETERS | Auto table / PCB thickness adjust | |
| Stencil Frame Size (L x W) | Adjustable, 470 mm x 370 mm to 737 mm x 737 mm | Stencil Lock | |
| Print Gap (snap-off) | 0~20 mm | Stencil Y-Memory | |
| Printing Table Adjustment Range | X: ±10 mm, Y: ±10 mm : Θ ±2° | OPTIONS | |
| Print Speed | 10~200 mm/s | SPI closed-loop | |
| Squeegee Pressure | 0.5~10kg (program control) | Auto glue dispensing | |
| Squeegee Type | Std.: Metal Squeegee 280 mm, 350 mm & 520mm. Opt.: Rubber | Temperature, humidity monitoring & display | |
| Squeegee Angle | Std. 60°, Opt. 45°, 50°, 55° | Internal/External barcode scanner for PCB traceability | |
| Cleaning System | Auto wet, dry, vacuum (Software select) | Handheld barcode scanner for stencil, solder paste, squeegee
traceability | |
| | MES system integration (For Ind. 4.0) | |
| | 2 machines in series for higher output | |
