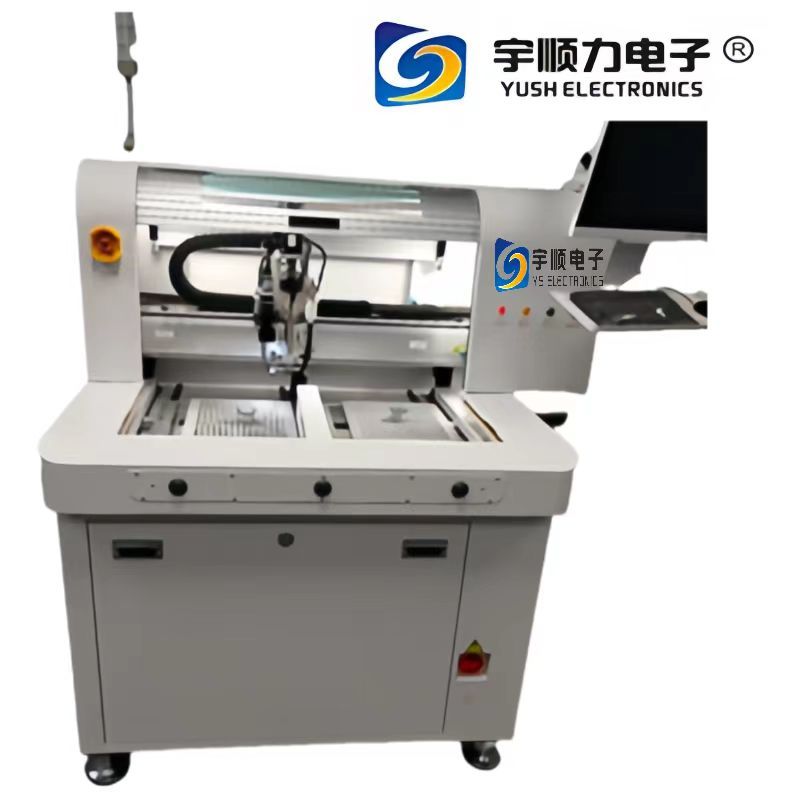

| Technical parameters of MT-2100
four-axis gong board machine |
| Project | MT-2100(Offline) |
| Table size | Effective cutting size of single table | 350*350mm |
| PCB thickness | 0.3~3.5mm |
| Electric | Power supply | AC220/380V50/60HZ three-phase |
| Compressed air | 0.4-0.6 MPA(filter included) |
| Control | OS | Chinese Version or English Version Optional |
| Software control mode | PC+ industrial control system control |
| Programming Type | Computer programming, AOI whole board scanning editing modification
program faster and more accurate |
Alert
| Three-color sound and light alarm (normal operation, waiting for
test, fault alarm) |
| With fault alarm: unstable air pressure, blocking, collision |
| safety production | Can generate order mode production, four level password protection
(automatic, manual, sensor protection, etc.) |
| Technical index | Statistics | Both the left and right side have the function of counting the
number of sub-boards |
| Information management function | Support MES information system, achieve seamless connection between
equipment and information management, open Ethernet interface, and
support TCP/IP network communication protocol, and necessary
related software and programs; Open BAR CODE function port free of
charge. |
| X.Y,Y2,Z, axis drive mode | Servo motor + screw, guide rail |
| Table output mode | Servo motor + screw, guide rail |
| Segmentation | The left and right table can be divided into different products at
the same time |
| Partition height | The left and right table can be divided into different products and
different heights at the same time |
MARK ink dot recognition
| MARK points of different shapes can be recognized, and MARK points
can be freely set before each division |
| LED aperture | LED aperture brightness can be adjusted in the software |
| LED Explosion-proof energy-saving lamps | domestic |
| PCB Positioning and adjustment methods | Universal fixture, positioning PIN, fixture |
| Milling cutter diameter range | 0.8-3.0mm |
| Milling cutter tool management | The software can automatically adjust the height according to the
thickness of the PCB board and the length of the milling cutter to
extend the service life of the milling cutter |
| The tool detection function is optional |
| MES abutment | Enable the MES interconnection port function |
| BAR CODE scan | Enable the BAR CODE port scanning function |
| Cutting speed | Adjustable from 0-100mm/S per second |
| Number of work platforms | Two tables |
| Monopolar Cut | Can cut straight line, arc, L shape, U shape |
| Cleaner Mouse | Vacuum pressure real-time monitoring |
| Trouble shooting | The software detects points of failure, has I/O port detection
capabilities, and has detailed alerts |
| Location, response time | We have offices in Dongguan, Shenzhen, Shanghai, Huizhou, Jiangsu
Kunshan, Chongqing, Chengdu, Guizhou, Tianjin and above cities. |
