Wave Soldering Machine For PCB YSL-W2 YSL-W3 YSL-W4
Introduce
TOP Advantage:
Simple: combined with advanced international concepts, based on the
Oriental-designed operating system, easy to understand, easy to
learn, easy to maintain.
Expertise: learn imported reflow oven’s advanced design concepts,
and the components are using imported top brands.
Hedging: Import hardware configuration,low failure rate in
production,more than a decade service life.
Safety: Based on the general rules of international design, close
to imported reflow rating, the highest security level.
Stable: mature software, hardware and top production processes
ensures stability of each equipment.

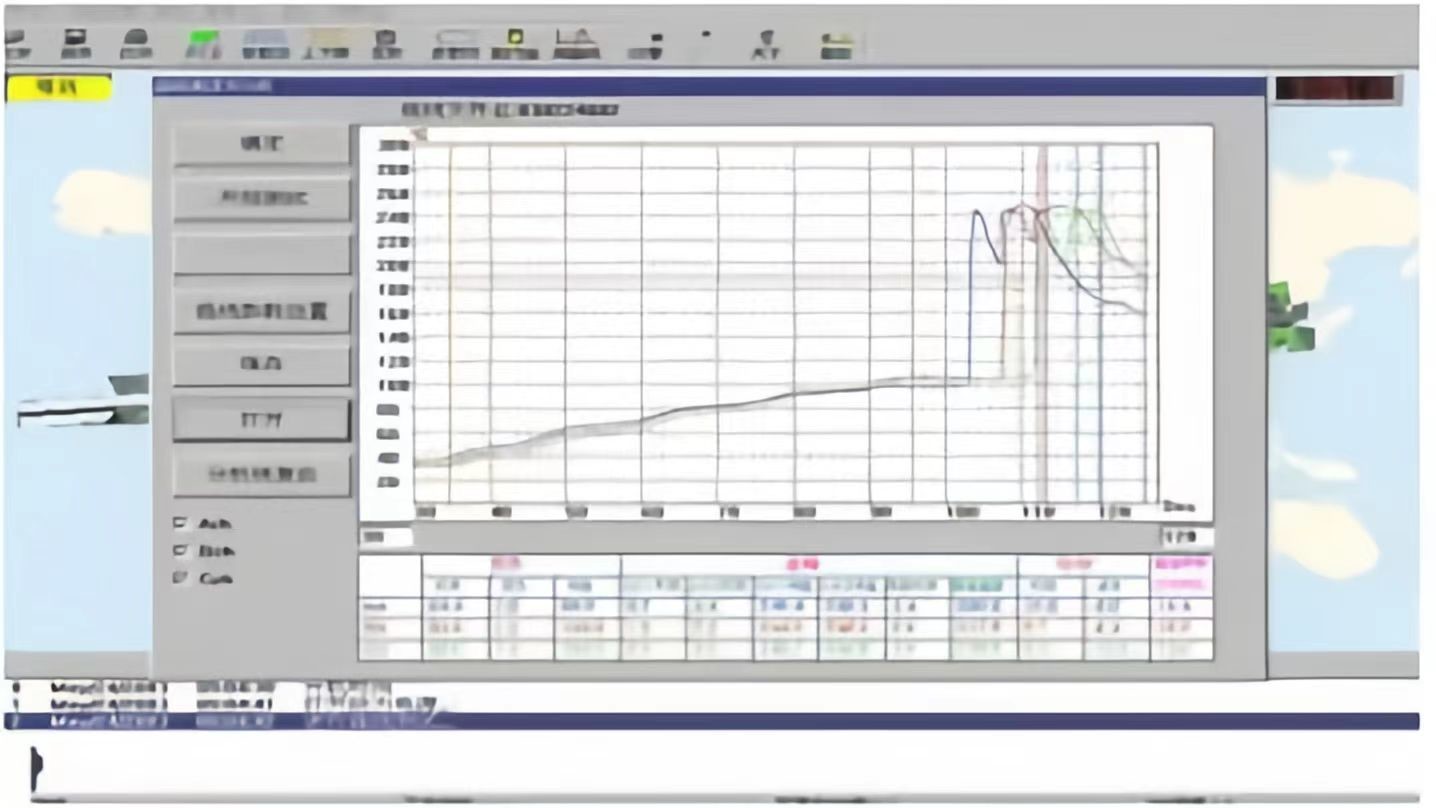

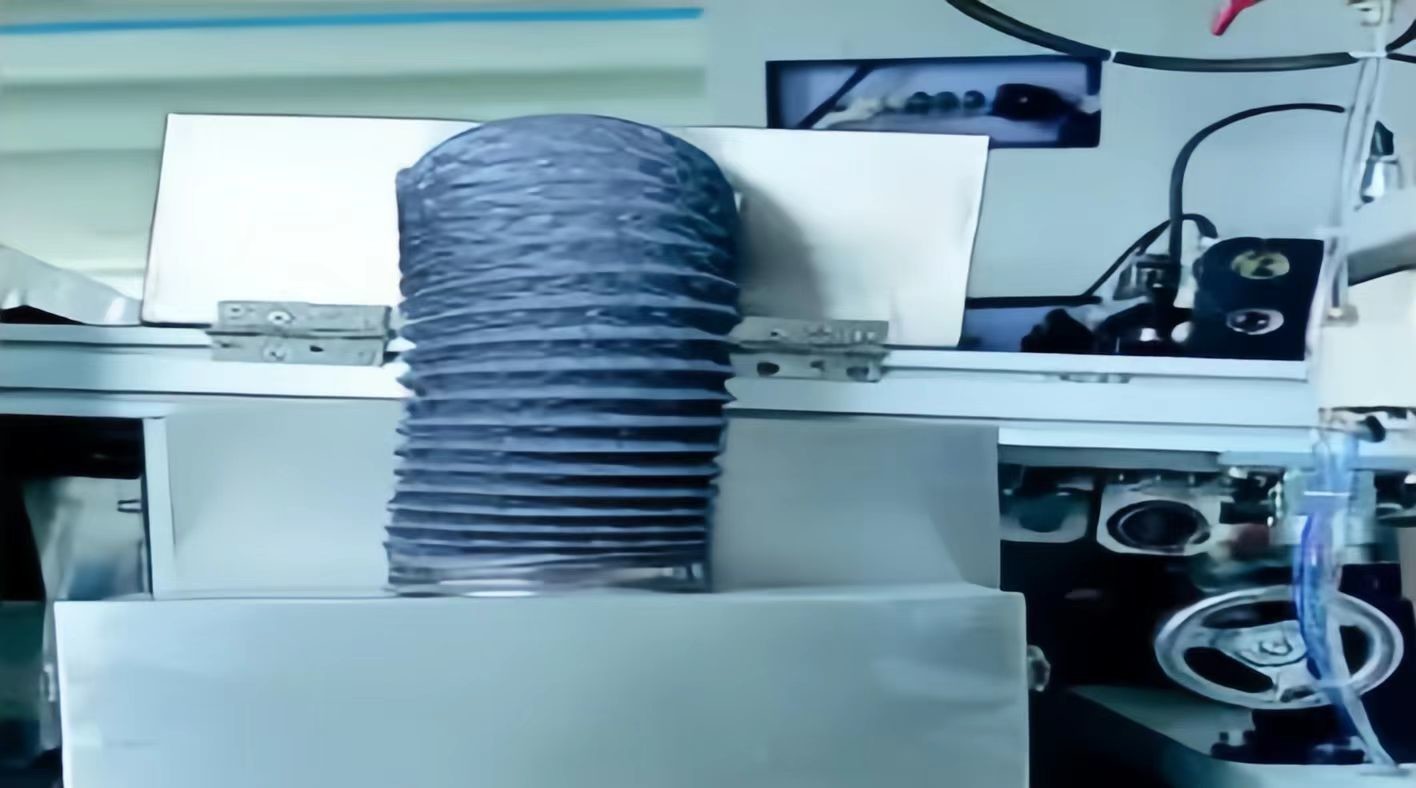

1,Temperature curve and spray nozzle
2,Chamber and high temperature parts
3,Solder Pot
Specification of Wave Soldering Machine
| Model | YSL-W4 | YSL-W3 | YSL-W2 |
| Dimension:(mm) | 4200X1250X1500 | 3600X1250X1500 | 2900X1160X1500 |
| Weight(kg) | Approx.1500kg | Approx.1200kg | Approx.790kg |
| Power Supply | 3P5W.380/220V 50Hz | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz |
| Startup Power | 32kw | 24kw | 16kw |
| Operation Power | 12kw | 9kw | 7kw |
| Control System | Touch Screen +PLC |
| Spray System |
| Transmission Method | Step motor |
| Spray Pressure | 0.25Mpa--0.4Mpa |
| lux flow | 10--100ml/min |
| Exhaust Diameter | ф200mm |
| Exhaust Capacity | 25m3/min |
| Preheating System |
| Preheating Mode | Hot air |
| Control Mode | PID+SSR |
| Preheating Zone | 4 | 3 | 1 |
| Preheating Length | 1800mm | 1600mm | 900mm |
| Preheating Temp. | (Room Temperature)-250℃ |
| Warm-up Time(min) | Approx.15min (setting 150°C) |
| Conveyor System |
| PCB Width: | 60~350mm |
| Conveyor Speed | 0-2000(mm/min) |
| Conveyor Height | 750+/-20(mm) |
| Finger | Double hook claw (Standard) |
| Conveyor width control | Manually |
| Conveyor Angle | 4~7degree |
| Soldering System |
| Solder Pot style | Mechanical Motor drive |
| Solder Pot Material | Full Titanium (Standard FT) |
| Solder pot temperature | 300°C |
| Solder pot capacity | Lead-free 350kg | Lead-free 300kg | Lead-free 250kg |
| Other |
| Finger cleaning system | Brush |
