Unloader for long board LED Lighting Used for unloading LED bear
board of the line Weight 500KG
Vacuum Bare Board Loader YS-390
Features
- User friendly sof touch LED membrane control panel
- Self diagnostc Error code display
- Especial extra length to accommodate long PCBs
- Single inlet/outlet for Triple magazines
- Pressure regulated pusher to prevent board damage
- Conveyor height 950±30mm
- SMEMA compatble
Options
- Automatc width adjustment
- Mechanical Stopper
- Touch Screen
- Diferent belt width and chain system
- Safety interlocker
- Speed control

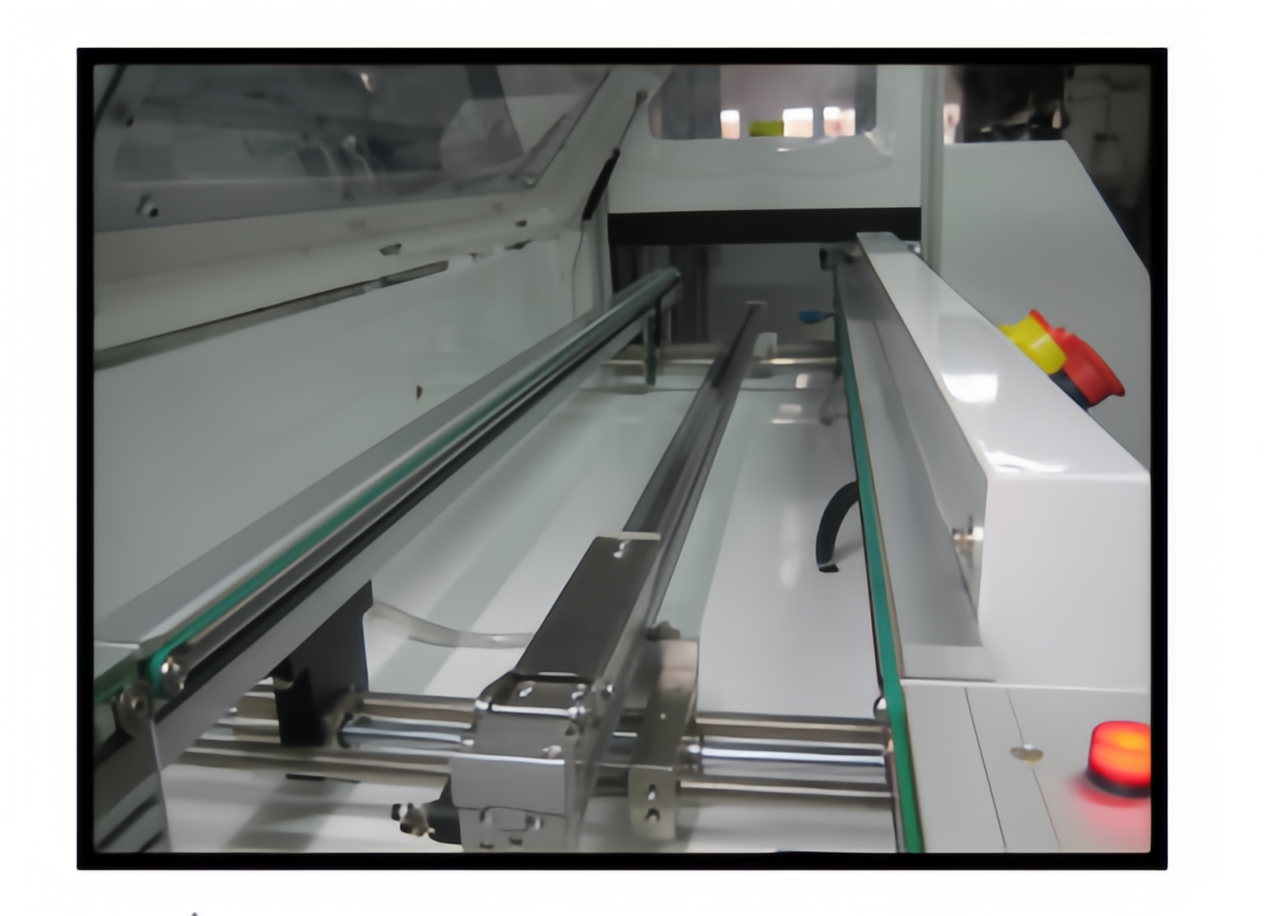

Long entrance conveyor

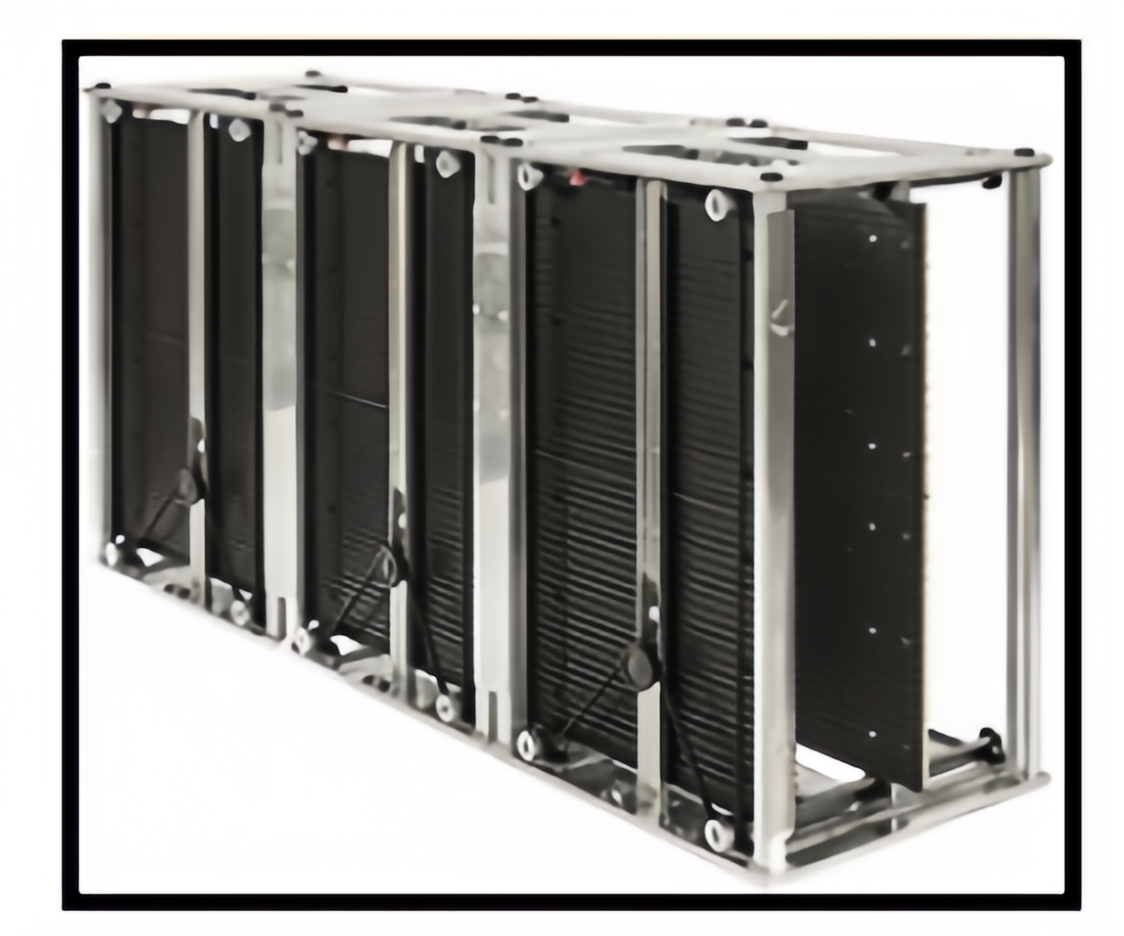

Makes Use for Triple magazines(magazines not inclued with machine)
Technical Parameters
| Description | These units are used for unloading LED bear board of the line when
it’s not possible to use a normal unloader |
| Max. PCB Capacity | 250mm space for boards |
| PCB Time Feed | Approx. 10 seconds |
| Power Source | AC 220V, 50/60Hz, 1 phase |
| Power Consumption | 300Max |
| Air Pressure & Consume | 4-6 bar, 30 I/min Max. |

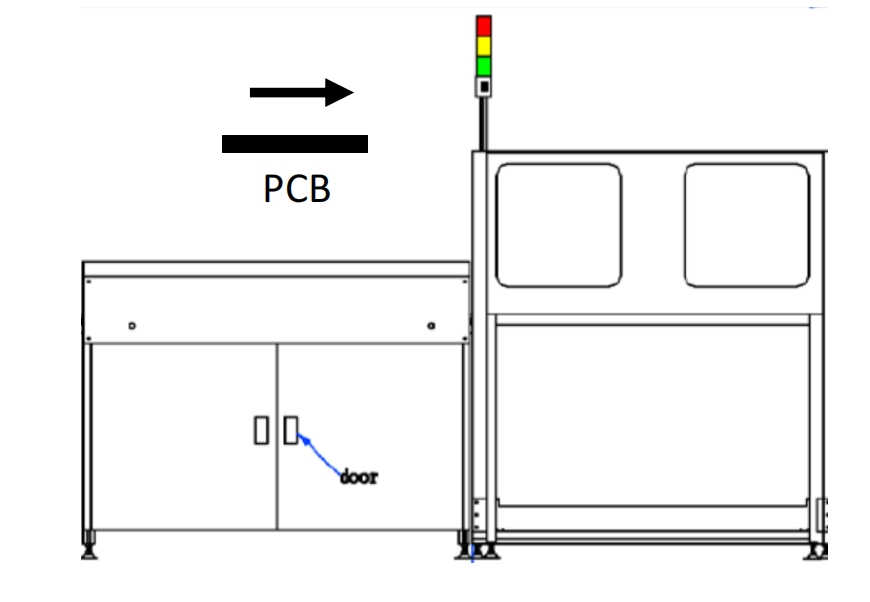

Schematic
Specifcaton Units in mm
| Size | Model | Machine Dimensions (L*W*H) in mm | Rack size (L*W*H) in mm | Effective PCB Size (L*W) in mm | Weight(kg) |
| L | YS-450 | 3450*1600*1716 | 1200*380*563 | 80*80-1200*300 | 500 |
