Competitiveness
1.Constantly innovating and advancing with the times to ensure that
the performance of our machines is at the top level in the
industry;
2.User-friendly operation design, simple and convenient operation,
and low requirements for operators;
3.The professional team has been research for many years, with stable
and reliable operation and high software compatibility.
4.The price is open and transparent, and high cost performance.
Company Introduction
YUSH Electronic Technology Co.,Ltd is a company specializing in the manufacture of high precision
laser cutting machines,we have an excellent technical team,which has many years of experience in laser application.Our
software is self-developed, to ensure we can provide world-class
products and services!!The main representative models machine are: SMT laser template
cutting machine, gantry template cutting machine, LDS laser
equipment. The company implements the principle of customer
first,Advance with the times and actively innovate.The customer's
requestalways the first,Constantly innovate to adapt to the
market,Make sure that every customer who chooses us always enjoys
world-class laser application services. Our equipment has a wide
range of processing and manufacturing .Can high-precision cutting
for stainless steel, silicon steel sheets, silicon steel sheets,
titanium alloys, copper, aluminum, ceramics, etc. Also precision
machining materials commonly used in too.Greatly ensure our
customers have strong resilience and competitiveness in the market
for a long time.
Can high-precision cutting for stainless steel,carbon
steel,galvanized sheet, silicon steel sheets, silicon steel sheets,
titanium alloys, copper,brass, aluminum, ceramics, etc.

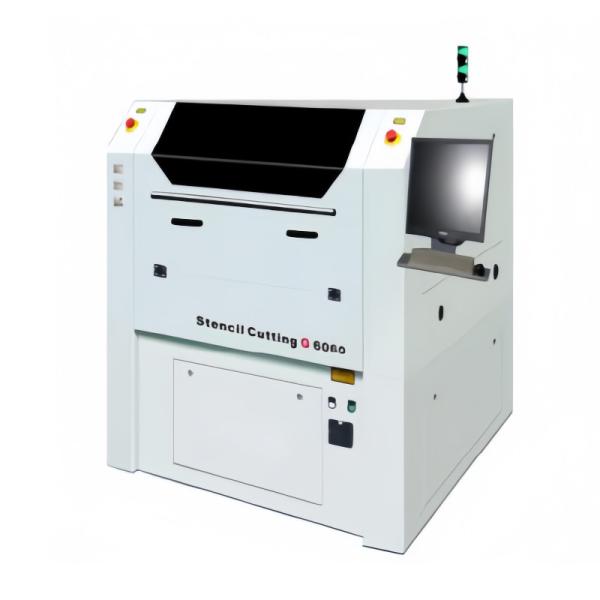

SMT STENCIL LASER CUTTING MACHIANE:Specifications&Parameters.
Model | YS-G7080 |
IPG Fiber Laser Power | 200w |
Cutting Speed | 15000-30000pads/h |
Cutting Area | 700*800mm |
Cutting Thickness | 200w≤1mm |
Cutting Accuracy | ±0.005mm |
Repeatability | ±0.002mm |
Operating Software | HK Studio |
Data Format | DXF/PLT/CNC/LMD ect. |
Machine Size | 1480*1840*1500mm |
Machine Weight | 2600kg |
Input Power | AC220V/3KW |
Auxiliary Gas | Oxygen/Compressed Air |
Gas Pressure | Oxygen 1.0Mpa/Compressed Air 1.6Mpa |
Temperature | 22±2℃ |
Humidity | ＜60% |
Laser Wave length | 1070nm |
Beam Quality | M²<1.1 |
Cutting Acceleration | 2G |
Note:The above model laser power can be ordered according to customer
needs.
Machine Accessories:
1)Exhaust fan - 750W
2)Stretch SS sheet Fixture- Manufacture by Latech. 3)Stabilizer -
5KVA - 200 V
Standard Laser beam spot is 0.03 mm,and it minimum aperture cutting
is 0.03mm.(0.018mm for optional now) Maximum loose sheet size
(Clamping X) - 780mm
Servo drive automatic fixture - YES
IPG fiber laser lifespan:more than 100000 hours.
SMT steel mesh cutting
Conventional SMT stencil cutting, based on high precision, high
cutting speed and
high stability, the G6060 series can reach 15000 holes per hour
under the premise
of ensuring cutting quality.
SMT IC cutting
The IC part of the conventional SMT cutting is magnified 100 times,
which mainly
reflects the performance of the machine cutting arc and straight
line.
Circular Mark
The cutting effect diagram of the circular Mark point after
amplifying one hundred
times mainly reflects the ability of the machine to hit the Mark
point.
Microporous technology
The micro-hole technology is to quickly punch 0.02-0.06mm very
small holes on the
steel mesh, and the punching speed can reach 80,000 holes per hour
(about
50,000-100,000 micropores in the area of the picture), which is
mainly used in
the screen processing industry.
Precision cutting
High-precision steel sheet cutting, steel sheetthickness of 0.08mm,
the line width
can be seen in the drawing is about 0.1mm, in such a thin
thickness, the cutting
hole is tight and the steel sheet is not deformed, mainly
reflecting the machine
cutting. High precision and stability.
Precision cutting
Precision cutting of steel sheets with a thickness of 0.1mm, the
width and spacing
of the middle strips are 0.05mm, which also ensures that the
thermal deformation
of the intermediate grid is within the required range.
Precision cutting
Round high-precision cutting, the main feature of this type of
product is that
there are many arc-like holes, and the outer ring has a circle of
scale-like grid
to ensure the concentricity of the circle and the precision of the
diagonal cutting.
Thick steel plate cutting
Stainless steel cutting with a thickness of 2mm can easily
guarantee cutting quality
and precision in thick plate cutting.
Aluminum sheet cutting
The aluminum plate with a diameter of 130mm and a thickness of
1.3mm is processed.
The aluminum plate has a high reflectivity to the laser and can
process 1.3mm aluminum
plate, which also reflects the wide applicability of the machine.

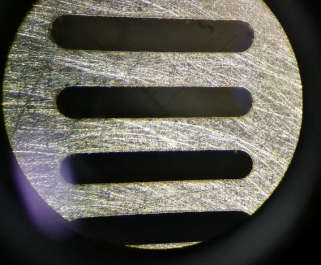

Cutting effect under high power microscope
Wall effect under a 300x microscope
Wall effect under a 1000x microscope
◆It use iron core linear motor and double driver structure, large
thrust, maximum acceleration can reach 2.0G, ensuring precise
movement of machine under high speed.
◆Imported IPG fiber laser, stable output power, long life,
maintenance-free, smooth hole processing, and ensure the stability
of the processing process.
◆Using imported drives from the US, high-end adjustment and tuning
algorithms greatly improve cutting performance and ensure machining
accuracy
◆The whole machine uses natural marble as the base structure, which
is safe and stable.
◆Equipped with a high-precision grating full-closed loop system for
real-time feedback to reduce repetitive positioning errors.
◆Low energy consumption, the power consumption of the whole machine
is about 2.5KW/h.
