Fully Automatic Solder Paste Printer

Specifications

1.Equipment Dimension Diagram

Equipment Size:1970*1210*1509mm

Image and optical system

Using uniform ring light and high brightness coaxial light, with promise brightness adjustment function, then all types of Mark points can be well recognized (Including the rugged Mark points), applicable for tin plating, coppering, gold plating, tin spraying, FPC and other typesPCB with of different colors. With GKG patent mathematical model, able to ensure high accuracy

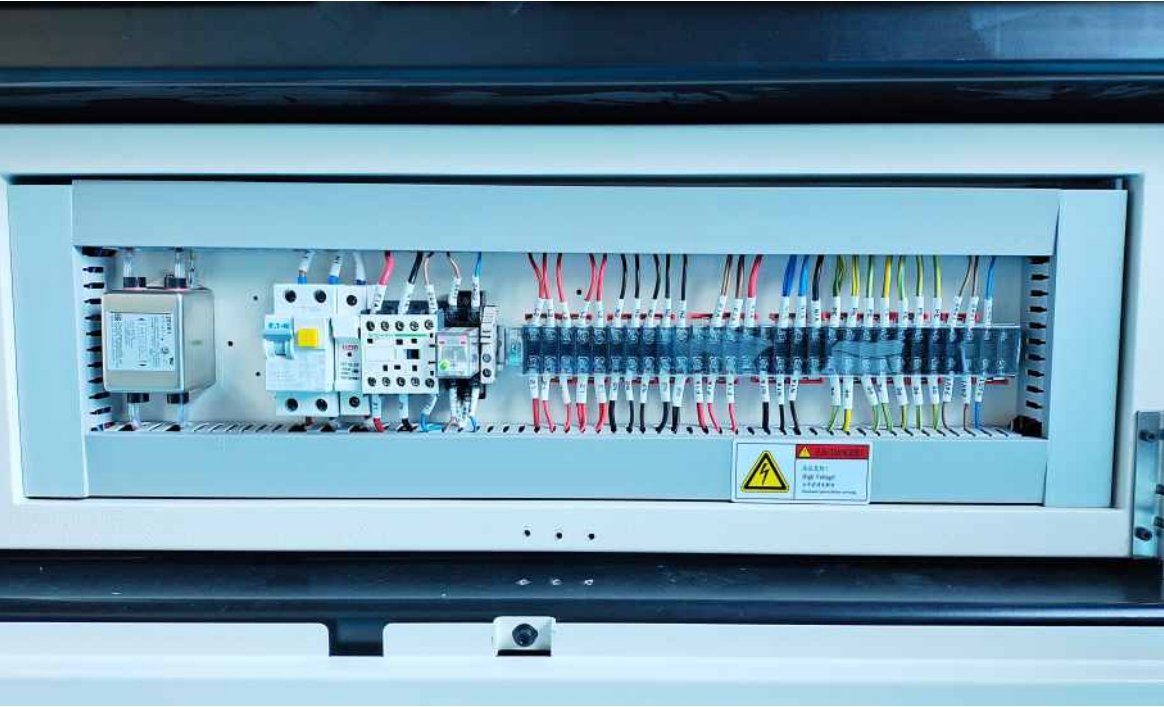

Electric Control System

Safe and tidy distribution of electric circuit and gas circuit Electric circuit and gas path are positioned vertically at the two sides and the back of machine, which is easy to check and repair.

Chinese/English Operating Interface

The machine adopts windowsXP/win7 operating interface with GKG user friendly software.Chinese/English selectable, Menu/Operating Journal/Breakdown Record/Breakdown Diagnosis/Error Analysis/Light Alarm etc

2D Solder Paste Print Quality Inspection and Analysis System

The 2D system immediately detects solder paste deposition defects such as deviation ,lack paste, miss paste ,paste joint etc, and guarantees print quality.

Adjustable Stepping Motor -Programmable &Floating Print-Heads

Unique long platform and track fixed design, to ensure stable support PCB.Short squeegee horizontal printing, pressure stability,save solder paste.
