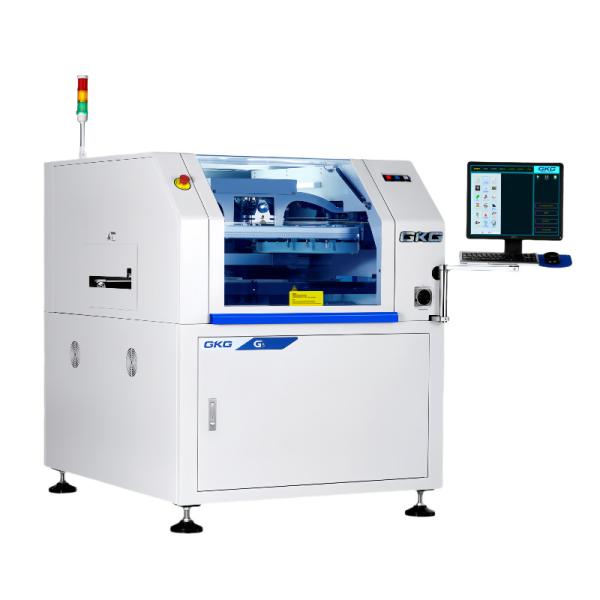

Fully Automatic Solder Paste Printer

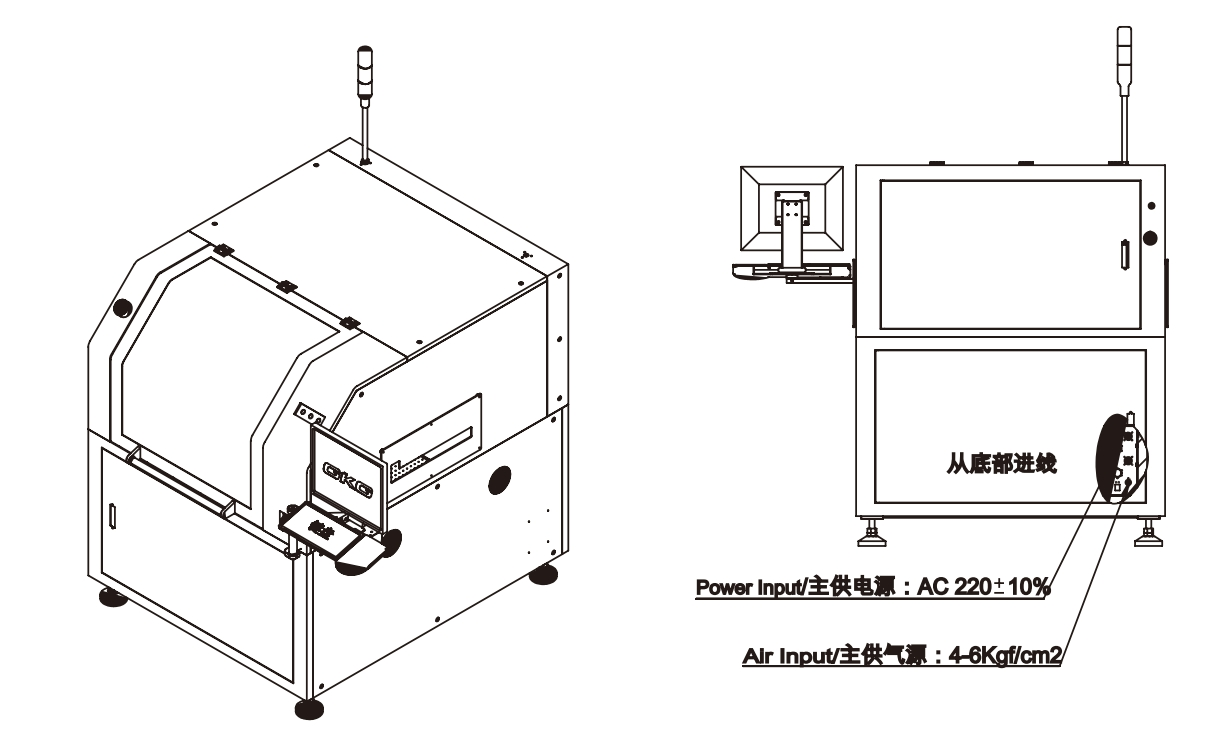

1.Equipment Dimension Diagram

Equipment Size:1140*1364*1404mm


1.Main power supply: AC: 220 ± 10%, 50/60HZ3KW stable power supply with rated current, plug type: British system.

The electrical interface is shown in the above figure:

2.Main supply gas source: An industrial gas source with a stable pressure of 4.0~6kgf/cm2. Tracheal diameter 6mm/8mm/10mm/12mm

Universal type for the front of the trachea, the rear joint only needs to match the size of the trachea

3.Machine Weight:Approx:900kg

2.Equipment usage environment

1. Workshop temperature: 20C~+45 ℃

2. Workshop humidity: 30-60%

3. Electrostatic protection: ESD grounding and electrostatic protection are required

4. Floor load bearing: If the equipment is not used on the ground floor, please pay attention to the floor load bearing capacity, which must be ≥ 650kg/m²
