YSV-7A
With Perfect CAM interface, it supports the mainstream of the
drilling and milling file format;
man-machine interface is friendly; optical path is sealed, and it
also has stable and reliable integration of compact structure; with
modular electronic control system, it ’s easy formaintenance.
Used in the procession of the soft and hard combination board (R-F
PCBA), including the FPC
soft board, soft and hard combination board, which greatly improve
the equipment adaptability and lower the price.
Can be integrated with the production line: gantry structure and
flight optical design, easy acc ess to the production line,
according to production requirements equipped with dedicated loa
ding and unloading and INLINE system to achieve full automation of
production, a substantial i ncrease in production efficiency, is
designed for FPC and PCB processing Tailored equipment.
PCB UV laser cutting machine application:
Used in cutting a variety of flexible circuit board materials and
cover film, clean and free carbonization;cutting rigid material
With high quality, high speed, the thickness of up to 1mm (0.04 ").
• Because the UV light is through decomposition and vaporization
rather than melting , almost no burrs left after processing.
• Thermal effect is small, no stratification but after cutting, the
cutting
edge is precise and smooth, and the sidewall is steep. Can cut a
variety of substrate materials, such as silicon, ceramics, glass,
etc ;
• Various functional film of precision etching forming.
• Efficient, fast FPC / PCB cutting, drilling and covering the
window,
fingerprint identification chip cutting, TF memory card sub-board,
mobile phone camera module cutting applications.
Basic specifications and technical parameters
|
Specification/model
|
YSV-7A
|
Laser head
|
SP (USA)
|
laser type
|
UV
|
Laser wavelength
|
355nm light wave UV laser
|
Max power
|
10W /15w/17W
|
Repetition frequency
|
1-250kHz
|
Worktable location precision
|
±0.003mm
|
Worktable repetition precision
|
±0.002mm
|
table reachition range
|
500mm*500mm
|
CCD location precision
|
0.005mm
|
Max working range
|
460mm*460mm (Larger area 620*620mm can be customized)
|
Beam spot size
|
0.015mm ± 0.003mm
|
Dimension(L*W*H)
|
1300mmX1150mmX1455mm
|
Weight(kg)
|
1500KG
|
| |
Laser machine supply power
|
AC220V / 3KW
|
Material thickness
|
≤ 1.0 mm
|
Machine accuracy
|
± 20 μm
|
Platform positioning accuracy
|
± 2 μm
|
Platform repeatability
|
± 2 μm
|
Focus spot diameter
|
20 ± 5μm
|
Ambient temperature / humidity
|
20 ± 2 ℃ / <60%
|
Machine main body marble
|
Galvanometer system CTI US original import
|
Motion System Full Closed Loop AC Linear Motor System
|
Motion Control System PMAC (Delta Tau)
|
Necessary hardware and software
|
Includes PC and CAM software
|
| |
No contact will not produce any mechanical stress and deformation.
Linear motor platform speed, high precision, low wear and tear,
easy maintenance, low maintenance costs.
Machine Feature:
Efficient, fast FPC / PCB cutting, drilling and covering the
window, fingerprint identification chip cutting, TF memory card
sub-board, mobile phone camera module cutting applications.
Block, delimit, specify block or select area cut and form directly,
cut edge neat rounded, smooth without burr, no overflow glue.
Products can be
arranged in a matrix for multiple automatic positioning cutting,
especially for fine, difficult, complex patterns such as the
appearance of cutting .High- precision CCD automatic positioning,
focusing, so that positioning fast and accurate, time-saving, high
efficiency, fast delivery.
High-performance laser: the use of international brands of
solid-state UV lasers, with a good beam quality, focusing spot is
small, uniform power distribution, thermal effect is small, slit
width is small, high cutting quality is the perfect cutting quality
assurance.
Fast and high precision: High precision, low drift galvanometer
with fast coreless linear motor system platform combination, fast
cutting while maintaining the high accuracy of the order of
microns.
Fully automatic positioning: the use of high-precision CCD
automatic positioning, high precision, without human intervention,
simple operation, to achieve the same type of one-click mode,
greatly improving production efficiency.
Exhaust gas treatment system: suction system can cut all the
exhaust gas to eliminate, to avoid the harm to the operator and the
pollution of the environment.
High degree of automation: galvanometer automatic correction,
automatic focus, full automation, the use of laser displacement
sensor automatically adjust the focus to the height of the table to
achieve fast alignment, time-saving peace of mind.
Easy to learn software: independent research and development based
on the Windows system control software, easy to operate the Chinese
interface, friendly and beautiful, powerful and diverse, easy to
operate.

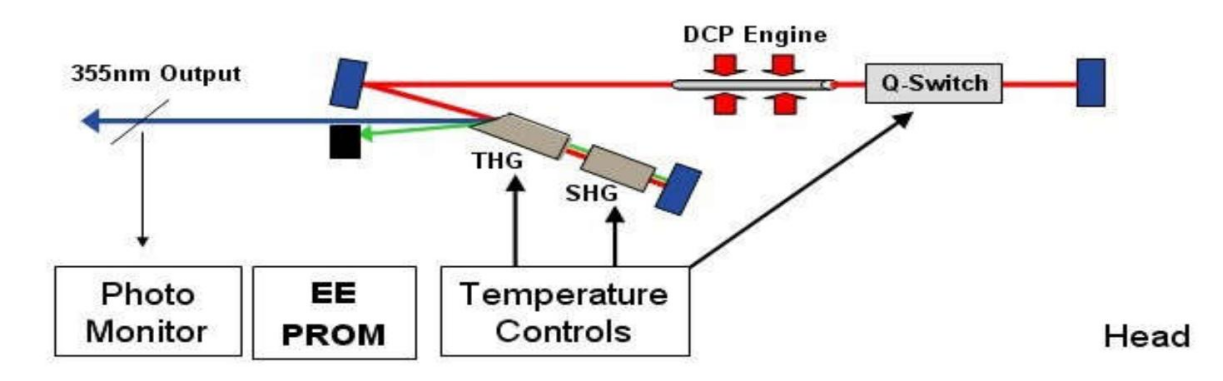

laser source
Using the United States imported UV shock Light, excellent optical
performance, long life, simple structure, easy to operate.
Thisbrand has been use for over 10years
.
CCD
High speed image acquisition system and High-precision image
positioning and matching system which ensures the High precision
