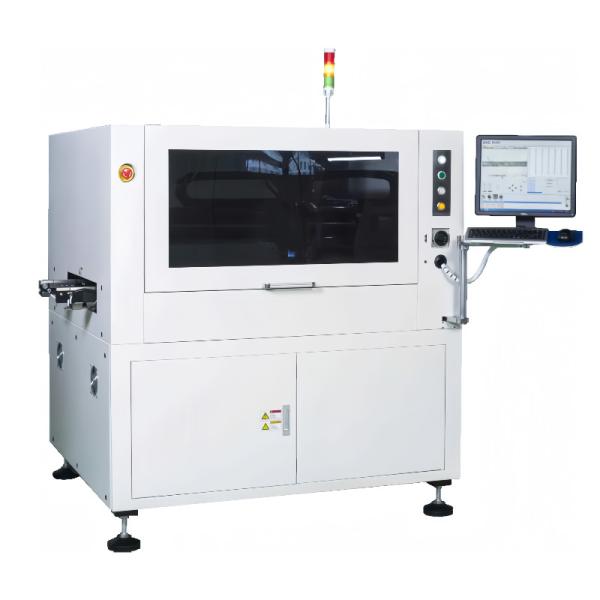

DLED series Full automatic on-line spray dispensing machine

Full digital control and processing system for

batch precise dispensing process

Specifications

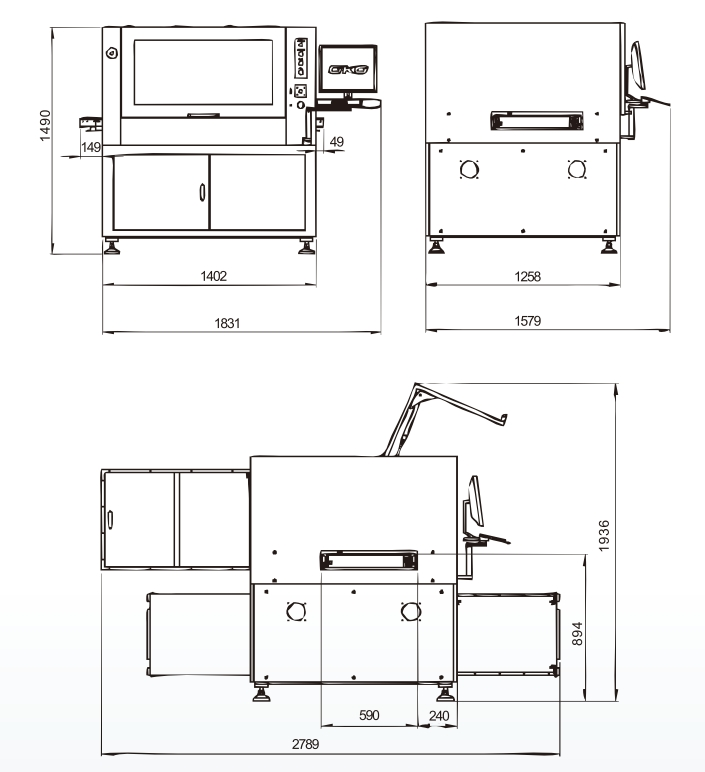

DIMENSIONAL APPEARANCE

Features and advantages

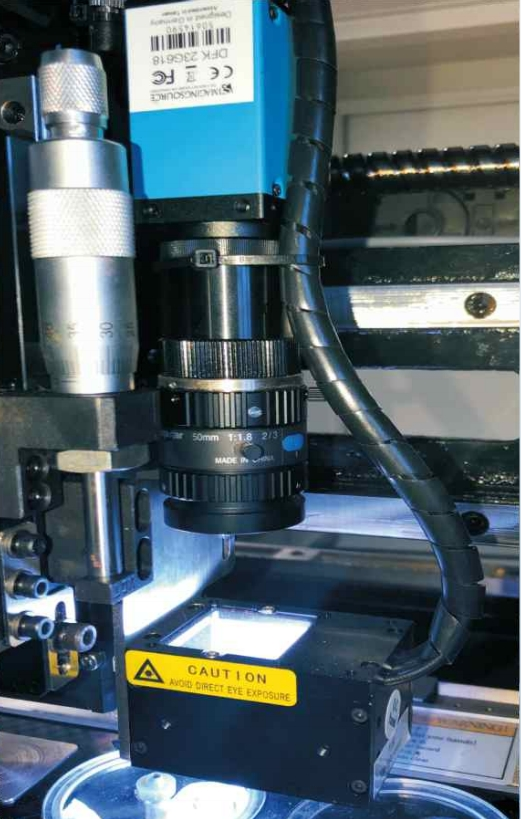

• New digital vision system, to achieve high-speed reference point capture;
• A section of dispensing can be completed 900mm, dispensing production capacity is improved;
• Automatic constant temperature, ensure the fluidity of paint consistent;
• Flight spray glue, the actual production capacity of about 50,000 points per hour;
• Unique transportation mechanism, to ensure the smoothness of the substrate and a stable dispensing environment.

Frontier technology

• Vjet integration has the spray process full digital China control and processing spray module technology, leading the injection dispensing technology to a new level;
• Compared with the traditional spray dispensing method is more suitable for the tight interval, smaller "non-contaminated area" condition dispensing requirements;
• The injection assembly makes the operation of the maintenance injection valve faster and easier, ensuring that the dispensing production is always maintained at the highest level.

Flexibility

• DLED series intelligent full digital dispensing platform can significantly reduce process error, reduce operation difficulty, increase output and reduce cost;
• The closed-loop process control function provided by the software controllable temperature, colloidal and gas pressure completely avoids the manual adjustment of the operator;
• With its flexible and upgradable features, the DLED series smart dispensing system can be upgraded to meet the dispensing requirements of the 1.5 m length PCB according to the user's product needs.

High added value

GKG has rich experience in research and development, manufacturing, sales and service in the precision automation equipment industry, involving smart phones, automotive electronics, medical machinery, LED and other fields, rich technology and process precipitation provides users with highly reliable production process and continuous technological innovation. From initial process development to full production, users will always be supported by our global engineering experience, application development and technical services network.

High reliability (Hi-Rel)

DLED software provides advanced yield, volume management and process control.

DLED provides multiple layers of operational control, providing engineers with a friendly user interface for program development while allowing operators to complete basic production operations. Use calibration process injection or flow control technology to ensure the repeatability of glue volume in long production to obtain better dispensing accuracy and process performance (CPK).

spray application techniques

Non-contact fully digital injection dispensing has many advantages compared with the traditional dispensing valve. Vjet jet valve using a high speed mechanical device, the precise amount of glue in the form of points, lines and graphics, its high flow rate up to 750 mg per second and 300 points per second, the jet technology to overcome the traditional jet valve unavoidable defects without scatter, debugging maintenance simple, not affected by the substrate deformation, so without pause can high speed spray.

TV Back Light Horseshoe board Mosquito coil
