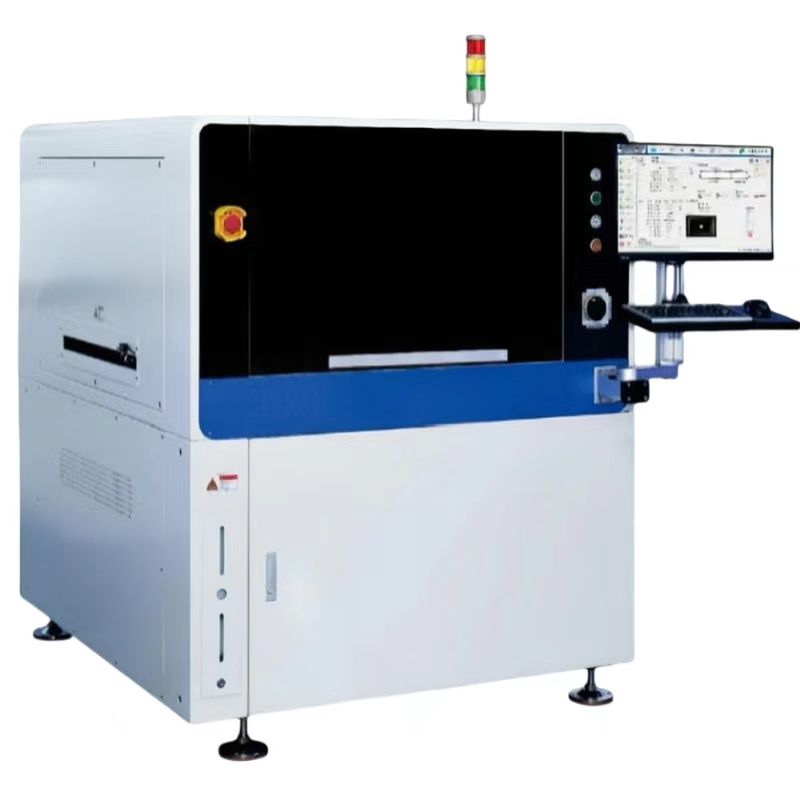

    2.2kw Fully Automatic Pcb Solder Paste Printer High Precisely

    Ask Lasest Price
    Brand Name : YUSH
    Model Number : YSL-E
    Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
    Price : USD12000
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 100sets
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

    2.2kw Fully Automatic Pcb Solder Paste Printer High Precisely


    Fully Automatic pcb solder paste printer


    Machine Performance
    Repeat Position Accuracy±12.5um@6o CPK≥2.0
    PrintAccuracy±22um@6o CPK≥2.0
    NCP-CT(Excluding cleaning and printing)<7.5 sec
    HCP-CT(Including cleaning and printing)19s/pCs
    Process CT5min
    Transfer CT3min
    Substrate processing parameter
    Maximum board size510*510mm
    Minimum board size50*50mm
    Board thickness0.4~6mm
    Camera Mechanical range510*510mm
    Maximum board weight5kg
    Board edge clearance2.5mm
    Board height23mm
    Transport speed900±40mm
    (Max)Transport speedSegmented control,1500mm/s(Max)
    Transport directionOne stage

    Transmission direction

    Left to right
    Right to Left
    In and out the same

    Support System

    65mm)Magnetic Pin
    (65mm) Support Block
    Manual Up-down table

    Board clamp

    Manual retractable upper tablet
    Side damping
    Adsorption function
    Printing Parameters
    Print Speed10~200mm/sec
    Print Pressure0.5~20Kg
    Print ModeOne/Twice
    Queegee TypeRubber/SqueegeeBlade (angle 45/55/60)
    Snap-off0~20mm
    Snap-Speed0~20mm/sec
    The template frame size470*370mm~737*737mm
    Steel mesh positioning methodAutomatic Y-direction positioning (compatible with manual compensation adjustment)
    Cleaning Parameters
    Cleaning SystemDry,Wet Vacuum three modes
    High speed cleaningweave cleaning
    Cleaning systemSide spray type
    Cleaning strokeAutomatic generation
    Cleaning positionPostcleaning
    Cleaning Speed10-200mm/sec
    Cleaning fluidconsumptionAuto &Manually adjustable
    Cleaningpaper consumptionAuto &Manually adjustable
    Vision Parameters
    CCD FOV10*8mm
    Camera type130 Thousand CCD Digital camera
    Camera SystemLock up/down optics structure
    Camera Cycle time300 ms

    Fiducial mark types

    Standard Fiducial Mark Shape
    round,square,diamond,cross
    Pad and profile
    Mark size0.3-6mm
    Mark numberMax:4pcs
    Stay away numberMax:1pcs
