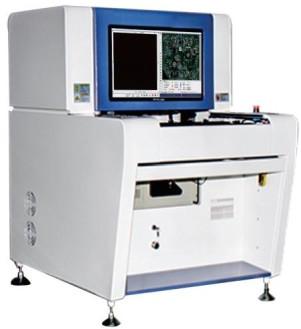

    Automatic Optical Inspection Equipment High Precision OFF Line

    Ask Lasest Price
    Brand Name : YUSH
    Model Number : YSL-A410
    Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
    Price : USD 16000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10 sets/ month
    Delivery Time : 7days
    • Product Details
    • Company Profile

    Automatic Optical Inspection Equipment High Precision OFF Line

    YSL-A410 Automatic Optical Inspection Equipment High Precision Online AOI


    PRODUCT FEATURES


    ● Economical and practical AOI
    ● High precision detection platform design
    ● Fast programming debugging integration
    ● Automatic recognize the Top and Bottom side
    ● Professional SPC system

    TECHNICAL PARAMETER

    CATEGORY


    ITEM


    SPECIFICATION

    Recognition System

    Inspection

    Using mutiple algorithmssynthetically such asWDM,Color Image contrast technoloqy,Color extracting technoloqy similarity two-value handling technology,OCR/OCVand so on

    CameraColor camera:20μm(15μm for Optical)

    Lamp-house

    Ring RGB LED flash lamp-house

    lmage Processing

    Speed

    0201 Chip

    <10ms
    Per-Image Time<170ms

    Inspection Items

    Paste Printig Defects

    Msaligned,overflow,insuffcient,pasting open,stain

    Componet Defects

    Missing,misaligned,skewed,tombstone,billboard,overturned,reversed polarity wrong,damaged

    SolderDefects

    Overflow,insufficient,short solder,stain

    Anti Static Measures

    Anti-static electric outlet,anti-static wreath

    Mechanism System


    PCB Size25*25mm - 480×330mm,Can customized size
    pCBThicknes0.5mm-5.0mm

    PCB Warp Tolerance

    ±2mm

    Component Clearance

    TOP<28mm,BOT<75mm

    Minimum Space Parts

    0201 chip(15μm)

    X,YPlatform


    DriverAC servosystem
    Accurate positioning<10μm

    Moving Speed

    700mm/s

    Soft System


    Operation System

    Microsoft Windows 7

    Controlling Recognizing

    Characteristics

    WDM,study OKtemplate,automatically set template imaging,identify data and error numerical value

    Operation

    Graphic programming,take along with chip library and get aninspection fame accordingwithchip shape,aureate postion,micron aajust,and easyprogramming


    Mark

    MarkNumbers

    0-2marks can be chosen

    Recognizing Speed

    0.5s/pCs

    Controller

    ComputerCPU:Intel dual-core,Memory:4G,Hard disk:1T
    Display222-inch TFT

    Others

    Machine Dimensions(L×WxH)

    868×1033×1340mm
    Weight~310kg

    PowerSupply

    AC220V±10%,single phase 50/60HZ,power consumption 600W

    Working Enyironment

    Temperature10-40℃,humidity 30-80%RH
