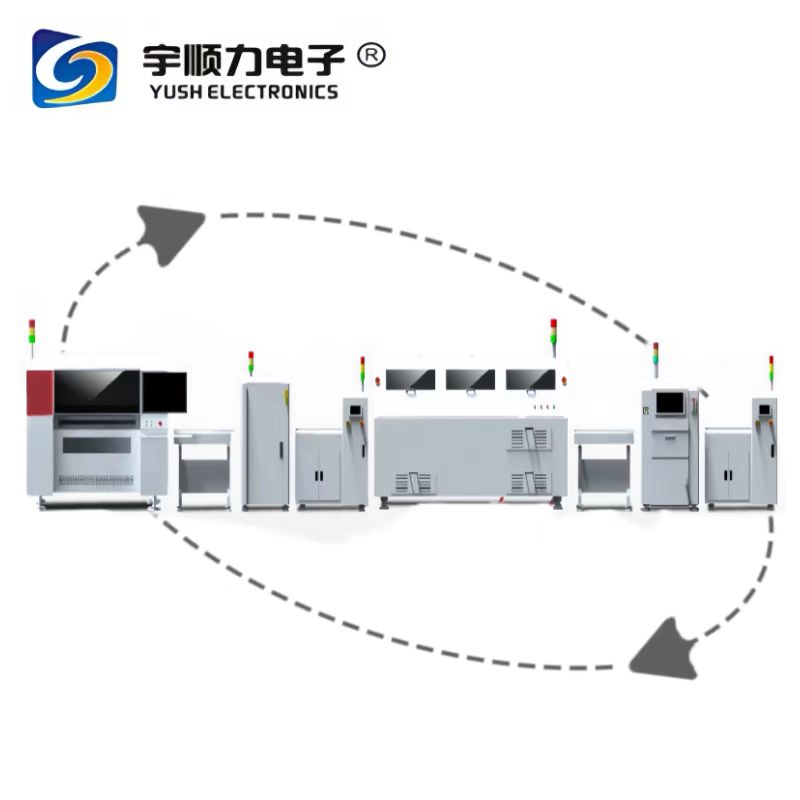

Inline High Speed Fully Automatic SMT Production Line For LED

    Buy cheap Inline High Speed Fully Automatic SMT Production Line For LED from wholesalers

    Buy cheap Inline High Speed Fully Automatic SMT Production Line For LED from wholesalers
    • Buy cheap Inline High Speed Fully Automatic SMT Production Line For LED from wholesalers

    Inline High Speed Fully Automatic SMT Production Line For LED

    Ask Lasest Price
    Brand Name : YUSH
    Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
    Price : USD380000
    Payment Terms : T/T, L/C, D/P, T/T, Western Union
    Supply Ability : 10sets
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Inline High Speed Fully Automatic SMT Production Line For LED

    Inline High Speed Fully Automatic SMT Production Line For LED


    SMT Stencil Printer

    ModelYSL-4034YSL-5151YSL-6561YSL-1500(LED)
    Frame Size(mm)470*370 ~ 737*737470*370 ~ 737*737470*370 ~ 850*850470*370 ~ 1800*750
    PCB Size(mm)50*50 ~ 400*34050*50 ~ 510*51080*50 ~ 650*61080*50 ~ 1500*350
    TransportDirectionLeft-Right; Right-Left; Left-Left; Right-Right
    Support SystemMagnetic Pin/Up-down table adjusted/support block
    Clamping SystemSide clamping, vacuum nozzle,Automation retractable Z pressure
    Printer HeadTwo independent motorised printhead
    Squeegee TypeStainless steel(standard),plastic
    Cleaning SystemDry, Wet, Vacuum
    Inspection2D Inspection(Standard)
    Power SupplyAC:220±10%,50/60HZ,3Kw
    Control MethodPC Control
    Dimension(mm)1220*1355*15001220*1530*15001330*1530*15002500*1220*1500
    WeightApprox:1250kgApprox:1300kgApprox:1300kgApprox:1800kg
    ModelYSL-5134YSL-6534YSL-1200(LED)
    Frame Size(mm)470*370 ~ 737*737470*370 ~ 737*737470*370 ~ 850*850
    PCB Size(mm)50*50 ~ 400*34050*50 ~ 510*51080*50 ~ 650*610
    Dimension(mm)1220*1355*15001330*1530*15002200*1200*1500
    WeightApprox:1250kgApprox:1300kgApprox:1500kg

    Reflow Oven

    ModelL8L10
    Dimension (L*W*H)mm5000x1250x14905800x1250x1490
    WeightApprox. 1600KGApprox. 1800KG
    Number Of Heating ZonesUp8/Bottom8Up10/Bottom10
    Length Of Heating Zones3121mm3891mm
    Rail Width AdjustmentM(option:A)
    Exhaust Volume10M3/minx2 Exhausts
    Control SystemPLC+Computer
    Temperature Control MethodPID + SSR
    Transmission AgentChain + Mesh
    Electric Supply Required3 phase,380V 50/60Hz
    Power For Warm Up55KW64KW
    Power Consumption8KW12KW
    Warming TimeApprox.25 minute
    Temp. Setting RangeRoom Temp.-- 300°C
    Conveyor Height900+/-20mm
    Conveyor Speed Range300~2000mm/mi
    Fixed Rail SideFront Fixed (Option:Rear Fixed)
    Cooling MethodForced-Air Motor and fan (Standard)

    Model622733
    Dimension (L*W*H)mm5040x1450x14505800x1450x1450
    Machine WeightApprox. 2200KGApprox. 2400KG
    Number Of Heating ZonesUp8/Bottom8Up10/Bottom10
    Length Of Heating Zones3030mm3730mm
    Number of Cooling Zones23
    Control SystemPLC+ComputerPLC+Computer
    Transmission AgentChain + MeshChain + Mesh
    Max.Width Of PCB460mm460mm
    Power For Warm Up45kw55kw
    Power Consumption8kw10kw
    Conveyor Height900+/-20mm900+/-20mm

    Company Profile

    YUSH Electronic Technology Co.,Ltd was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.
    Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YUSH have became one of the biggest PCB separator production base in China.

    FAQ


    1. who are we?
    We are based in Jiangsu, China, start from 2014,sell to Eastern Europe(20.00%),North America(20.00%),South America(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Western Europe(10.00%),South Asia(10.00%),Mid East(5.00%). There are total about 301-500 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    pcb depaneling,pcb separator,pcb cutting machine,PCB depaneler,v-cut machine

    4. why should you buy from us not from other suppliers?
    YUSH Electronic Technology Co.,Ltd.Was founded in 2004,is located in the world manufacturing city Jiangsu,Professional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experie

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery,DAF;
    Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
    Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
    Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,Korean,Hindi
